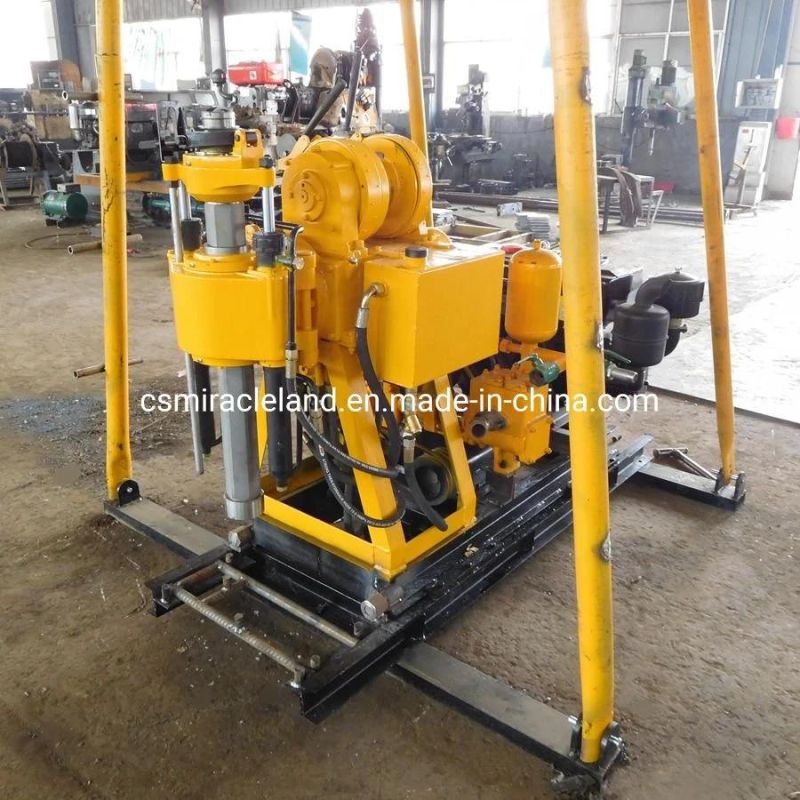

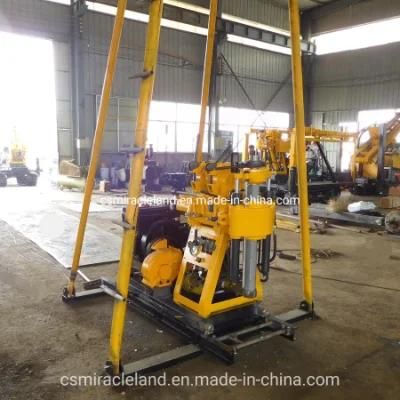

200m Deep Hydraulic Portable Movable Water Well Drilling Rig

Changsha Miracleland Import & Export Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：XY-200
  • Drilling Way：Rotary
  • Type：Vertical Shaft
  • Usage：Coal, Ore, Water Well
  • Name：Xy-200 Water Well Drilling Rig
  • Characteristics：Trailer Type
  • Configuration：with Mud Pump
  • Transport Package：in New Strong Plywood Case
  • Specification：200
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430490000
  • Production Capacity：20 Sets,Month

Description

XY-200Y Drilling Rig ParametersDrilling depth200mThe largest hole diameterφ75-φ325mmFinal hole diameter75mmActive drill pipe53/59*4200mmDrill rod diameterφ42-φ60mmDrilling inclination90°~75°Supporting power (diesel engine)14.7kW/r/minStructure weight / size2.7*0.9*1.5Vertical axisVertical axis speed64/128/287/557r/minVertical axis travel450mmHoistSingle rope lift force2500Single rope to enhance speed0.12-0.95m/sReel diameterφ140mmRope diameterφ12.5mmRope capacity35m
