• Model NO.：PA180, PA200, PA350, PA450
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Type：Rock Splitting Tools
• Power：16 HP, 22HP, 28 HP
• Weight：200kg
• Package Size：0.9*0.9*2.4m
• Water Pump Power：2.2kw
• Drill Pipe Dia：100~350mm
• Drill Pipe Length：Max 600m
• Free Pipe Length：3m
• Free Bit Diameter：Customer Requested
• Free Bit Quantity：2 Pieces
• Market：Africa, America, Asia, Europe
• Power Type：Diesel, Gasoline, Electric
• If OEM：Yes
• Delivery Time：8 Days
• Service：Online Service
• Transport Package：Wooden Box or as Customers Inquire
• Specification：PA200. PA300, PA400
• Trademark：PANDA
• Origin：Shandong China
• HS Code：8412299090
• Production Capacity：500 Sets , Week

Basic Info.

Model NO. PA180, PA200, PA350, PA450 Bit Type Diamond Bit Drilling Way Rotary Type Rock Splitting Tools Power 16 HP/ 22HP/ 28 HP Weight 200kg Package Size 0.9*0.9*2.4m Water Pump Power 2.2kw Drill Pipe Dia 100~350mm Drill Pipe Length Max 600m Free Pipe Length 3m Free Bit Diameter Customer Requested Free Bit Quantity 2 Pieces Market Africa, America, Asia, Europe Power Type Diesel, Gasoline, Electric If OEM Yes Delivery Time 8 Days Service Online Service Transport Package Wooden Box or as Customers Inquire Specification PA200. PA300, PA400 Trademark PANDA Origin Shandong China HS Code 8412299090 Production Capacity 500 Sets / Week

Product Description

Product Description:

PANDA DTH drilling can be performed in almost any rock drill-ability category. It is a common drilling equipment in the natural gas extraction, mineral extraction,drilling water wells, construction, creating oil wells.

DTH drilling rigs can be equipped with diesel or electric motors according to different working conditions. During the rock
drilling process, the impactor sneaks into the borehole, which can reduce the energy loss caused by the impact of the drill rod, thereby reducing the influence of the drilling depth on the borehole.

Multi-function drilling: A variety of drilling processes can be used on this rig, such as: DTH drilling, mud drilling, roller cone drilling, drilling with the follow-pipe and the being developed core drilling, etc. This drilling machine can be installed, according to user needs, mud pump, generator, welding machine, cutting machine. Meanwhile, it also comes standard with a variety of winch.
High working efficiency: thanks to full hydraulic and top drive rotary drilling, this drilling rig is adapt to a variety of drilling technology and drilling tools, has convenient and flexible control, fast drilling speed, short auxiliary time, and thus high operating efficiency.
Low cost: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, drilling cost of per meter is lower.
High leg crawler type: high leg is easy for loading and unloading, no need of crane in truck loading. Crawler walking is more adapt to the movement in muddy field.
The role of the oil mist: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, lubricated impactor has longer service life, drilling cost of per meter is lower. Drilling rig chassis: It can be crawler chassis, and also be truck-mounted chassis.




Applications And Features


1. The drilling rig hydraulic transmission of the rig effectively utilizes the power. This makes the overall power loss small and the drilling cost low.200m 300m 400m 500m 600m depth Truck crawler portable compressor DTH water well drilling rig2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m.3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents. 4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical
power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents. 5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short. 6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair. 7. The crawler water drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.5m, which is convenient for relocation and transportation.8. The drill rig reserves some functional interfaces in the hydraulic system, and can expand the functions according to the technological requirements of different users.

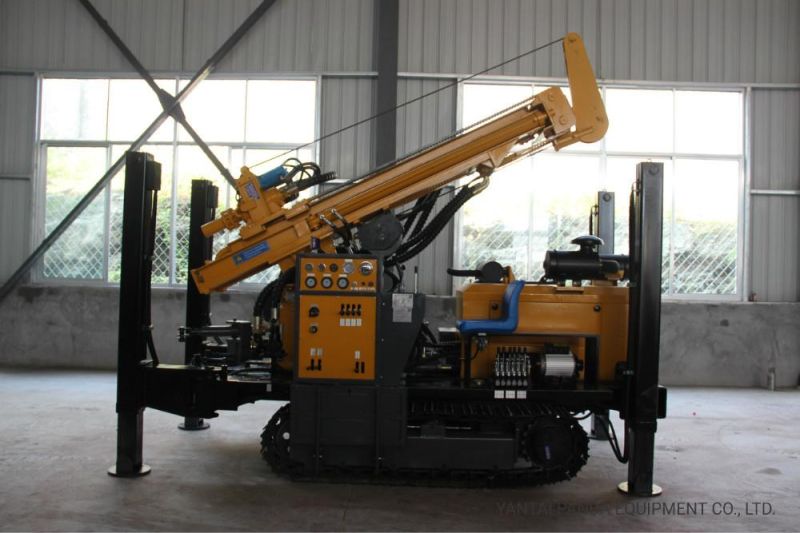

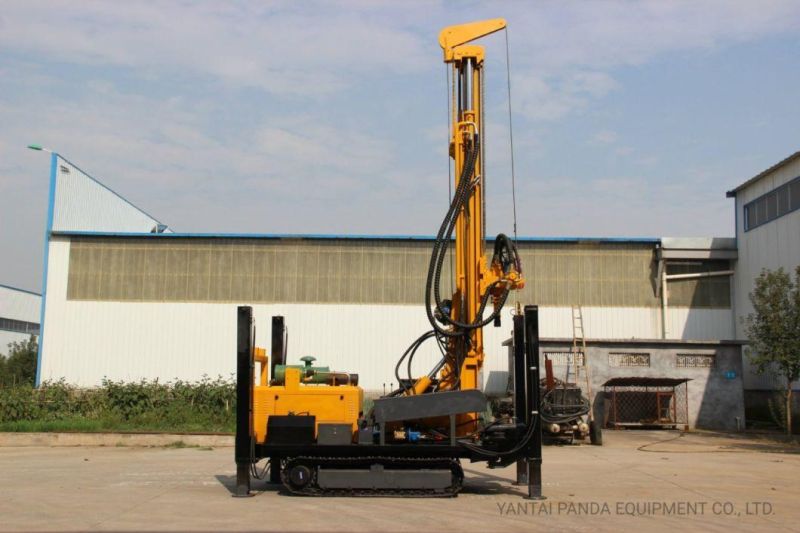

Details Images:


Packages:


FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?


A: Sure, welcome, here is our address: Yantai, Shandong.
