Ht50 Model Manual 2′ ′ Hot Tapping Machine
ANQING GREAT WALL PIPELINE CO., LTD.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO 9001:2000
- Condition：New
- Drill Hole Diameter：15-50mm
- Drill Hole Depth：2cm
Base Info
- Model NO.：HT50
- Bit Type：Drill Bits
- Drilling Way：Rotary
- Usage：Drilling Under Pressure
- Suit for：Carbon Steel Pipe, Iron Pipe, Plastic Pipe
- Application：Water, Gas and Oil
- Tapping Range：3,4′′, 1,2′′, 1′′, 2′′
- Feed Mode：Manual
- Feeding Volume：1.5mm,R
- Working Stroke：170,240mm
- Maximum Working Pressure：16 Bar
- Working Temperature：-20ºC- 80ºC
- Dimensions：470X170X160mm,540X170X160mm
- Warranty Period：1 Year
- Transport Package：Wooden Case
- Specification：HT50
- Trademark：GREAT WALL
- Origin：China
- HS Code：8467210000
Description

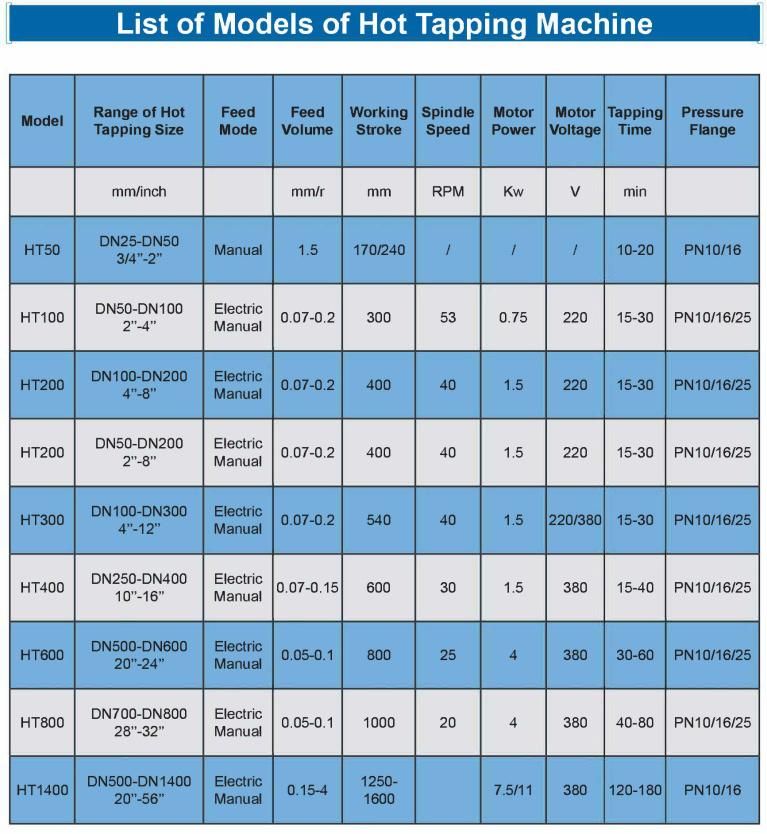

List of Models :

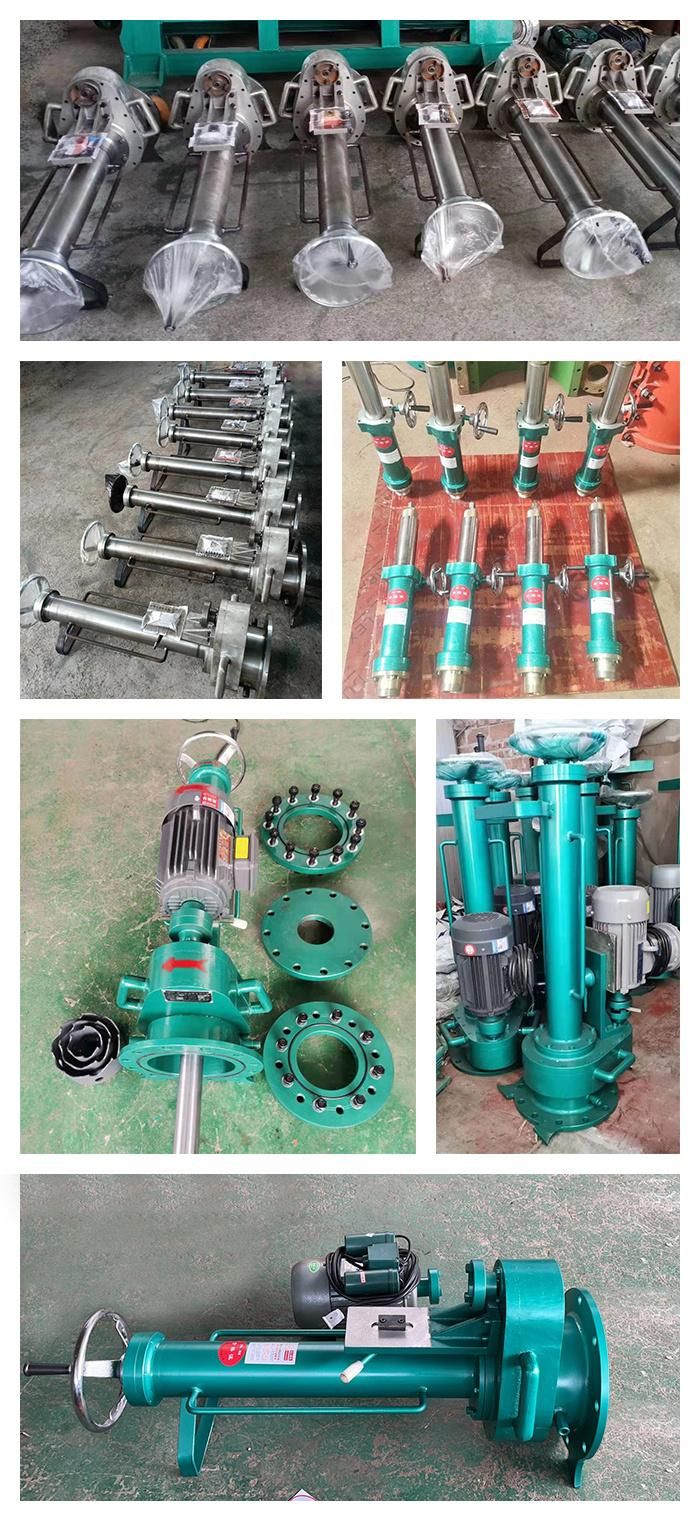

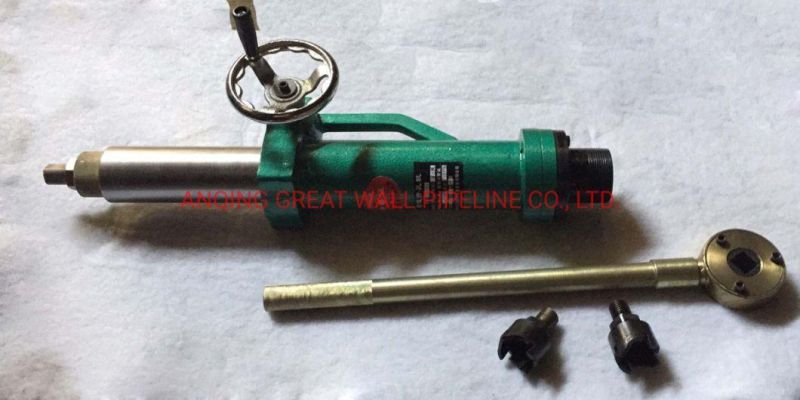

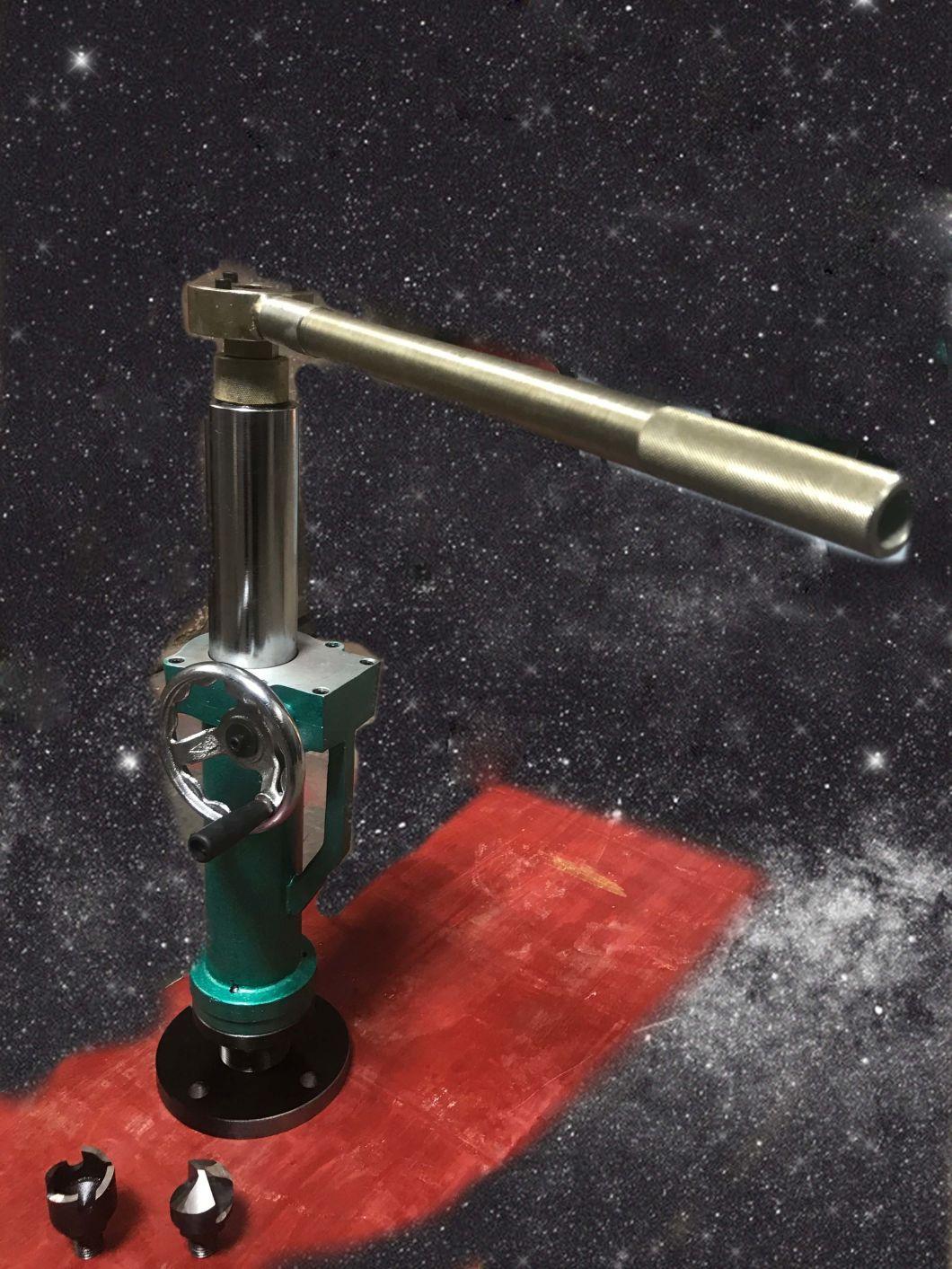

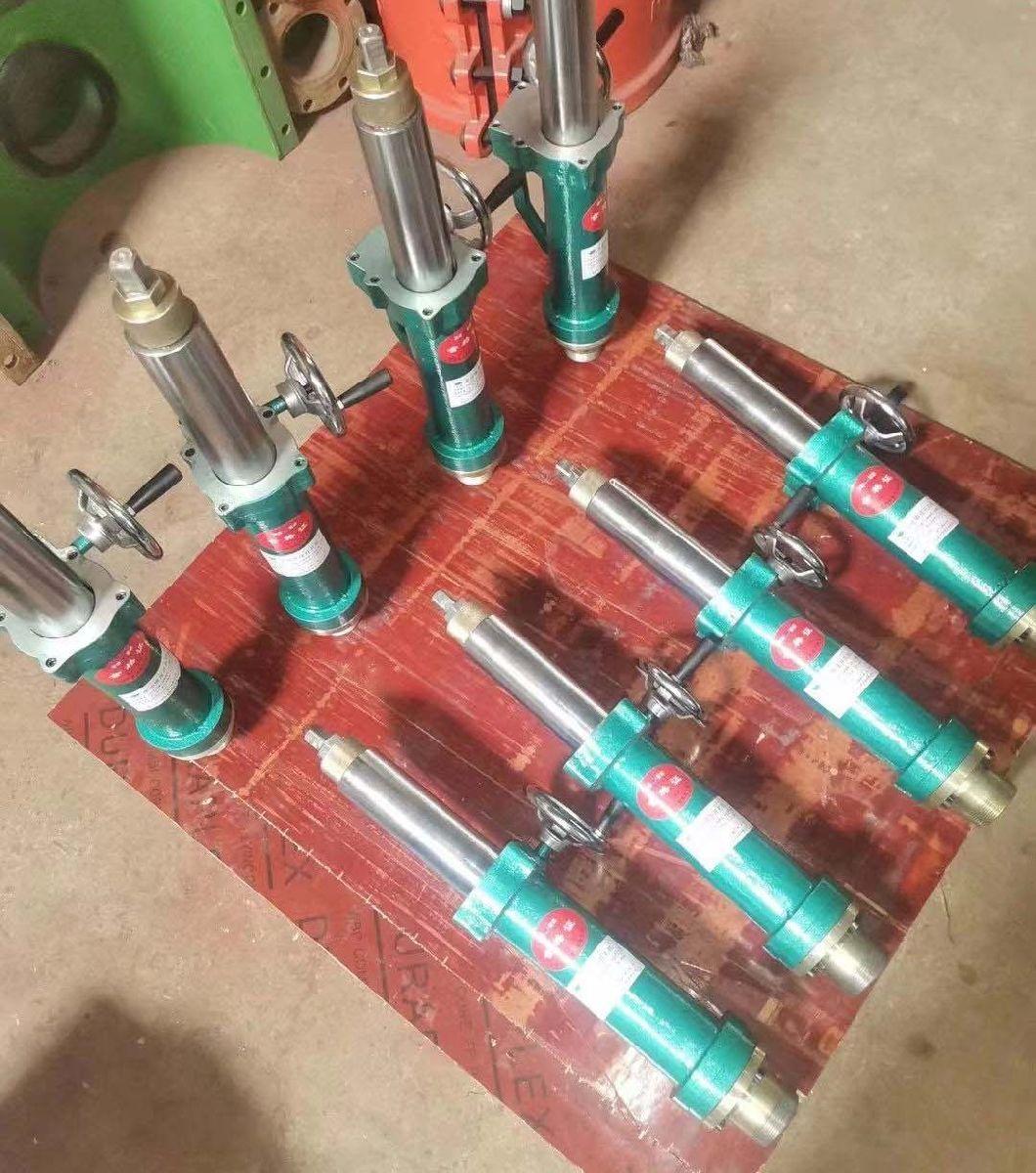

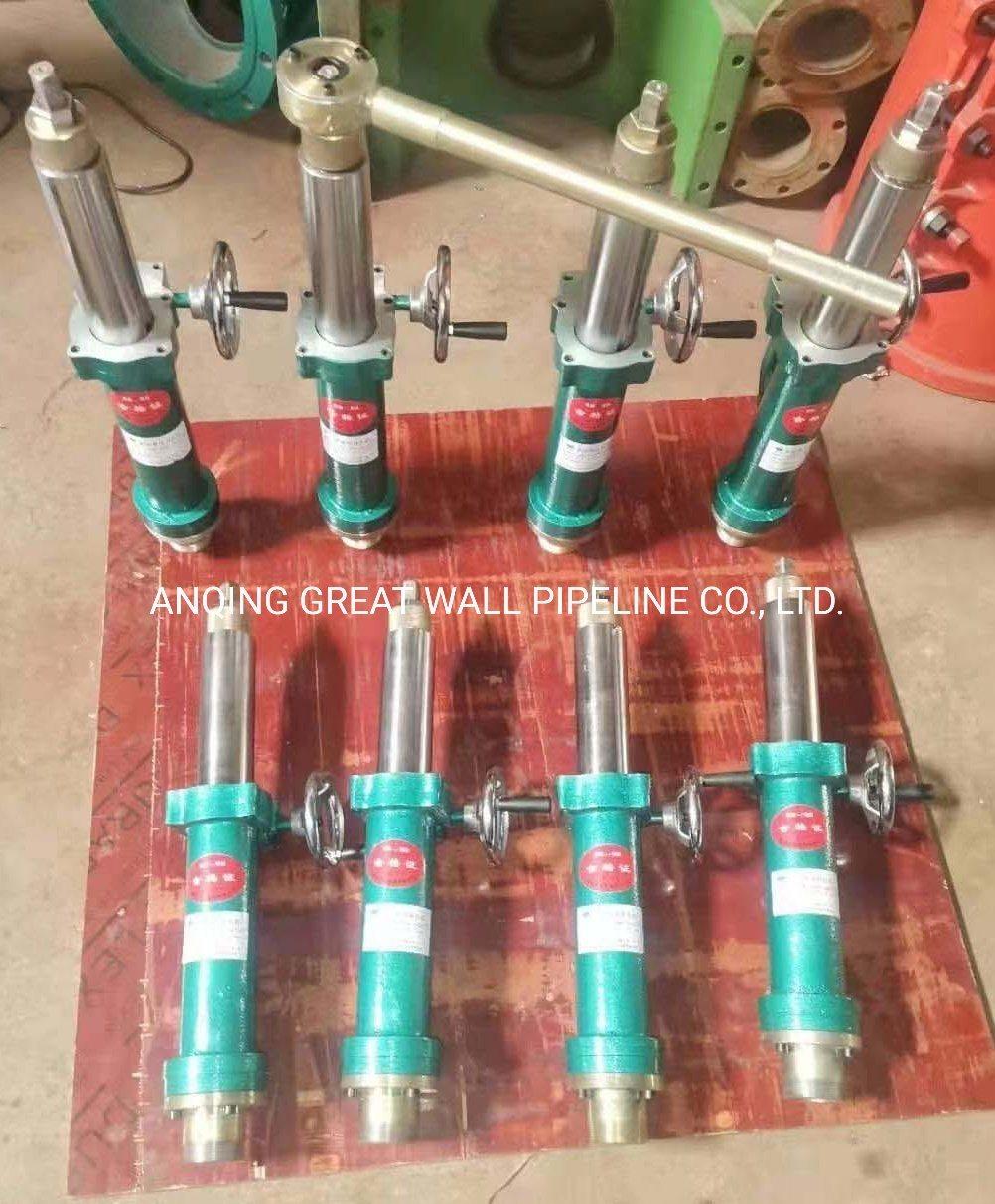

Product Display :
Project Case :

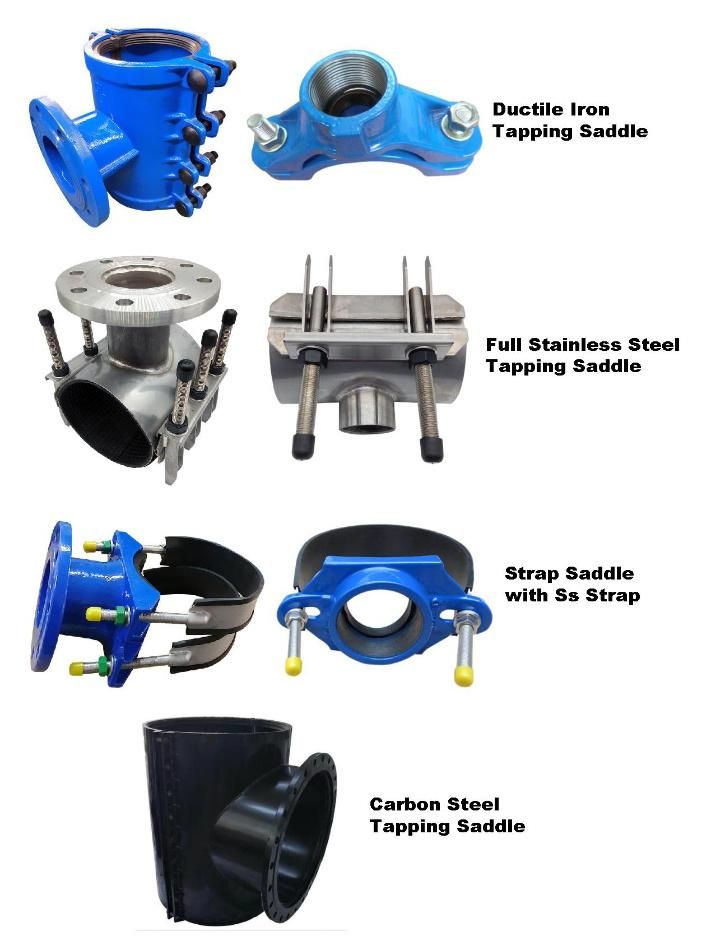

Hot Tapping Fitting :
Note: we supply the above hot tapping fittings .Company Profile :
Anqing Great Wall Pipeline Company have over 10 years experience of the production and development ofElectric and Manual Hot Tapping machine for water, oil and gas lines with the pressure rating of PN10, PN16, PN25,
the range of hot tapping sizes from DN25mm up to DN1600mm.
our hot tapping machine are exported to the countries and regions including Singapore, Malaysia, Indonesia,
Taiwan, UAE, Chile, Argentina, Brazil and etc.
