Higher Output Power Mqt-85/1.8 Anchor Drilling Machine Pneumatic Roof Bolter

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Certification：CE, TUV, BV
  • Condition：New
  • Motor：Pneumatic
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：<100m
  • Bit Type：Rock Anchor Bolt

Base Info

  • Model NO.：MQT-85,1.8
  • Drilling Way：Rotary
  • Working Air Pressure：0.4-0.63 MPa
  • Free Running Speed：600 Rpm
  • Static Torque：200nm
  • Working Air Pressuretmpat0.4-0.63 Free：0.5MPa
  • Rated Rotate Speed：190rpm
  • Rated Torque：120nm
  • Power Output：2.1-2.8kw
  • Air Consumption：3.5m3,Min
  • Maximum Push Force：8.2kn
  • Flushing Water Pressure：0.6-1.2MPa
  • Transport Package：Carton Box, Plastic Bagsor as Your Payment
  • Specification：CE
  • Trademark：China Coal
  • Origin：China
  • Production Capacity：1000 Sets Per Month

Description

Φ25-32Leg Type IIIIIIIIIIIIIIIIIIIIIIIILeg propulsionkN5.26.79.85.26.79.85.26.79.85.26.79.8Overall Max.heightmm245030503650256630463614255230323600254030153600Overall Min.heightmm118512681418118913091451117512981437136517252145WeightKg444649454749485052505255

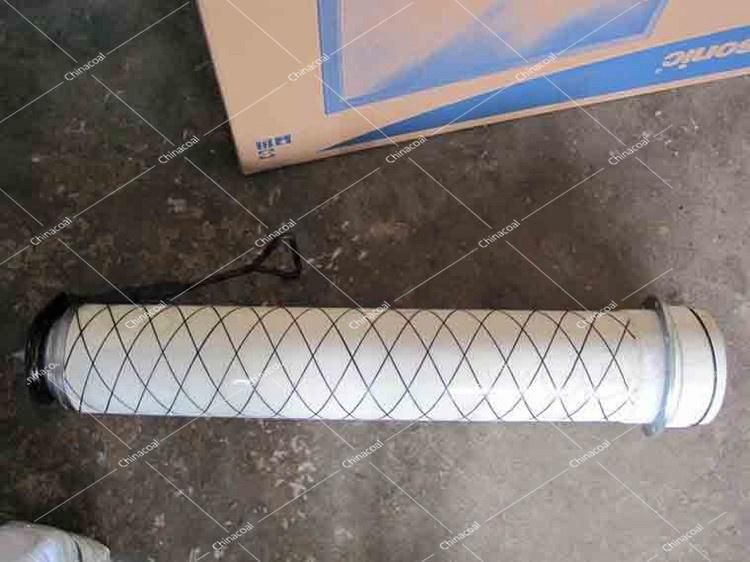

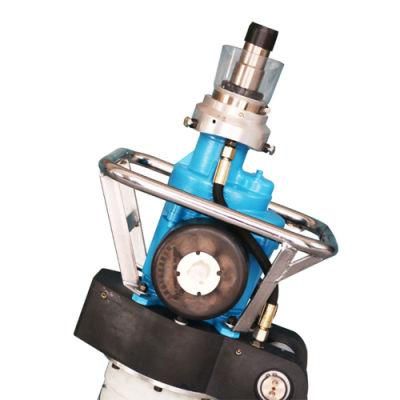

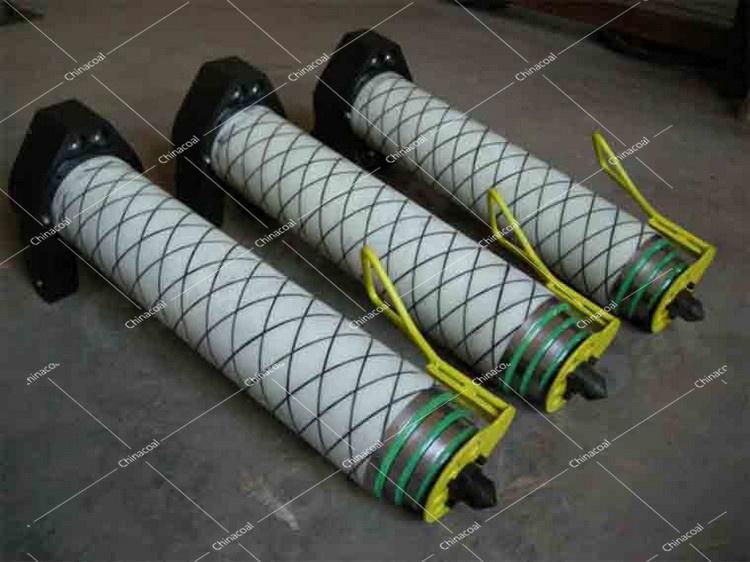

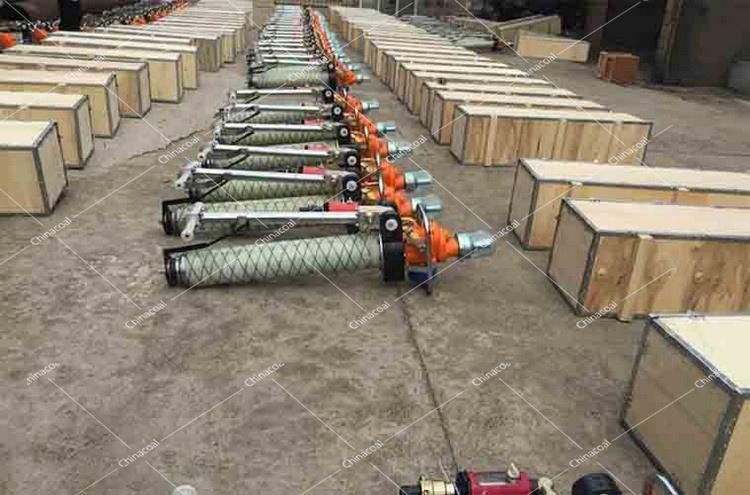

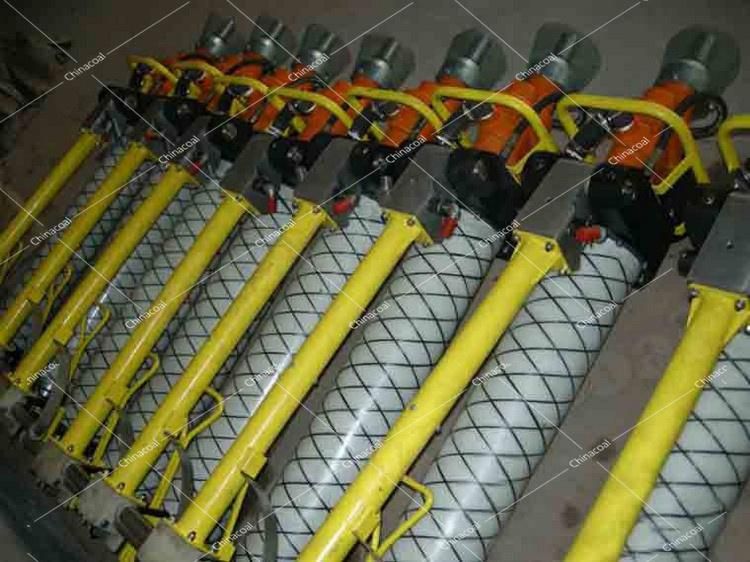

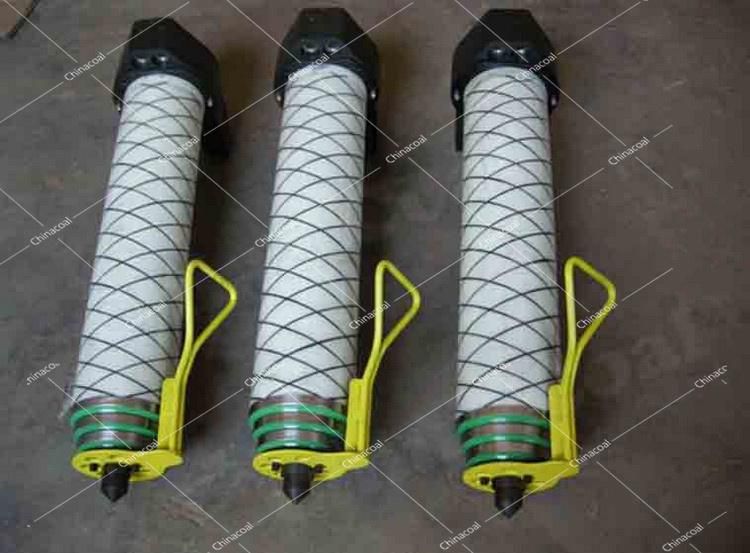

Pictures of  Higher Output Power Mqt-85/1.8 Anchor Drilling Machine Pneumatic Roof Bolter
