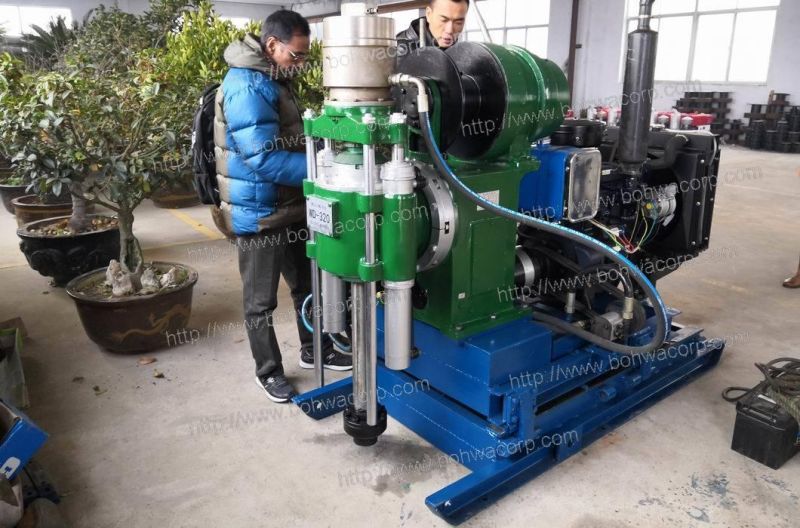

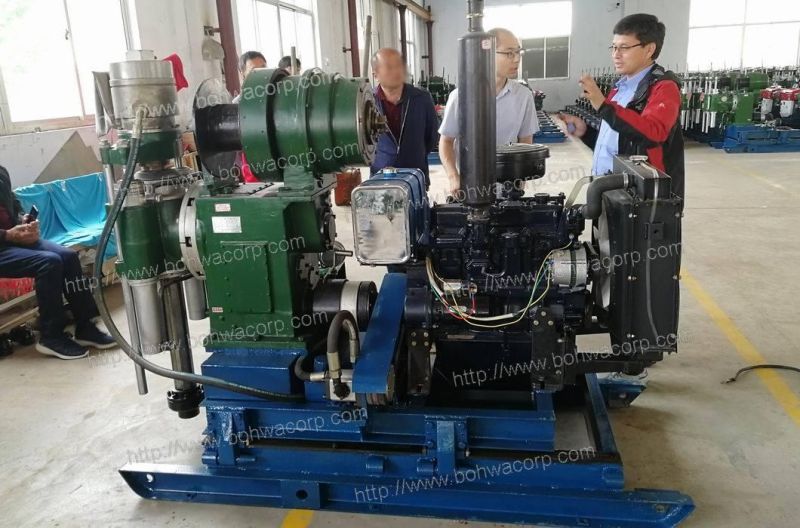

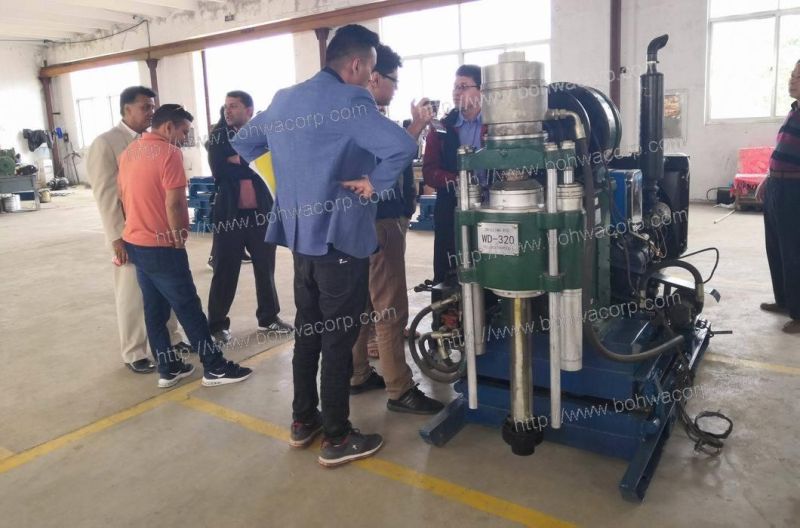

• Model NO.：WD-320
• Type：Skid Base
• Drilling Capacity：400m,Nq
• Drilling Angle：0 Degree~90 Degree;
• Weight：1,100kg
• Transport Package：Nude Packing,Wooden Case
• Specification：Overall Dimensions: With Diesel Engine
• Trademark：Bohwa
• Origin：China
• HS Code：8430490000

Basic Info.

Model NO. WD-320 Type Skid Base Drilling Capacity 400m/Nq Drilling Angle 0 Degree~90 Degree; Weight 1,100kg Transport Package Nude Packing/Wooden Case Specification Overall Dimensions: With Diesel Engine Trademark Bohwa Origin China HS Code 8430490000

Product Description

Main Specification

1.      Drilling Capacity: 400M/NQ

2.      Drilling Angle: 0°~90°

3.      Rotary Unit
1)   Spindle Speed:
1.  Clockwise: 55, 88, 130, 200, 305, 478, 695, 1100rpm
2.  Reverse: 48, 75 rpm
2)      Spindle Stroke:500mm
3)      Max. Feeding Pressure:36KN
4)      Max. Lifting Capacity:52 KN
5)      Max. Spindle Output Torque: 3300N.m

4.      Winch
1)       Max. Lifting Capacity:30KN (Single Wire)
2)       Drum Speed:0.45, 0.71, 1.0, 1.64 m/s
3)       Diameter of steel cable:13mm
4)       Drum Capacity: 50m

5.      Working Stroke of the Hydraulic Slider Base: 465mm

6.      Hydraulic Oil Pump
a)      Pump Type: Gear Pump E325
b)      Rated Pressure:16MPa
c)      Working Pressure:6.3Mpa
d)      Flow:25ml/r
e)      Rated Speed:2,000rpm

7.      Power
1)      Diesel Engine:35kw (Electric Start)

8.      Overall Dimensions(L×W×H)
1)      With Diesel Engine:2,000×1,250×1,820mm

9.      Weight: 1,100kgfor rig on skid base,excluding the power unit.



Our Services

 1. Provide reliable delivery

 2. High quality and competitive prices.

 3. Provide Tele-technical consulting and the technical solutions.

 4. Other special technical service according to client's requirements.
