• Model NO.：MZ130Y-2
• Screw Pile Length：0-3m
• Screwing Power：6500nm
• Pile/Drill Diameter：90-400mm
• Work Efficiency：200-450, Day
• Transport Package：40′ HQ
• Specification：4500*1970*2440mm
• Trademark：LongYe
• Origin：Shandong
• HS Code：8430419000

Basic Info.

Model NO. MZ130Y-2 Screw Pile Length 0-3m Screwing Power 6500nm Pile/Drill Diameter 90-400mm Work Efficiency 200-450/ Day Transport Package 40′ HQ Specification 4500*1970*2440mm Trademark LongYe Origin Shandong HS Code 8430419000

Product Description

We are China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and we

exported to over 60 countries !

  Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling

rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill

hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of

Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai

High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our

company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering

technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of

advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has

our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced

production equipment and more than 10 years of experience, our company has developed and produced three

series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well

throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60

countries...
 Technical parameters

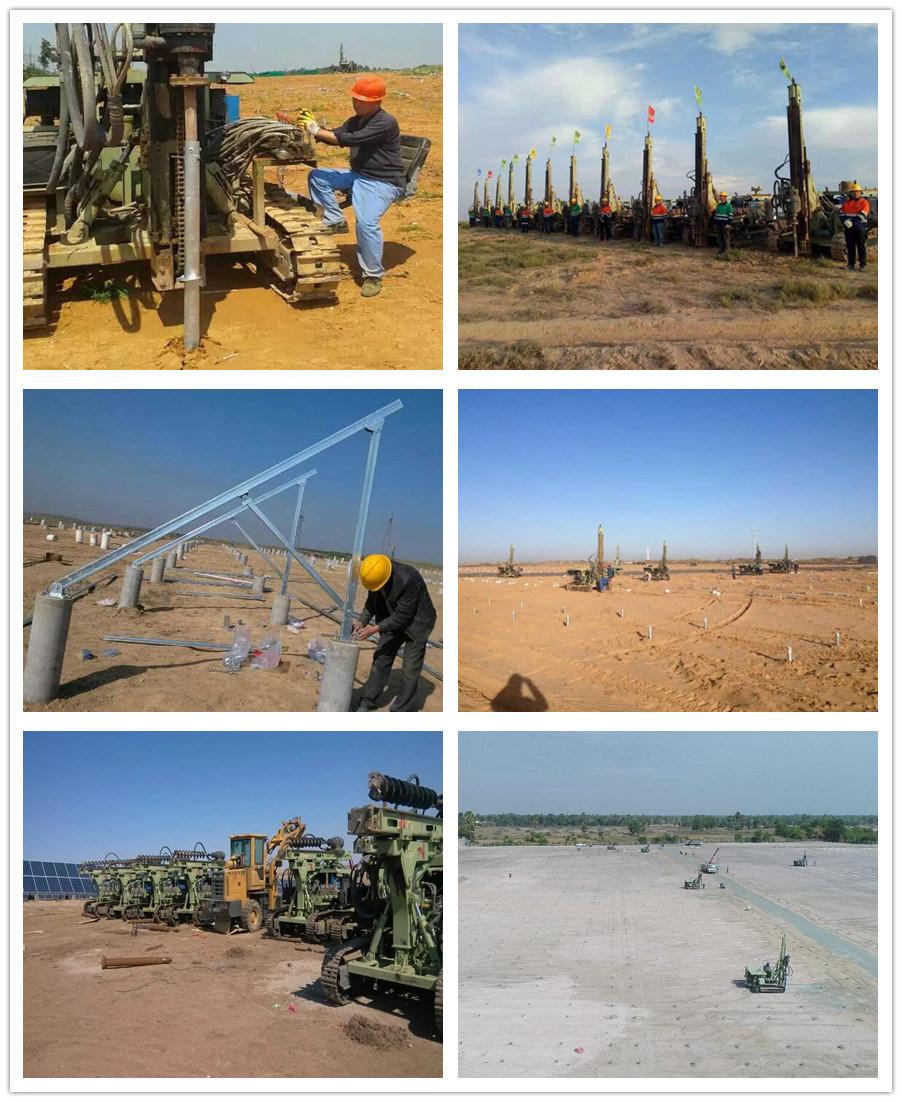

      MZ130Y-2 ground screw drilling machine can :

• Drill maximum 3m long ground screw piles.
• Drill 130-400mm diameter auger spiral soil holes.
• Drill 90-350mm diameter DTH stone rocky ground holes .
• Working on flat ground or maximum 15 degree slope ground

Air pressure  (Mpa)	0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Air consumption (m3/min)	10-26
Bore diameter(hammer)  (mm)	90-300mm
Bore depth  (m)	20-100
Once promotion(mm)	2000
Screw pipe diameter  (mm)	76/89
For rock	F=6-20
Bore diameter(screw)(mm)	Max 400mm
Skid pitch(.)	100
Swinging angle of skid(.)	Left and right total 40°
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Rotation speed<="">	0-70
Host power(kw)	56
Climb ability(.)	35
Walk speed(kw/h)	0-2.5
weight(Kg)	4710
Dimension(L*W*H)mm	4460*1950*2460

Dear solar partner,

We ShanDong LongYe Machinery is China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and we exported to over 60 countries !

If in need of solar pile driver machines, welcome to contact me anytime...

My best regards
Tao

...................................
Tao Zhang (Mr.)

E: zhangtao(a t)longyejixie()com


Address: TaiAn city, ShanDong province, China
