• Model NO.：DR-60
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Type：Crawler
• Usage：Pile Driver, Drill Hole Flling Pile Construction
• Engine：Depends on Excavator
• Drilling Diamete：400-1000mm
• Power Source：Diesel
• Drilling Depth：5-15m
• Color：Customized
• Weight：8-15t
• Keyword：Mini Bore Pile Drilling Machine Dr-60
• Engine Power：32kw
• Drill Rod：Kelly Bar
• Drill Tools：Two Drill Bit
• MOQ：1 Set
• Power Head Speed：10-50rpm
• Application：New Machine
• Chassis Length：2700mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：3800*2000*3400mm
• Trademark：DingLi heavy industry
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-60 Bit Type Drag Bit Drilling Way Rotary Type Crawler Usage Pile Driver, Drill Hole Flling Pile Construction Engine Depends on Excavator Drilling Diamete 400-1000mm Power Source Diesel Drilling Depth 5-15m Color Customized Weight 8-15t Keyword Mini Bore Pile Drilling Machine Dr-60 Engine Power 32kw Drill Rod Kelly Bar Drill Tools Two Drill Bit MOQ 1 Set Power Head Speed 10-50rpm Application New Machine Chassis Length 2700mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 3800*2000*3400mm Trademark DingLi heavy industry Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

                                                   DR-60 micro Rotary Drilling Rig

Product Details

This is a newly developed small excavator refitted rotary drilling rig in 2021. This is Sany excavator, we can purchase excavator according to customer's requirements, and then refit. After modification, it can achieve the function of one machine with three functions: drilling machine, crane and excavator. This drill is suitable for small construction sites, such as concrete piling. The depth is 5-15m. Drilling tools can be selected according to geological requirements!

Parameter


Product Type	DR-60
Chassis length.(mm)	2700
Track width.(mm)	400
Machine weight.(t)	8.5
Maximum drilling depth.(m)	13
drilling diameter.(mm)	500-1000
Engine brand	Yangma / Kubota / Isuzu
Maximum torque of power head.(KN.m)	40
Power head speed.(rpm)	45
Maximum pressure of the pressurization system.(KN)	30
Maximum lifting force of the pressurization system.(KN)	25
Maximum travel pressure system.(mm)	1000
Maximum lifting force of the main winch.(KN)	50
Maximum pull-up speed of the main winch. (m/min)	20
Maximum lifting force of the auxiliary winch.(KN)	13
Maximum pull-up speed of the auxiliary winch.(m/min)	50
Left and right inclination angle of drilling mast(°)	5
Forward and backward inclination angle of the drilling mast. (°)	5
Maximum driving speed(KM/h)	3
Maximum climbing angle.(°)	35
Overall length of transport status.(mm)	3800
Overall width of transport status.(mm)	2000
Overall height of transport status.(mm)	3400

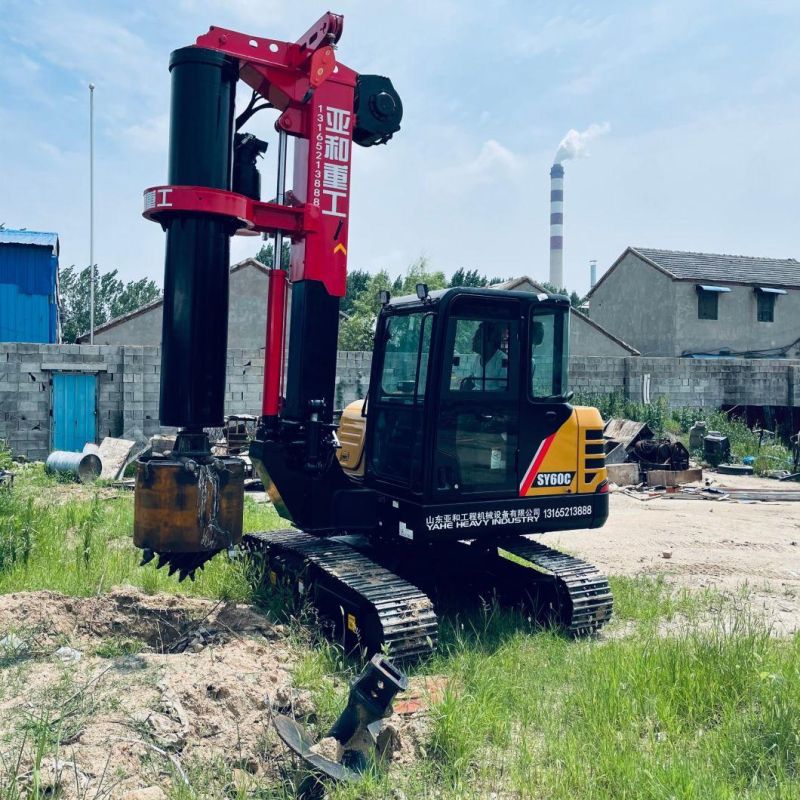

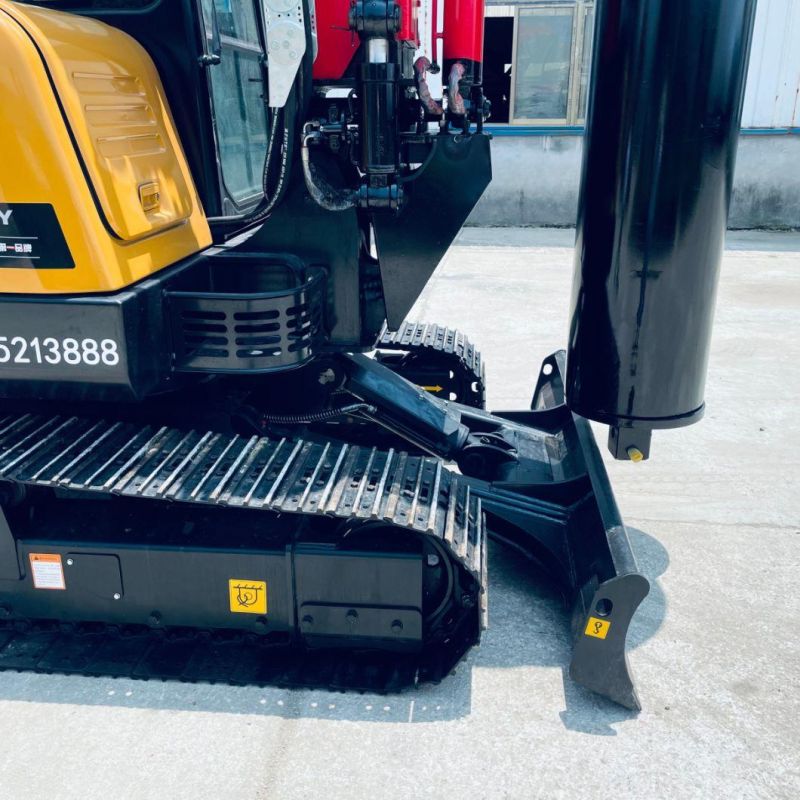

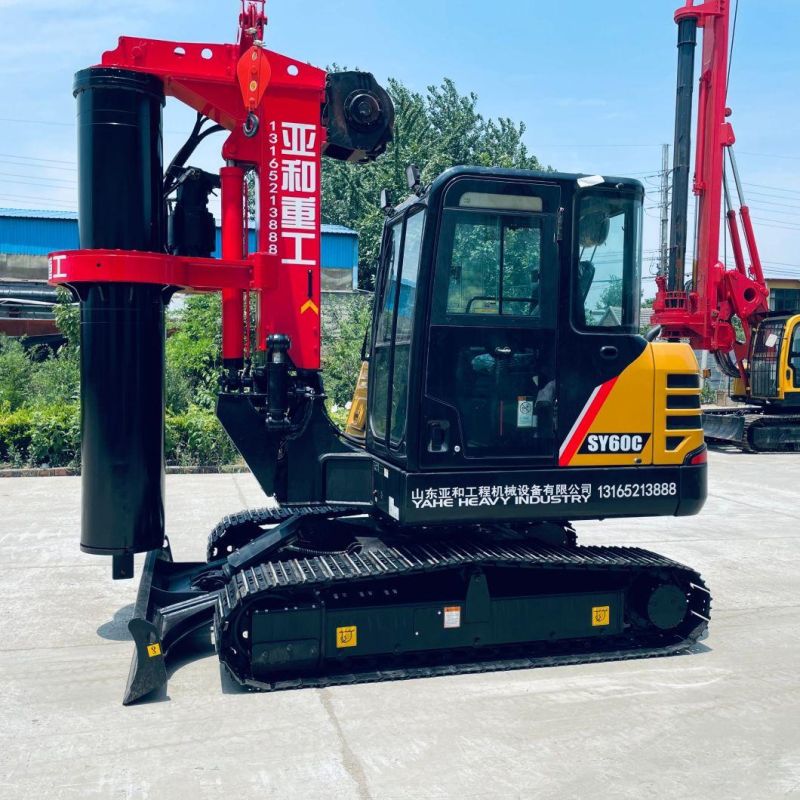

 Machine Photos



Certification

We have many certificates, support verification, we export more than 30 countries!

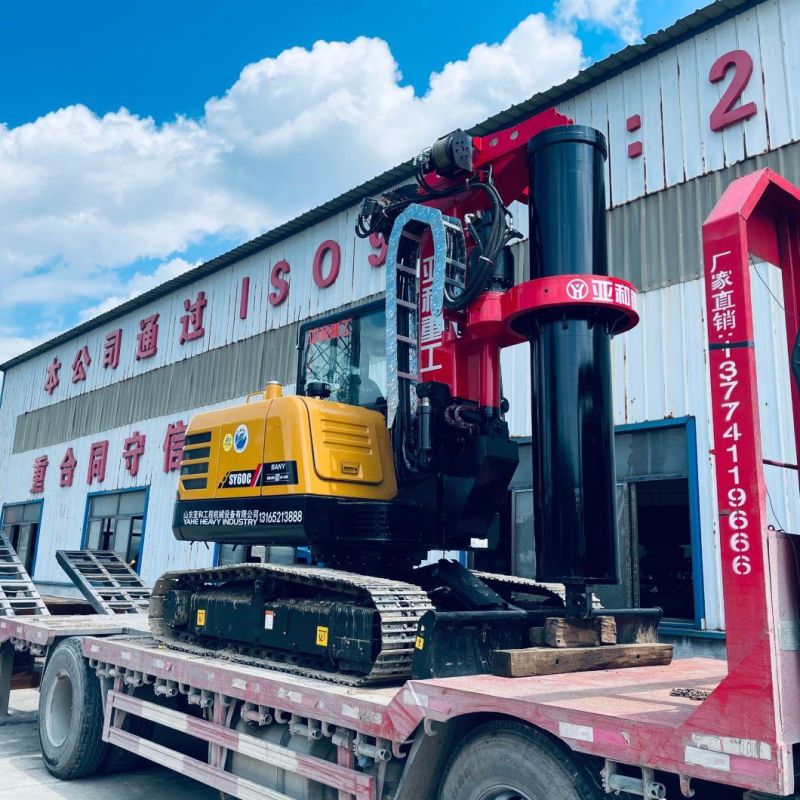

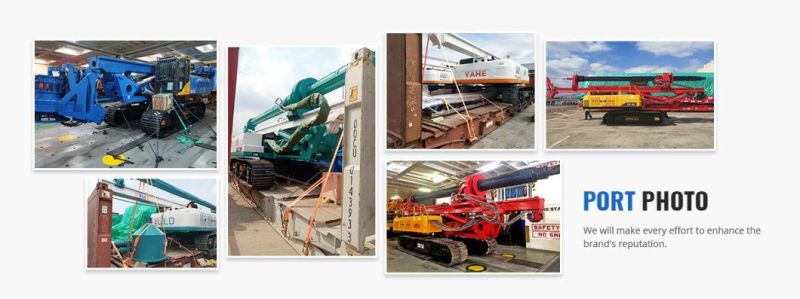

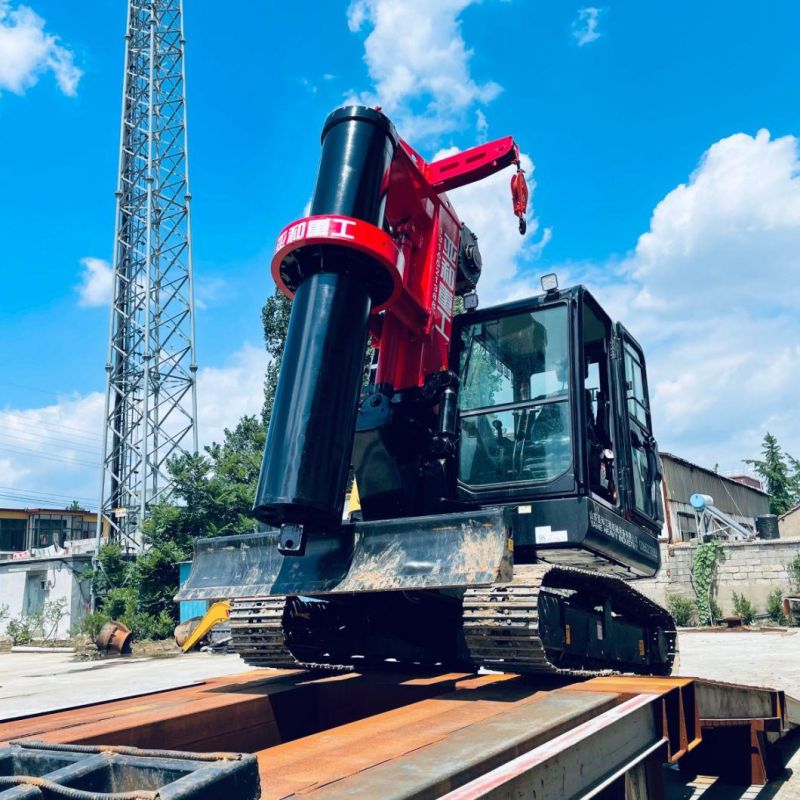

Transport
At present, there are three ways to transport rotary drilling rig: special equipment frame box, RO ro ship and bulk carrier. Generally speaking, they are the first two. Although the price is a little expensive, compared with bulk carriers, they are very safe. We will arrange port personnel to take reinforcement photos in each link. If customers need, we can send them by email.


Exhibition
We have been committed to participate in a variety of offline exhibitions, not only for the sale of our rig, but also for continuous learning. We are committed to the world, launched "rotary drilling rig, made in China!"
Customer photo
Welcome customers from all over the world to visit our factory. We will provide accommodation for customers free of charge and give them operation demonstration on site. Customer satisfaction is our greatest hope.

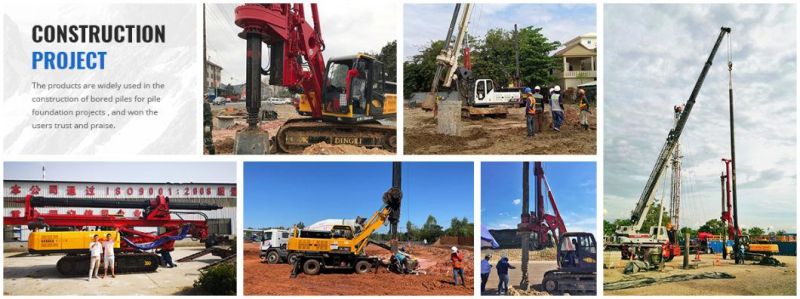

Working photo
Thank you for your feedback. We currently export to 40 countries around the world. Our biggest advantage is that we are a rotary drilling rig manufacturer, which can reduce the price difference made by middlemen and import independently!

 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
