Yuchai High Quality Strong Power Rotary Drilling Rig Ycr60d
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：10-30m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：YCR60D
- Type：Crawler
- Engine Power：194kw
- Traction Force：390
- Max. Output Torque：180
- Max. Working Pressure：35
- Working State Height：19005
- Transport Package：Nude
- Specification：7910x3016x3515
- Trademark：Yuchai
- Origin：China
- Production Capacity：350units,Month
Description
Product Specifications
Performance Parameters
Project
Parameters
Chassis
Engine Type
Cummins 6C8.3
Engine Power/Speed
194/1800
Crawler Expansion Width (From The Outside)
4100
Crawler Board Width
800
Traction Force
390
Power Head
Max. Output Torque
180
Power Head Speed
7-25
Max.Pull-Down Piston Push
`120
Max.Pull-Down Piston Pull
180
Pressure Oil Cylinder Stroke
3600
Winch
Main Winch
Max.Line Pull of the first layer
180
Max.Line Speed
46
Wire Rope Diameter
Φ26
Auxiliary Winch
Max.Line Pull of the first layer
50
Max.Line Speed
70
Wire Rope Diameter
Φ16
Mast
Mast Forward Inclination
5
Mast Sideward Inclination
±4
Hydraulic Pump
Max. Working Pressure
35
Depth and Diameter
Max. Drilling Diameter
1800
Max. Drilling Depth
55(60)
Drilling Pipe
Drilling Pipe
Φ406(440)
Working State Quality
62
The machine size
Project
Parameters
A
Working State Height
19005
Working State Width
4100
B
Transportation State Length
13695
C
Transportation State Height
3460
Transportation State Width
3200
D
Crawler Length
5538
E
4170
F
2302
G
2567

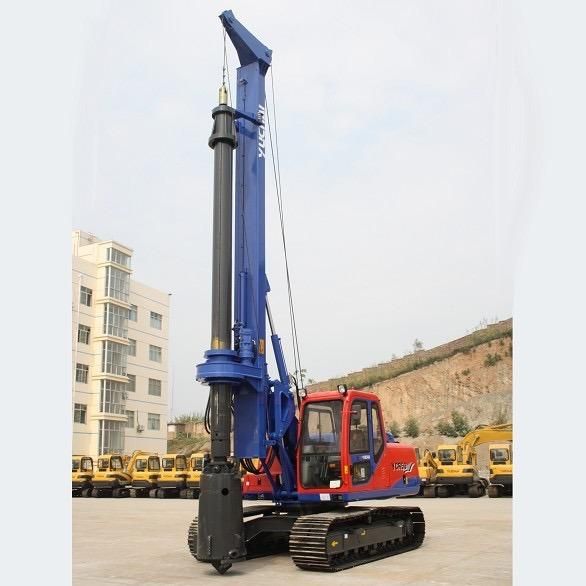

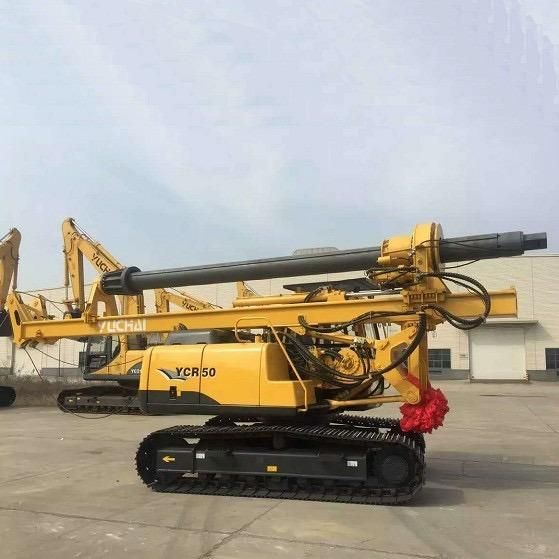

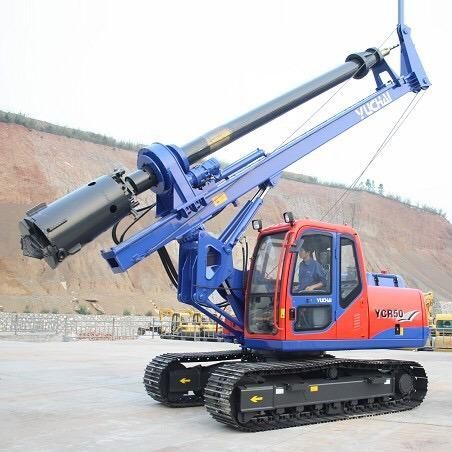

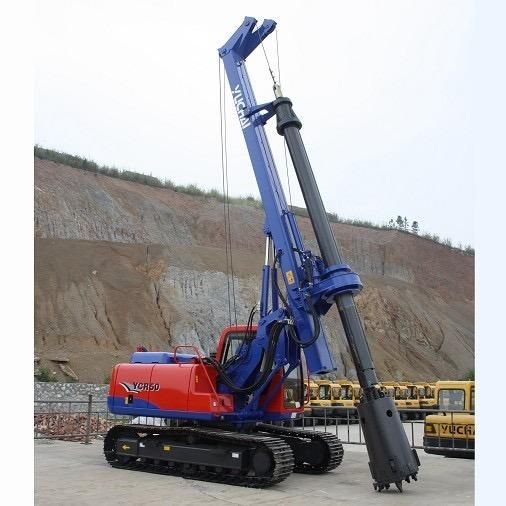

Product Show
