• Model NO.：XR150D
• Type：Crawler
• Max. Drilling Diameter：1500 mm
• Max. Drilling Depth：56m
• Weight of Overall Unit：49t
• Engine：Cummins Qsb7-C202
• Rated Power/Speed：150kw
• Max. Torque：150kn M
• Rotational Speed：7~33r,Min
• Max.Pulling Force：160kn
• Working Pressure：35MPa
• Transport Package：Nude Package
• Specification：13150*2960*3140mm
• Origin：China
• HS Code：87059091
• Production Capacity：10000

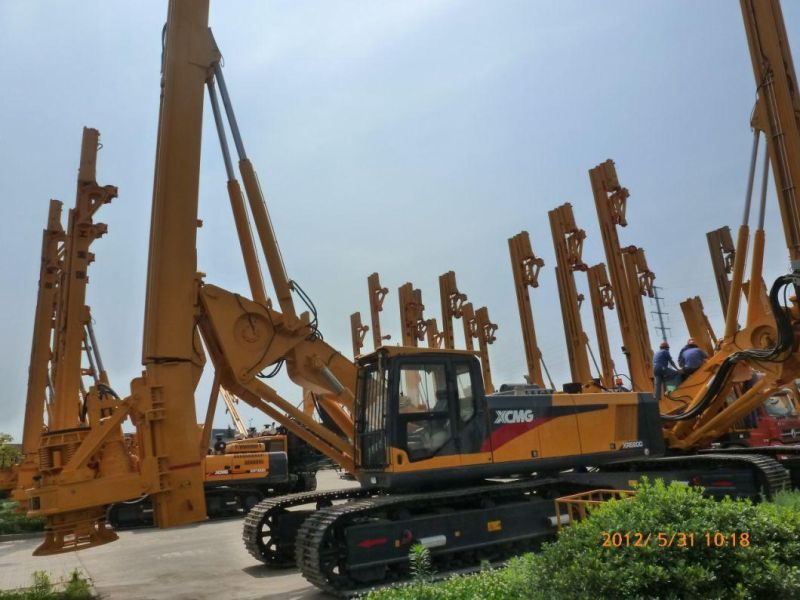

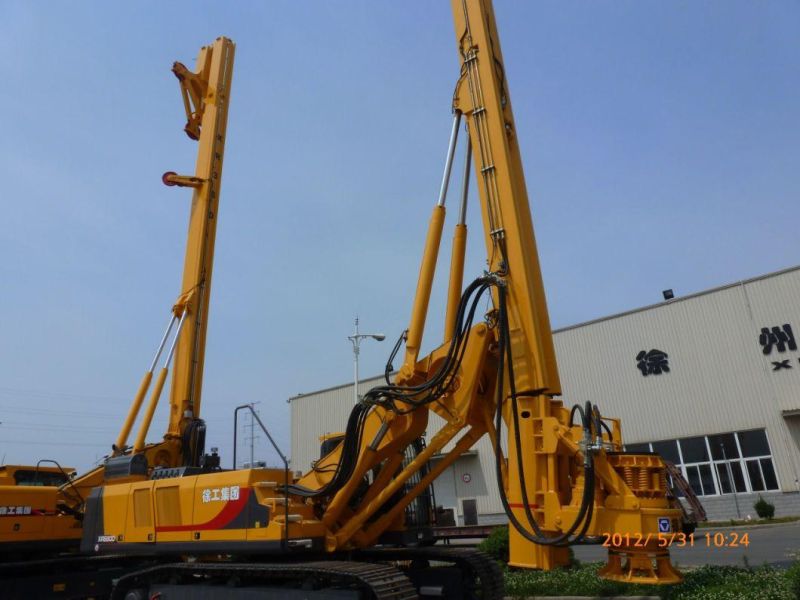

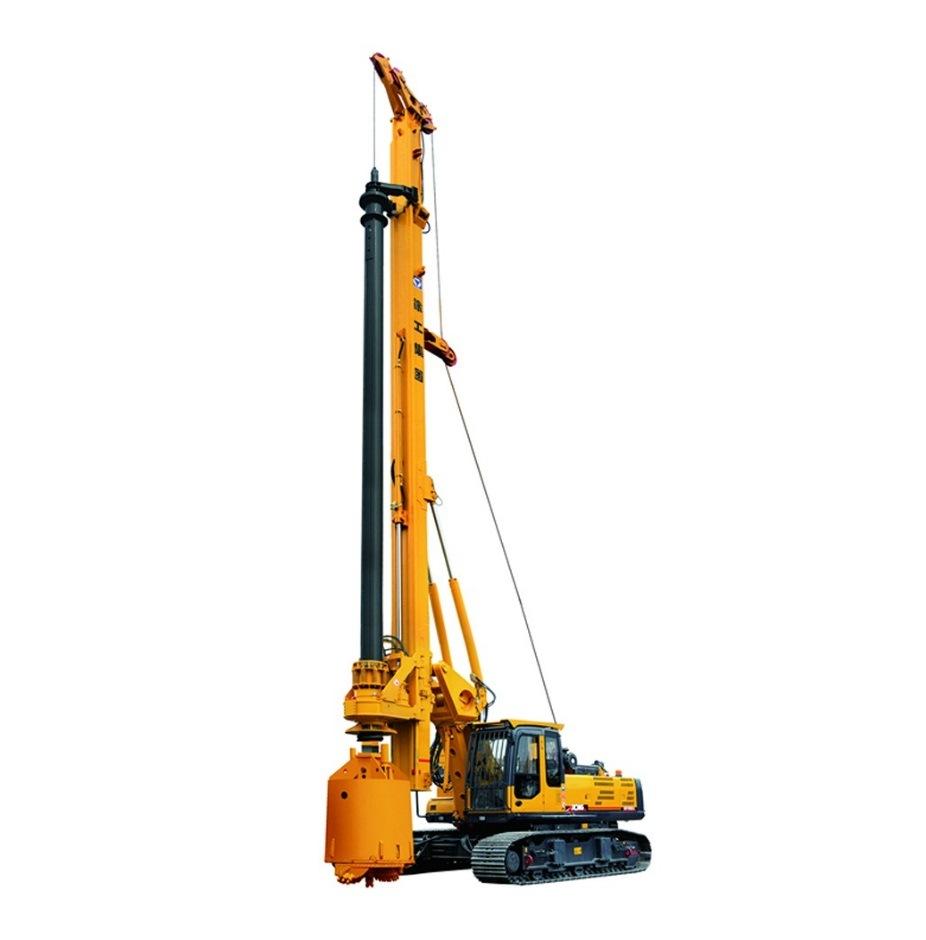

SPECIFICATIONS FOR XR150D ROTARY PILING RIGEngineEngine BrandCUMMINSEngine TypeQSB7-C202Rated PowerkW150Rotary DriveMax output torquekN . m150Rotary speedr/min7~33Max Drilling Diametermm1500Max Drilling Depthm56Crowd CylinderMax pull-down piston pushkN120Max pull-down piston pullkN160Max pull-down piston strokem3.5Main WinchMax Pulling forcekN160Max line speedm/min72Auxiliary WinchMax Pulling forcekN50Max line speed_m/min60Mast RakeSide⁰± 3⁰Forwards± 5⁰Backwards± 15⁰UndercarrigeMax traveling speedkm/h2.5Max grade ability%40Min Clearancemm384.5Track shoe widthmm700Distance between tracksmm2960 ~ 4200Hydraulic SystemWorking pressureMpa35Overall Drilling Weightt49DimensionWorking conditionmm7550 x 4200 x 19040Transportation condition mm13150 x 2960 x 3140Pictures:
