• Model NO.：ANBIT
• Drill Hole Diameter：140-325 mm
• Drill Hole Depth：300m
• Bit Type：Diamond Bit
• Drilling Way：Impactor
• Type：Crawler
• Engine：75.8 Kw
• Transport Package：Nude
• Specification：4100*1950*2600mm
• Trademark：ANBIT
• Origin：China
• HS Code：84304900
• Production Capacity：500,Year
• Package size per unit product：4100.00cm * 1950.00cm * 2600.00cm
• Gross weight per unit product：7000.000kg

Hole Diameter

140-325mm

Depth

300m

Feed length

3.4m

Tramming Speed

2.5 km/h

Gradient

30 degree

Engine Power

75.8 Kw

Work Pressure

1.7-3.0 Mpa

FAD

17-35 m3/min

Drill rod Length

76mm,89mm,102mm

Drill rod diameter

1.5m,2.0m,3.0m

Full up Force

18 T

Rotation Speed

40-70 rpm

Rotation Torque

5700-7500 N.m

Dimensions

4100*1950*2600 mm

Weight

7 T

Company Informationaccessory project

ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.

water borehole drilling machine

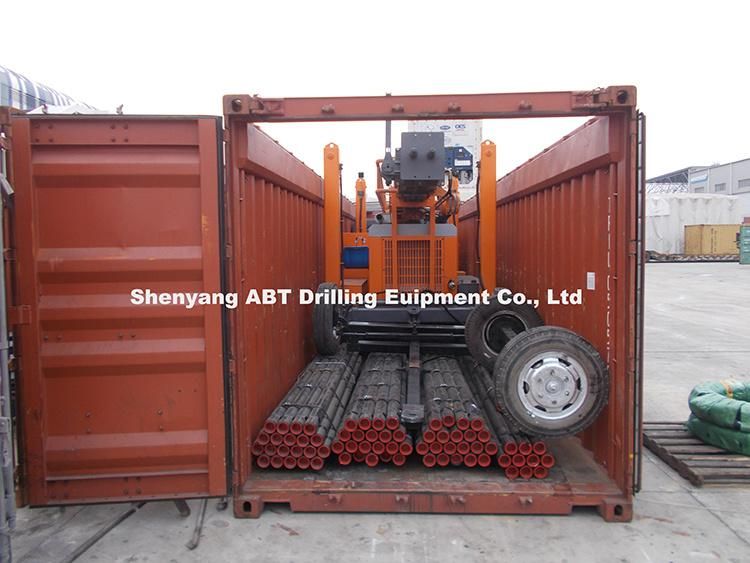

Packing &Shipping
