Kaishan YT28 Hand Hold and Air Leg Pneuamtic Rock Drill

Quzhou Refine Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：NO
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：YT28
  • Drilling Way：Rotary
  • Length：661mm
  • Cylinder Dia.&Stoke：80*600mm
  • Working Pressure：0.35-0.63MPa
  • Impact Energy：>70j
  • Impact Frequency：>37Hz
  • Air Consumption：<81L,S
  • Transport Package：Carton or Wooden Case
  • Specification：26KG
  • Trademark：KAISHAN
  • Origin：Zhejiang, China
  • HS Code：8430390000
  • Production Capacity：1000PCS,Month

Description

MODELWeightLengthCylinder DiaX strokeWorking pressureImpact EnergyImpact FrequencyAir ConsumptionKGmmmmMPaJHzI/sYO151555058×450.4-0.63≥21≥32≤20YO181855058×450.4-0.63≥22≥32≤20Y19A1960065×540.4-0.3-63≥28≥28≤37YO202056163×550.4-0.63≥26≥33≤33Y262665065×700.4-0.63≥30≥23≤47YT232462876×600.4-0.63≥65≥37≤78YT23D2466870×700.4-0.63≥65≥31≤67YT242467870×700.4-0.63≥65≥31≤67ZY242569070×700.4-0.63≥65≥30≤67YT282666160 ×600.4-0.63≥70≥37≤81MZ76652672076×700.4-0.63≥70≥37≤81

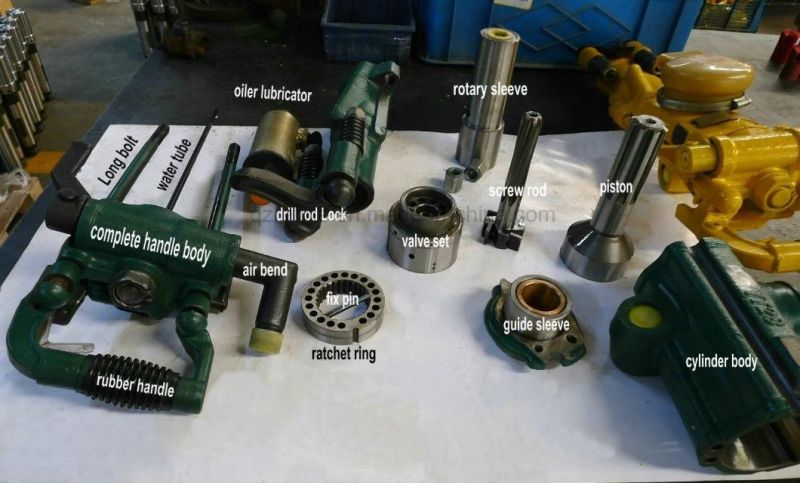

Spare parts display:
Kaishan YT28 Hand Hold and Air Leg Pneuamtic Rock Drill

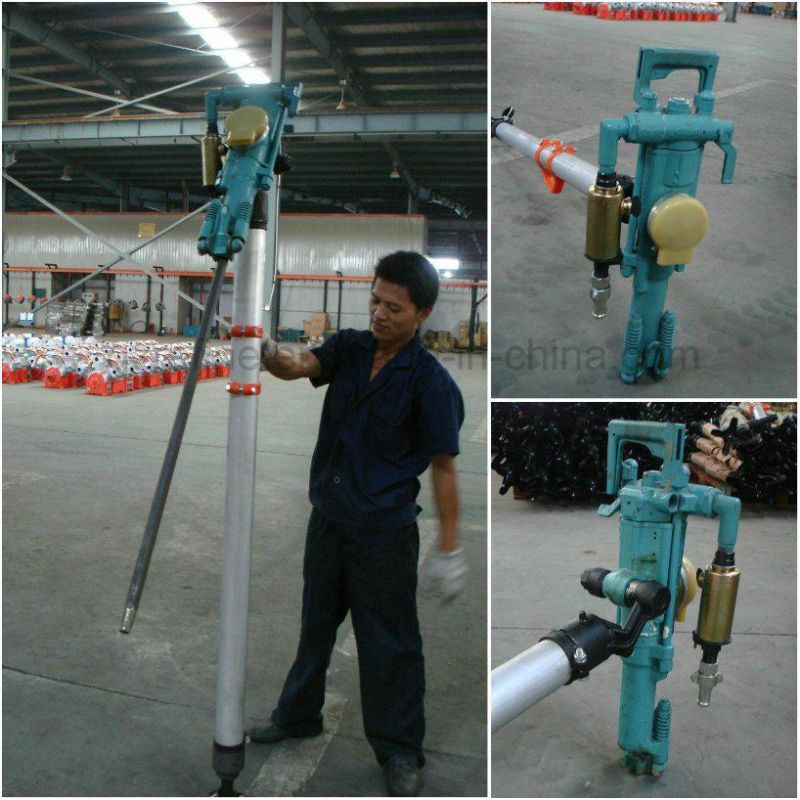

Assembled with air leg and drill rod
Kaishan YT28 Hand Hold and Air Leg Pneuamtic Rock Drill

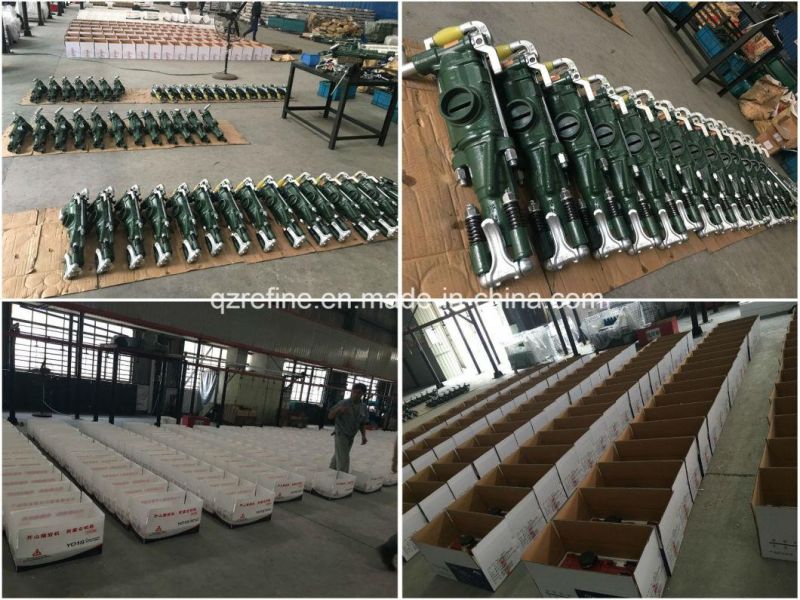

Rock drills/Jack hammer assembled in our workshop:
Kaishan YT28 Hand Hold and Air Leg Pneuamtic Rock Drill

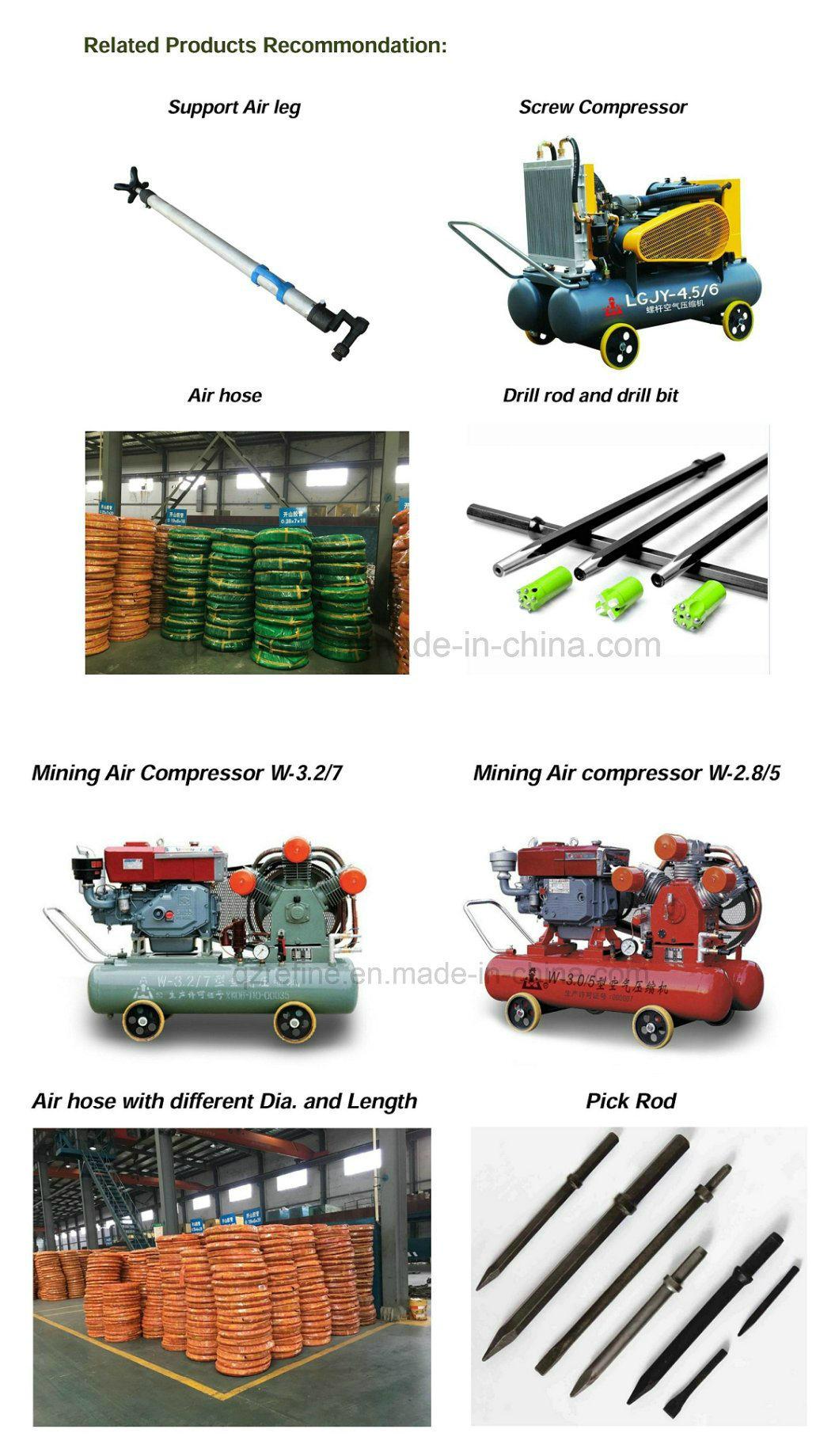

You may also interested in below items:
Kaishan YT28 Hand Hold and Air Leg Pneuamtic Rock Drill

About KAISHAN GROUP:
       KAISHAN Group is located in Quzhou City Zhejiang Province, which covers an area of 514,800 square meters with total assets of one billion dollars. There are more 6000 staffs, including 1075 technicians serving for this group company.
       Zhejiang Kaishan Compressor Co., Ltd. is the largest compressor and pneumatic tools manufacturer in China. In year 2010 it produced and delivered a total amount of 27,000pcs screw compressors units and 200,000pcs piston compressors units for domestic and oversea marketing.
       We are over 50 years professional manufacturer of air compressor and drilling tools and we are approved with CE, ISO9001, ISO14001, ASME, GC Energy saving certificate etc.
Kaishan YT28 Hand Hold and Air Leg Pneuamtic Rock Drill




FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
