• Model NO.：JK-DR400
• Type：Crawler
• Usage：Water Well
• Voltage：24V
• Weight：10t
• Warranty：1 Year
• Power Type：Diesel
• Product Name：Water Well Drilling Rig

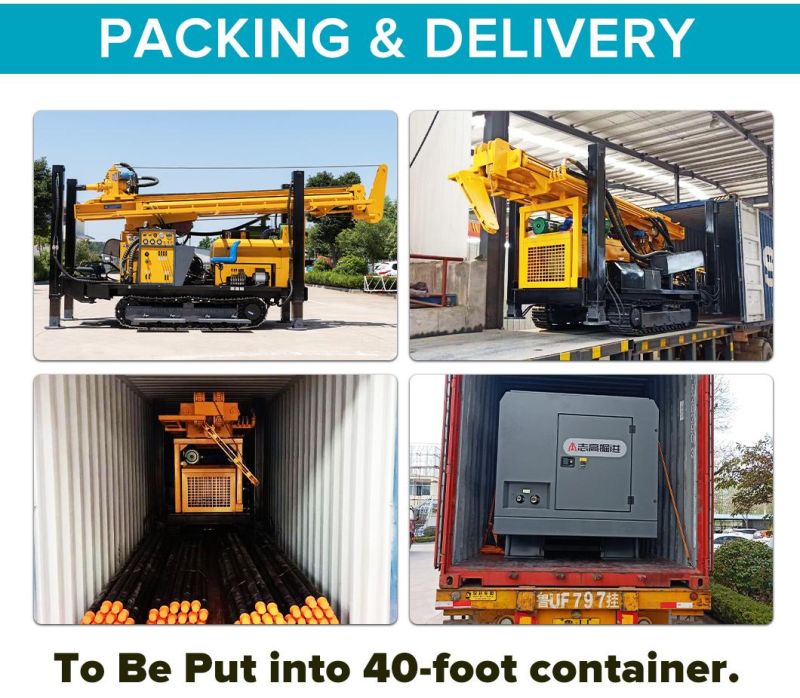

• Transport Package：40hq
• Specification：5900*2100*2850mm
• Trademark：SDJK
• Origin：Shandong
• HS Code：8430412100
• Production Capacity：100sets,Month

Basic Info.

Model NO. JK-DR400 Type Crawler Usage Water Well Voltage 24V Weight 10t Warranty 1 Year Power Type Diesel Product Name Water Well Drilling Rig Transport Package 40hq Specification 5900*2100*2850mm Trademark SDJK Origin Shandong HS Code 8430412100 Production Capacity 100sets/Month

Product Description

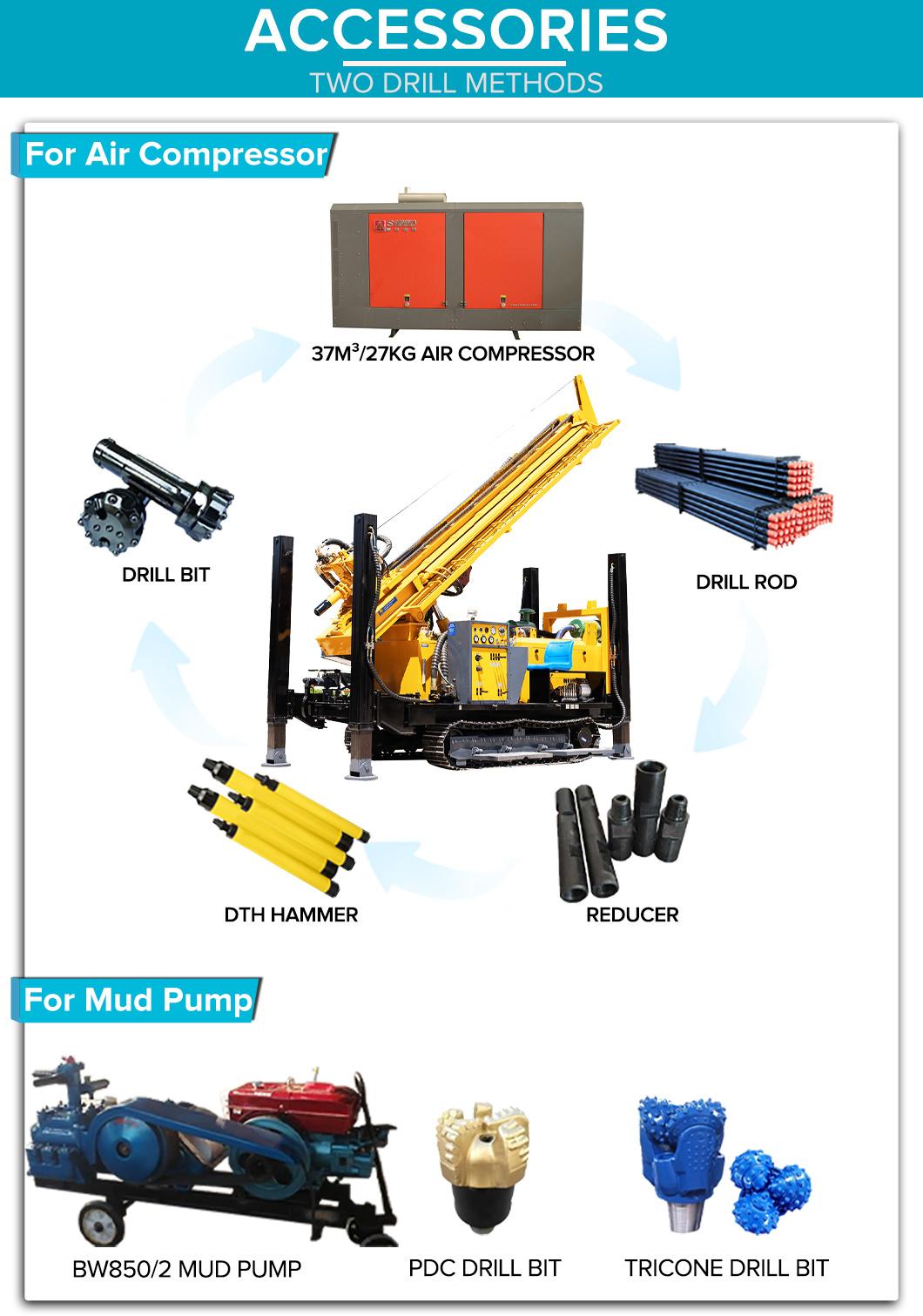

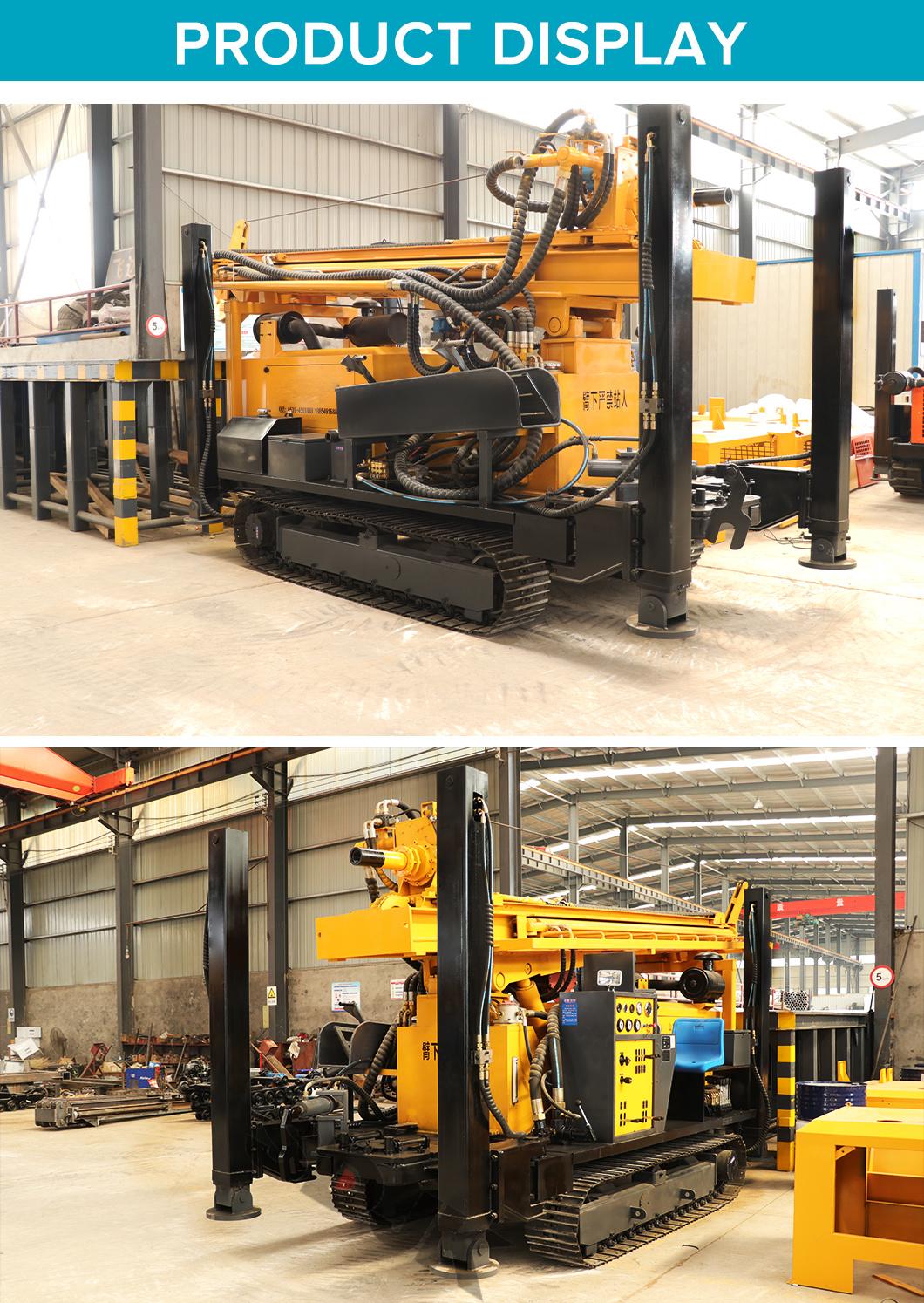

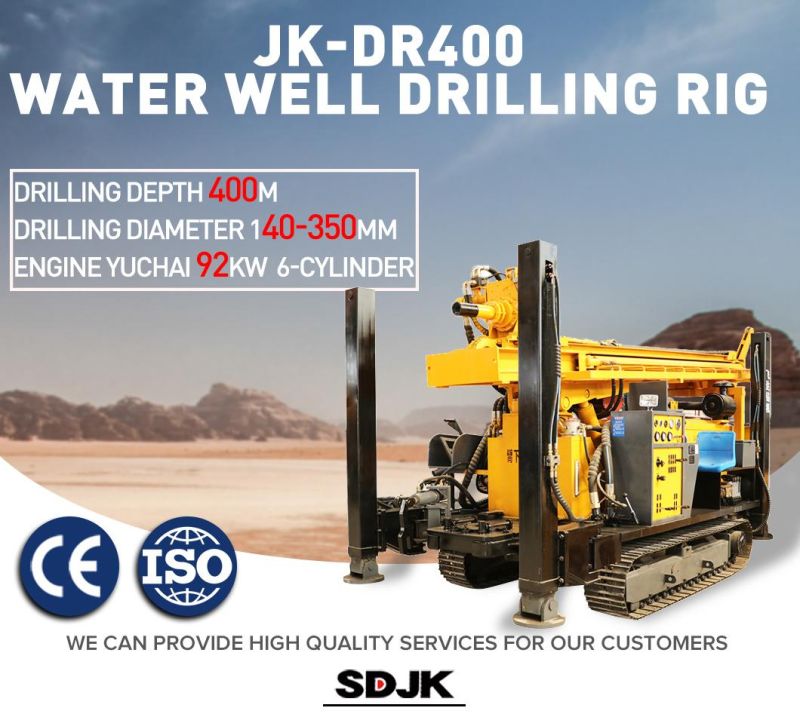

The JK-DR400 DTH drilling rig with AC(Air Compressor) method is capable of drilling upto 219mm diameter holes for pore-forming purposes to a depth of 400 meters.

JK-DR series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.

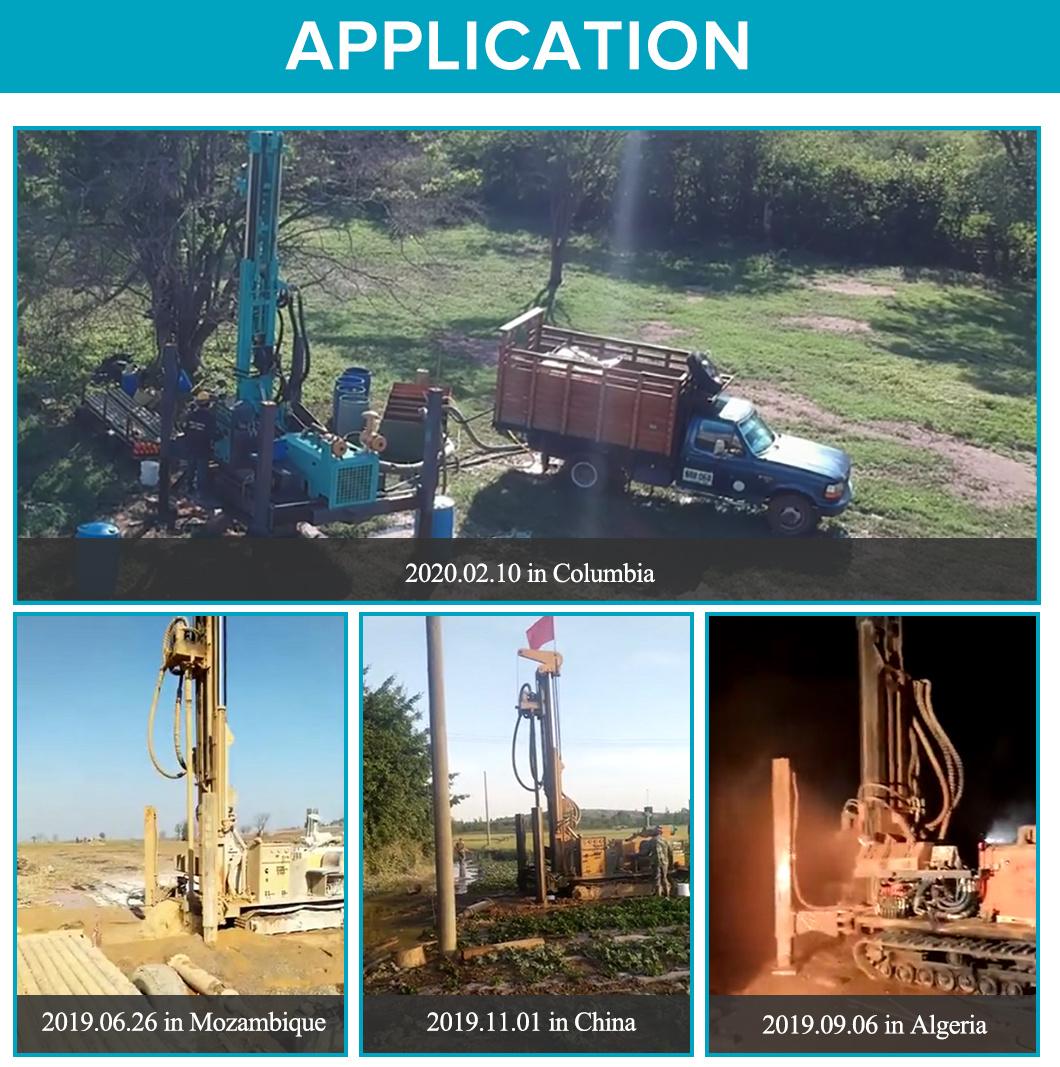

This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.

Model & Name	JK-DR400	Travelling speed	2.5km/h
Weight	10 Ton	Gradeability	30%
Dimensions(mm)	5900*2100*2850mm	Rated pressure	1.7-3.5 MPa
Power Oil	Diesel	Air consumption	17-35 m³/min
Engine Model	YUCHAI	Drill rod diameter	Φ89 / Φ102 / Φ108 mm
Rated Power	92 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	25 Ton

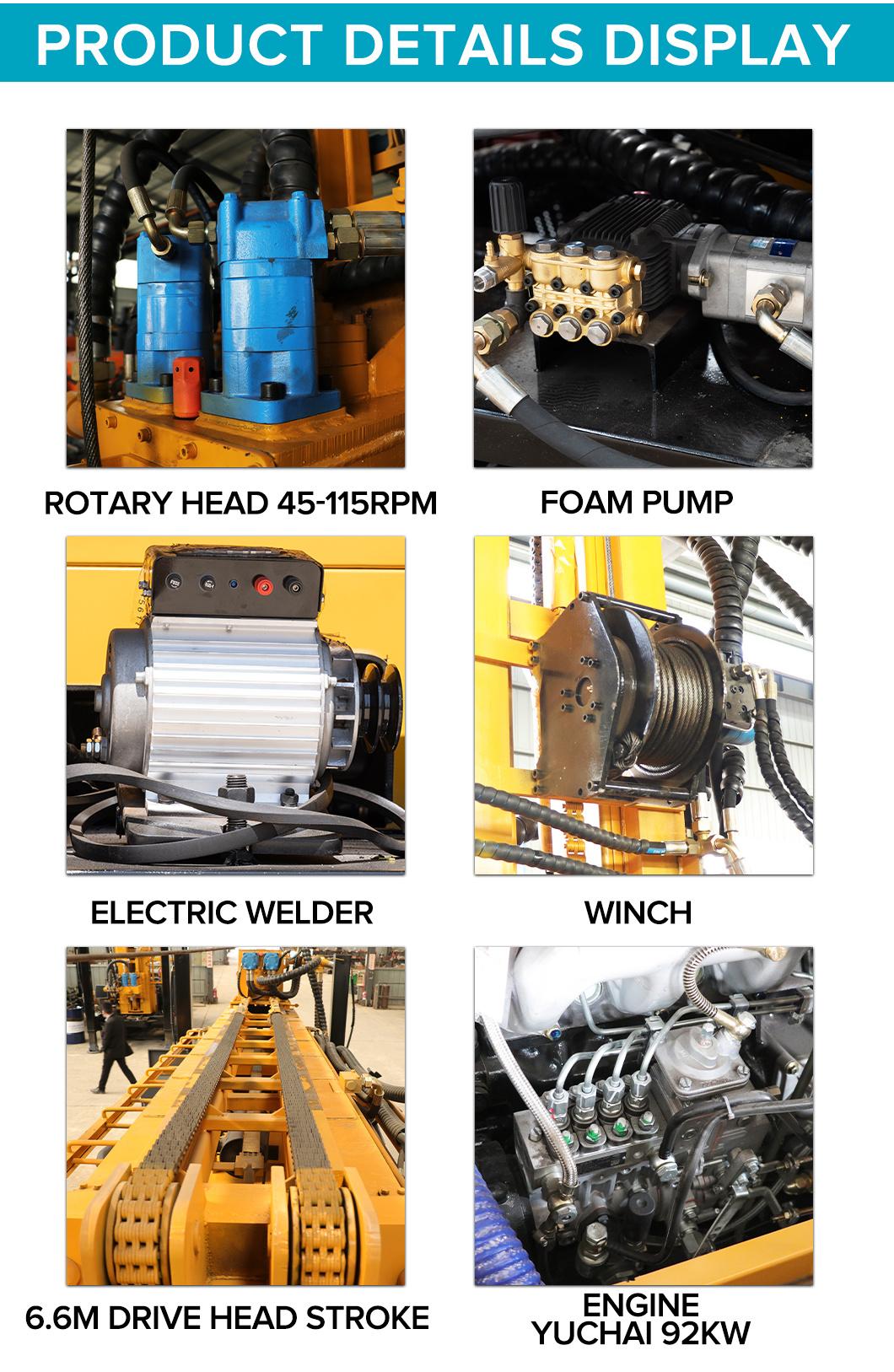

Drilling depth	400m	Swing speed	45-115rpm
Bore diameter	140-350mm	Swing torque	6500-9000 N.m
Drive Head Stroke	6.6m
