KAISHAN KG920BHIII DTH Drilling Machine with Dust Collector
Quzhou Refine Machinery Equipment Co., Ltd.- After-sales Service：one year
- Warranty：6 months
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：Diesel engine
- Drill Hole Diameter：<100mm
Base Info
- Model NO.：KG920BHIII
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Power：YC4D80 4cylinders
- Bore Depth：>20m
- Bore Dia.：>80-115mm
- Air Consumption：9-16m3,min
- Working Pressure：10-17bar
- Rotation speed：0-70rpm
- Max. Push power：15000N
- Dimension：5500X2200X2300mm
- Weight：4000KG
- Usage：Coal, Ore, Water Well, Quarry
- Transport Package：Plastic Paper
- Specification：DTH drilling rig
- Trademark：KAISHAN
- Origin：Zhejiang, China
- HS Code：84304129
- Production Capacity：1000PCS,Month
Description
Air compressorModel No: KSCY550/13 Kaishan brand Air capacity(m³/min/cfm) 15.7(550CFM) Work pressure(Bar/Psig) 13(188CF)

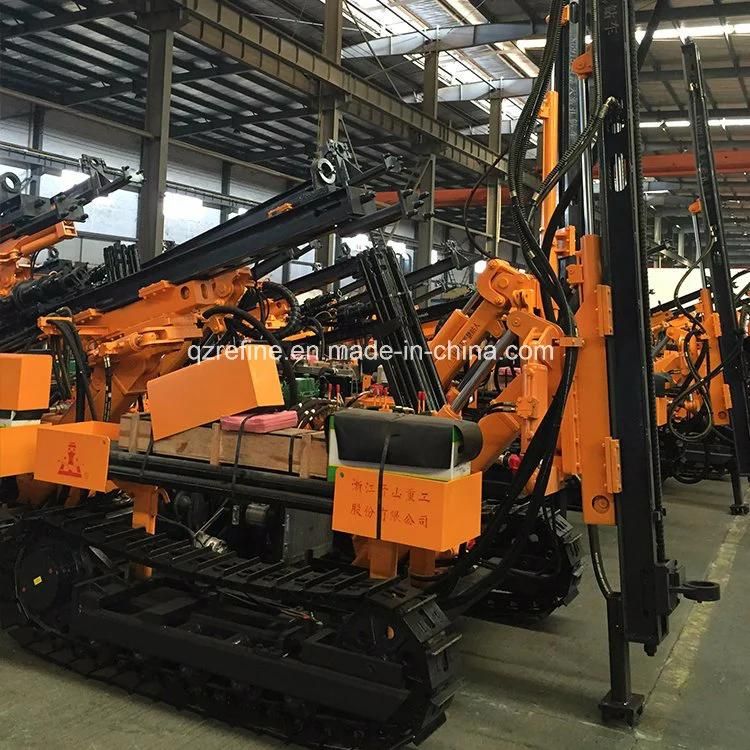

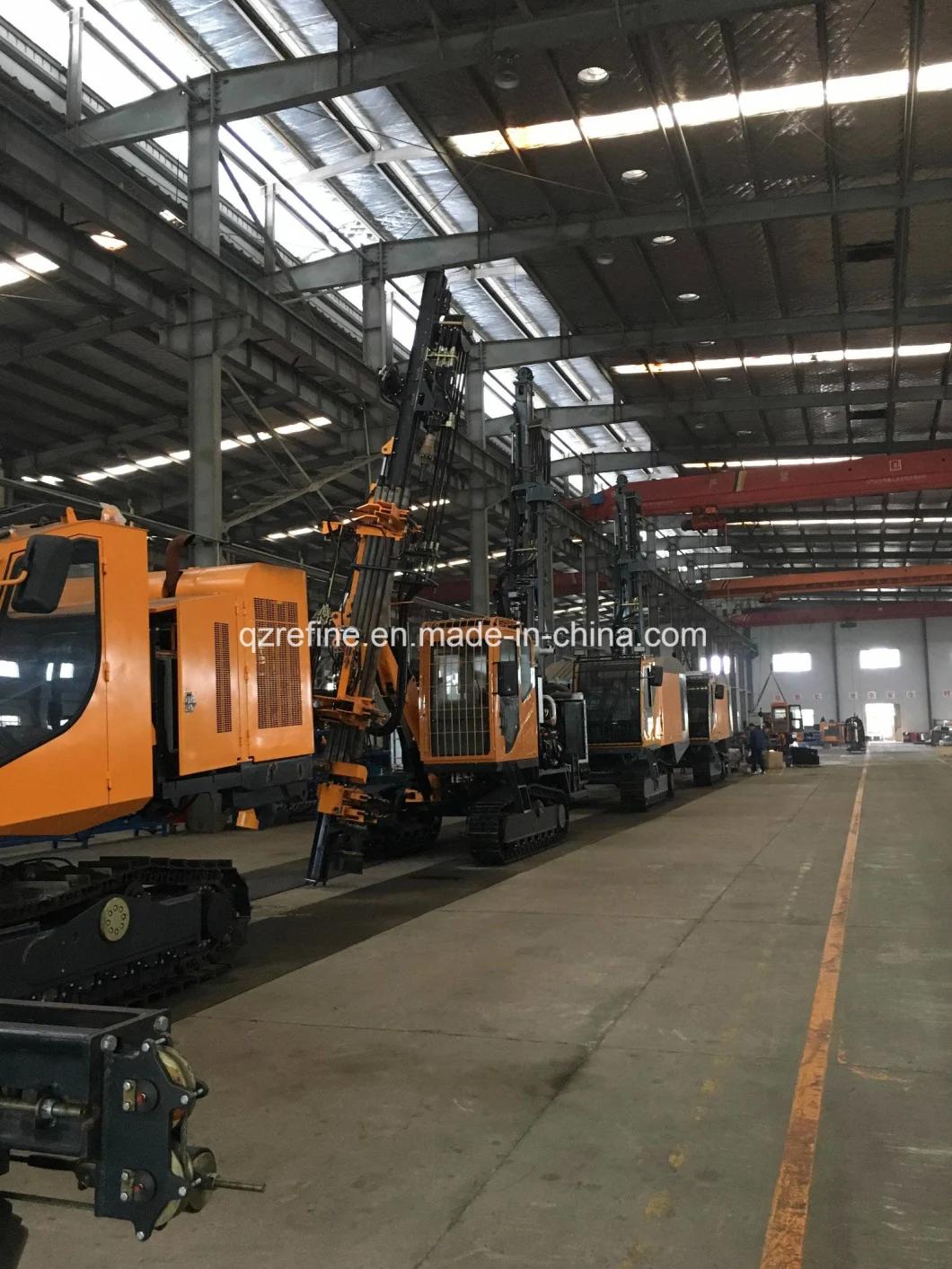

Drilling Rig in workshop

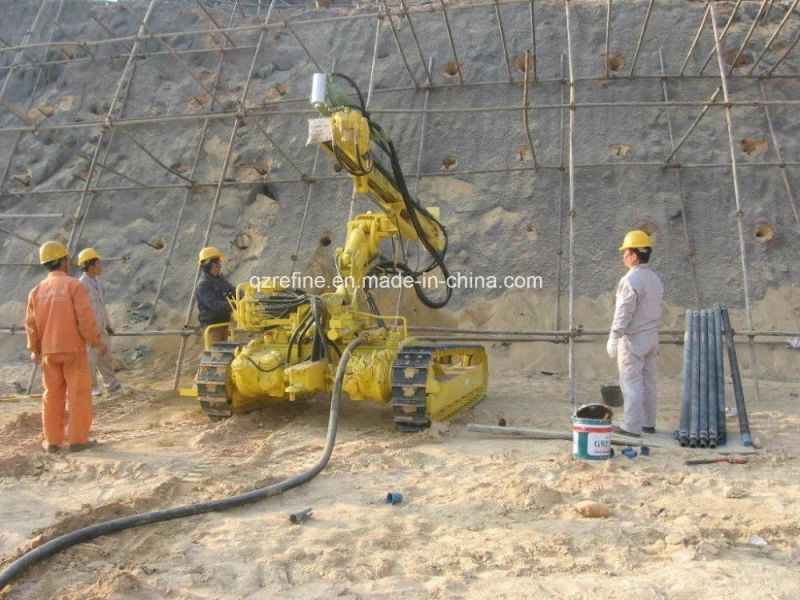

Drilling rig in testing.

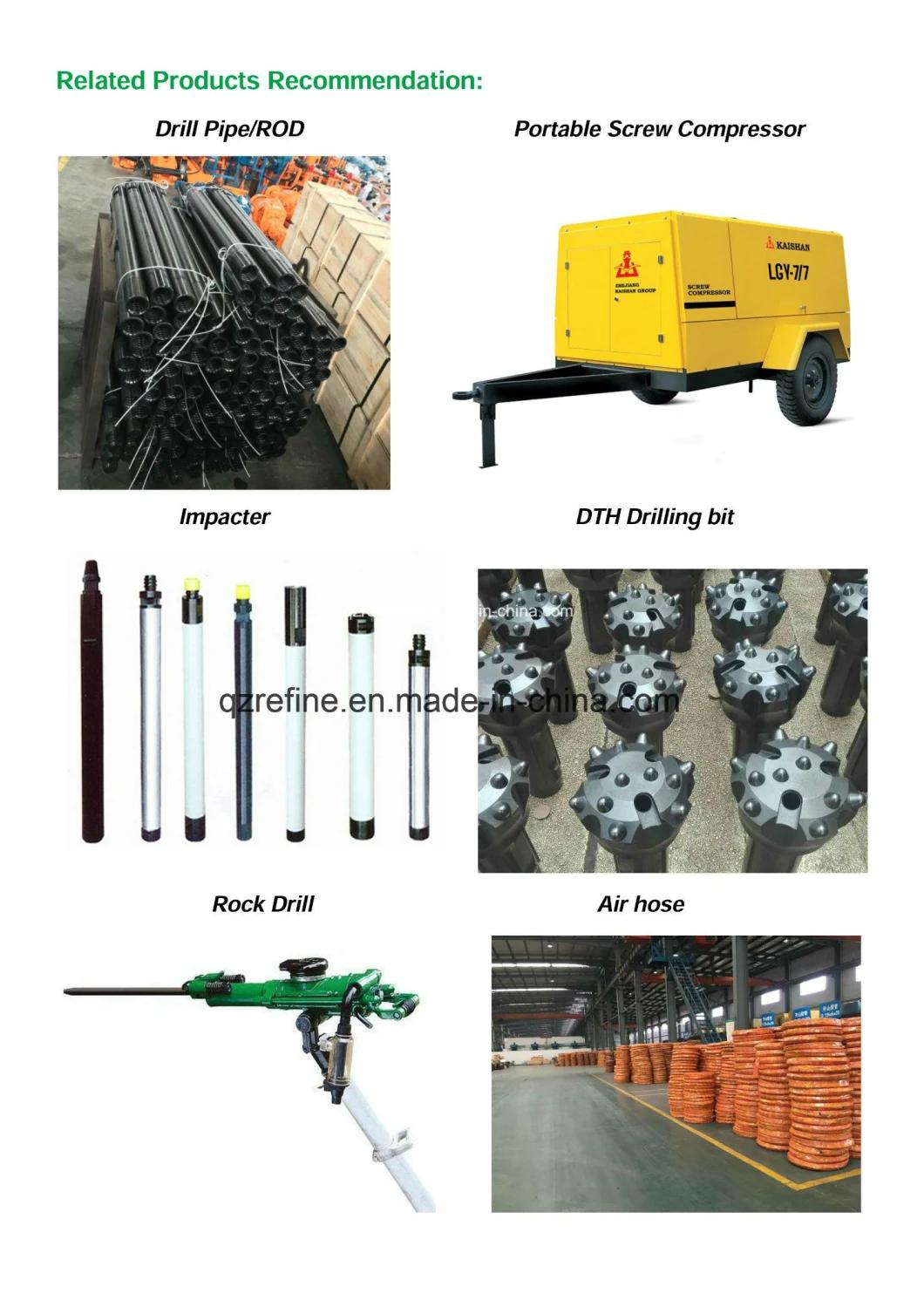

You may also interested in the drilling tools like drill rod, hammer, drill bit...etc.

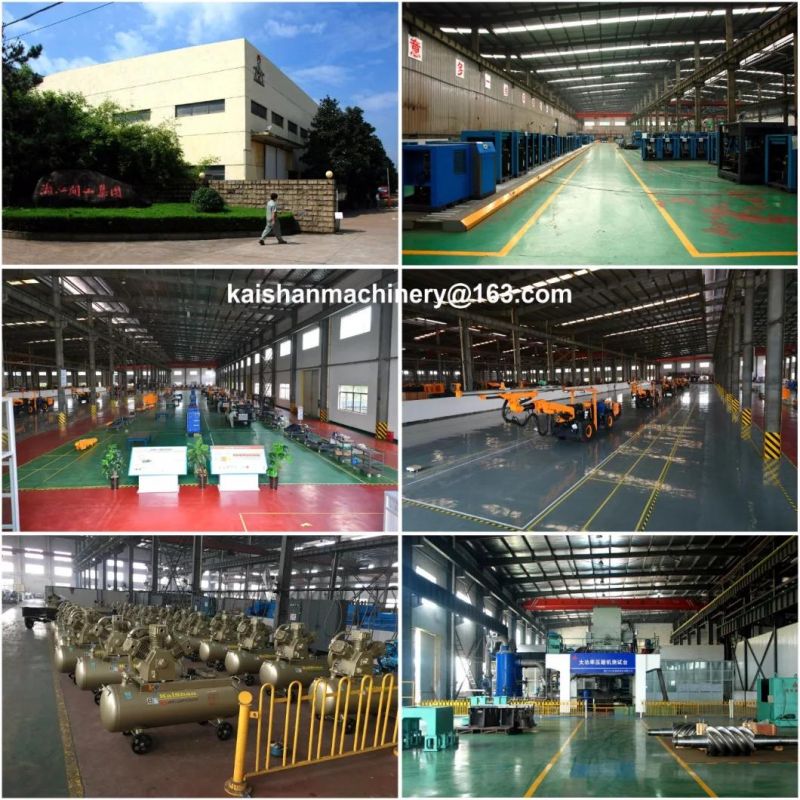

About KAISHAN GROUP:
FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
