Hydraulic/Pneumatic Excavator Mounted Rock Drill Attachment, Mast Drill

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • After-sales Service：1year
  • Warranty：1year
  • Certification：CE
  • Condition：New
  • Motor：Hydraulic
  • Drill Hole Diameter：32-102mm

Base Info

  • Model NO.：PD-90
  • Drill Hole Depth：<15m
  • Bit Type：Button Bit
  • Drilling Way：Impactor
  • Available Rigidity Rock：F=6-16
  • Drill Diameter：32-102mm
  • Drill Speed：500-1000mm,Min
  • Lowest Horizontal Hole Height：250mm
  • Once Propel Travel：3m
  • Compressor Type：1.8m3-3.2m3
  • Drifter Weight：90kg
  • Whole Weight：1.2t
  • Transport Package：Standard Package
  • Specification：CE
  • Trademark：PRODRILL
  • Origin：China
  • HS Code：82071990
  • Production Capacity：100pec,Months

Description

YQ30;ACL 5.0/8;YQ55



2.PD 90 Rock Drill Set:

The PD90 excavator drill attachment set included with a T45-3660mm drill rod , and a T45-Φ102mm drill bit,a screw air compressor set, a 5.2 m propulsion rail (total length 6.0 m), and a spare box. 1) 1PC/ PD-90 Excavator Mounted Rock Drill with hydraulic Driven Compressor 3m3,0.8Mpa. Excavator 20 Tons Required,One can enter the rod 2 meters deep, hydraulic drifter is China-made 300 type hydraulic rock drill, aperture 64-102mm,like JCB210 with YQ30 HYDRAULIC screw air compressor.2) Rock Drill Attachment Arm Length : Rail length 5.2 meters, total length 6.0 meters3) Without dust collection system.4) PD90 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.5) The rate of the Pump can reach 200L/min, drilling diameter 45-102mm, 3m depth per time drilling.Drilling speed: 1.5-3min/m for hard rock, 1min can drill 1m depth for soft rock.
Hydraulic/Pneumatic Excavator Mounted Rock Drill Attachment, Mast Drill



3.Consignation of Excavated Mounted(1) Multi function rail set(2) Imported hydraulic drifter(3) Moving System(4) Dust collection(5) Rock drilling tools(6) Piston type air compressor

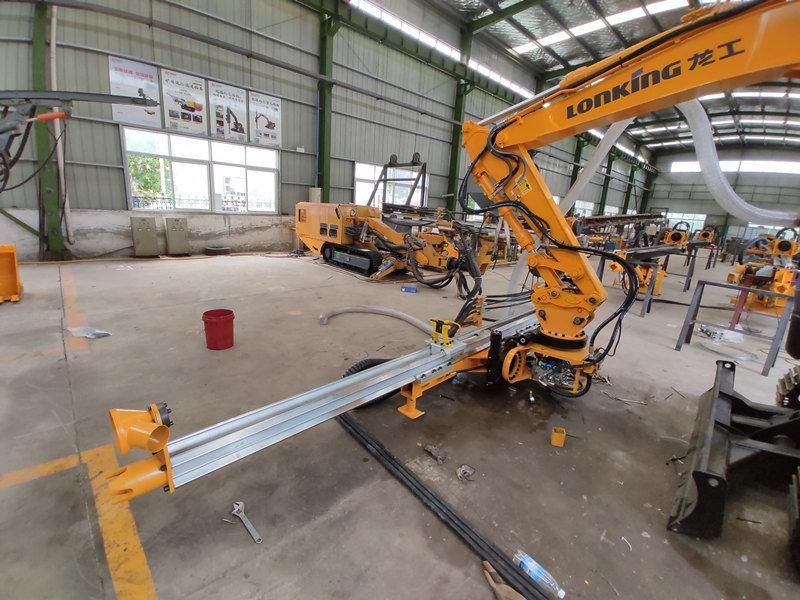

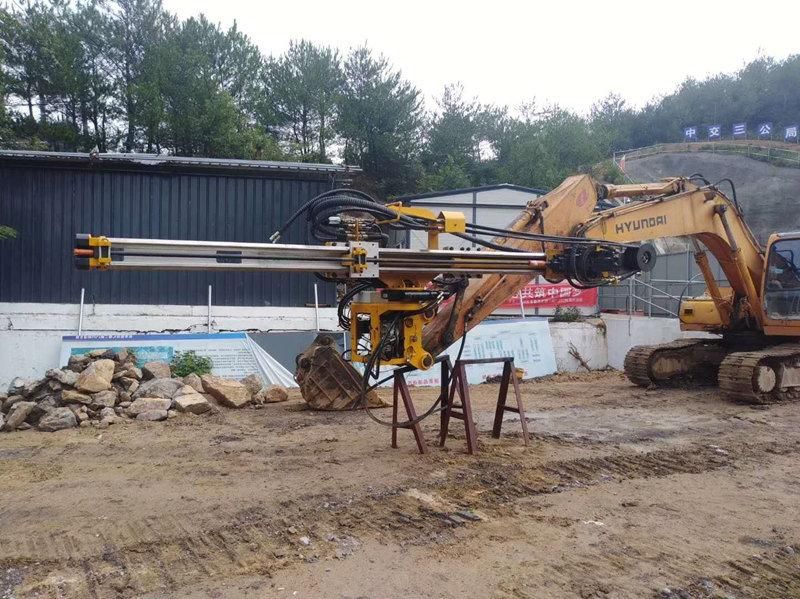

4.PD90 Excavator Mounted Rock Drill

Hydraulic/Pneumatic Excavator Mounted Rock Drill Attachment, Mast Drill
Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 85% against the original products
B. Price are competitive against the famous brands and best quality against the small factory


About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 15 years.
2. We have advanced technology and equipment.
3. Our technician has more than 15 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
