Zhongyuan Pneumatic Down The Hole DTH Drilling Machine

Fujian Ningde Aqt Imp. & Exp. Co. Ltd
  • After-sales Service：Good-Quality Technical Services
  • Warranty：1 Year
  • Certification：CE, ISO
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：90mm

Base Info

  • Model NO.：ZY-100DTH-P
  • Drill Hole Depth：0-30m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Drilling Direction：Any Direction
  • Transport Package：Plywood
  • Specification：600kg
  • Trademark：Stonewin
  • Origin：Xiapu, Fujian, China
  • HS Code：8430412900
  • Production Capacity：1000sets Per Year

Description

 ZY-100DTH-P PNEUMATIC DEPTH
DRILLIING MACHINEMODELUNITZY-100DTH-PDRIVING SYSTEMKW3.0KW AIR MOTOR
1.5KW AIR MOTORDIAMETER OF DRILL HOLE(MM)Φ90MAX.DEPTH OF DRILL HOLE(M)30SPEED OF DRILLING(M/H)6-8MIN.AIR PRESSURE(Mpa)0.6-0.7AIR CONSUMPTION(M³/MIN)8-10SINGLE FEEDING DISTANCE(M)1DRILLING DIRECTION ANY DIRECTIONNET WEIGHT(KG)600Functions and Features:

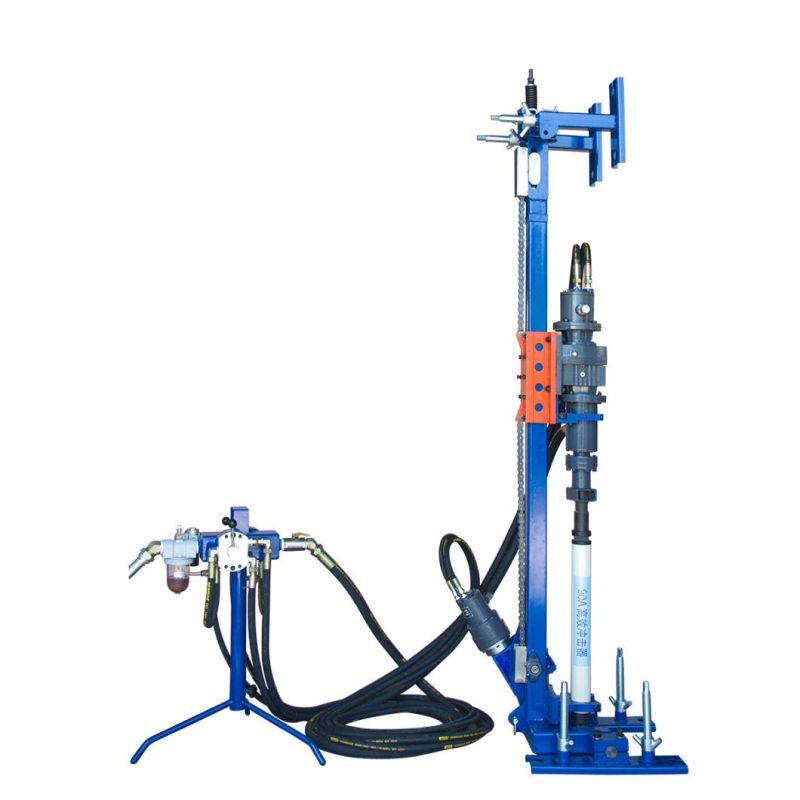

The DTH drilling machine is used for drilling large diameter horizontal, vertical, and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machines during stone quarrying. The machine is controlled by compressed air motors. And the pneumatic units are in a high-quality standard. The machine has the following features: low compressed-air consumption, high drilling efficiency, light in weight, easy operating and installing, etc. The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor. And the machine has a particular design for guiding drilling.
Zhongyuan Pneumatic Down The Hole DTH Drilling MachineZhongyuan Pneumatic Down The Hole DTH Drilling MachineZhongyuan Pneumatic Down The Hole DTH Drilling Machine
