Xr180d Pililng Machine Crawler Rotary Drilling Rig

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：Spare Parts for Free
  • Warranty：One Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：50-70m

Base Info

  • Model NO.：XR180D
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Weight：56000kg
  • Engine：Cummins
  • Efficiency：194kw
  • Piling Speed(M/Min)：27km, H
  • Transport Package：by Roro, Bulk Cargo or Container Transprot
  • Specification：14255*2960*3450mm
  • Trademark：NEWINDU
  • Origin：Jiangsu, China
  • HS Code：8479109000
  • Production Capacity：50 Uint, Month

Description

Project  Max.Drilling DiameterUncased(mm)φ1800Cased(mm)φ1500Max.Drilling Depth(m)60DimensionWorking condition L × W × H(mm)8350×4200×20480Transportation condition L × W × H(mm)14255×2960×3450Overall Drilling Weight(t)56EngineModel-CUMMINS QSB6.7-C260Rated Power(kW)194/2200Hydraulic SystemWorking pressure(MPa)35Rotary DriveMax. output torque(kN.m)180Rotary speed(r/min)7~27Spin off speed(r/min)102Pull-Down CylinderMax.pull-down piston push(kN)160Max.pull-down piston pull(kN)180Max.pull-down piston stroke(mm)5000

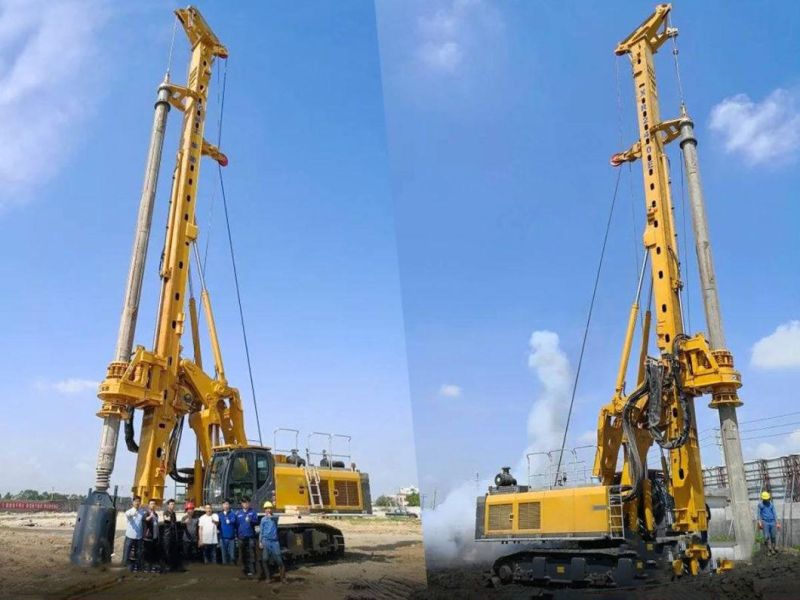

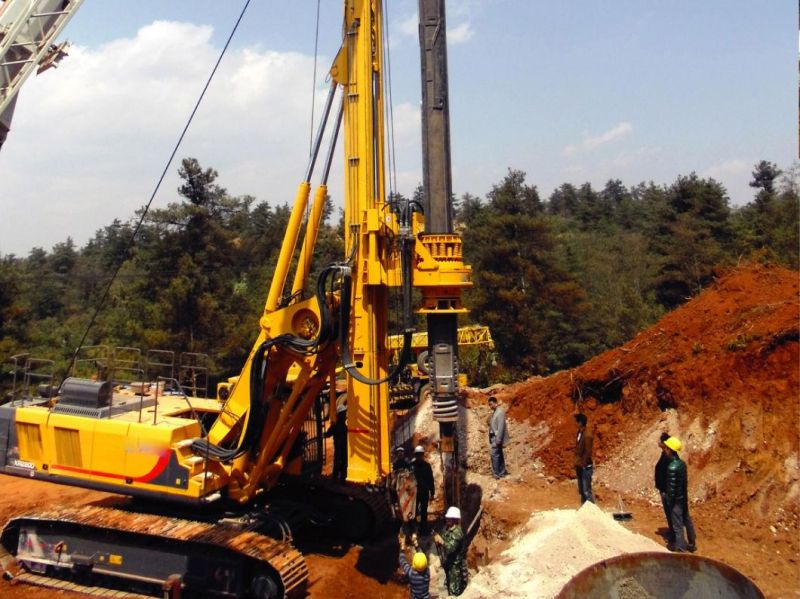

Pictures

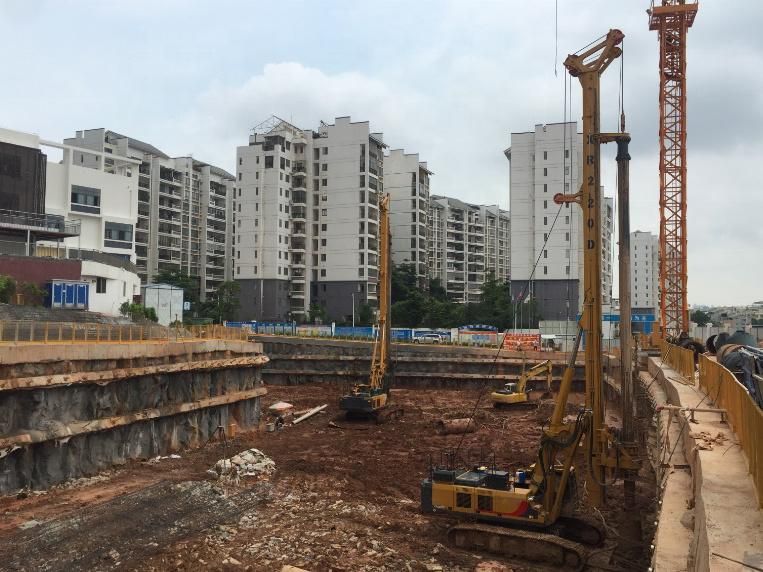

Xr180d Pililng Machine Crawler Rotary Drilling RigXr180d Pililng Machine Crawler Rotary Drilling RigXr180d Pililng Machine Crawler Rotary Drilling RigXr180d Pililng Machine Crawler Rotary Drilling RigXr180d Pililng Machine Crawler Rotary Drilling Rig
