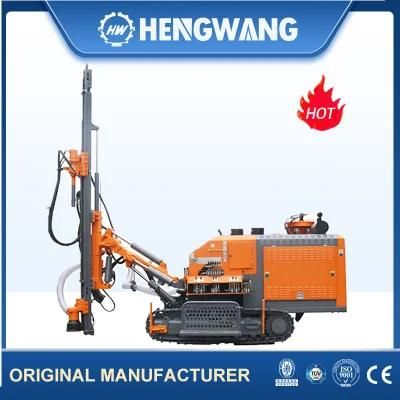

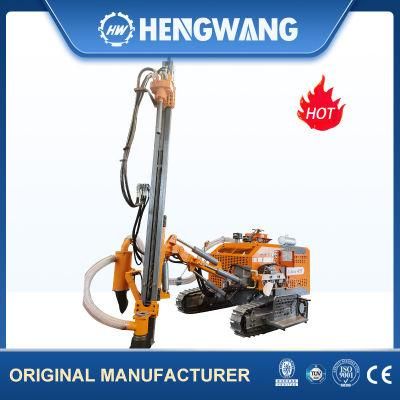

40m DTH Mine Rock Surface Drill Rig Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
Base Info
- Model NO.：40m
- Drill Hole Depth：<100m
- Bit Type：Hammer Bit
- Drilling Way：Impactor
- Model：Hw421t
- Transport Package：FCL
- Specification：40M
- Trademark：Hengwang
- Origin：China
- HS Code：8430419000
- Production Capacity：1000 Sets Per Month
Description
Main technical specifications
Power
Yuchai YC6J220 162 kW
Hole Depth
20m
Drill Pile Sizes
60 mmX3000 mm
Hole Dia
80-115mm
DTH Hammer
3.5"
Rotation Torque (Max.)
1650N.m
Rotation Speed
0-110 rpm
Working Pressure
14.5 bar
F.A.D
12 m3/min
Tramming Speed (Max.)
2/3 km/h Dual Speed
Gradient
30°
Track Frame Oscilation
±10°
Total Weight
6,800 kg
Transportation Dimensions
6,000X2,800X2,750 mm
Dry Dust Collector
Standard
Dual Speed Walking Motor
Standard
