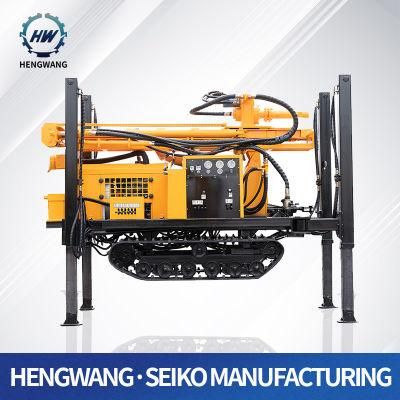

Mini Track Mounted Pneumatic Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：30-50m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HW-S30
  • Drilling Way：Rotary
  • Max. Drilling Depth：30m
  • Advantage：Include Small Air Compressor
  • Drilling Method：Pneumatic Hammer Drilling
  • Pneumatic Hammer Drilling：Gasoline,Diesel
  • Transport Package：Stardard Export Packing
  • Specification：1.2CBM
  • Trademark：HW
  • Origin：China
  • Production Capacity：3000pieces,Month

Description

Model HW-S30Drilling depth 30mDrilling methodpneumatic hammer drillingScrewdrilling
and mud drilling(alternative)Drilling
diameter  pneumatic hammer
drilling  rock70-90mm,soil75-95mm 75-90mmdrill rod(Dia*Length)  pneumatic hammer
drilling Φ 60×1500mmPower headTorque  800-900 N.m Drilling speed 0-135 r/minDrilling pressuriza
tion and lifting Feed pressure 5500-6000 NLifting power12-16 KnMax lifting speed0.71-0.81 m/sMain engine power/speed26kw /3600 rpmhydraulic systemFlow 0-60 L/min Working pressure20 Mpaair compressorType/QuantityPiston/1 unit            ScrewFlow  3.5 m3/min                 3.8m3/minPressure 0.8 MpaEngine power/speed26 kw /3600 rpmMini Track Mounted Pneumatic Drilling Rig
Mini Track Mounted Pneumatic Drilling Rig
