• Drill Hole Depth：30 Meters
• Bit Type：DTH Drill Bit
• Drilling Way：Impactor
• Climb Ability：30 Degree
• Air Pressure：7-14 Bar
• Air Consumption：7-15 M3,Min
• Engine Power：33kw
• for Rock：6-20 F
• Weight：2900 Kg
• Transport Package：Standard Shipping Packing
• Specification：4300mm*2130mm*2160mm
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：300 Sets, Year

Basic Info.

Drill Hole Depth 30 Meters Bit Type DTH Drill Bit Drilling Way Impactor Climb Ability 30 Degree Air Pressure 7-14 Bar Air Consumption 7-15 M3/Min Engine Power 33kw for Rock 6-20 F Weight 2900 Kg Transport Package Standard Shipping Packing Specification 4300mm*2130mm*2160mm Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Product Introduct
Hydraulic Rotary Blast Hole Drilling Rig Mining Drilling Rig
CTQ-D100YA2-2F crawler hydraulic drilling rig, adopts new type hydraulic rotary motor, has high rotary speed, large torque and low failure rate. This rig has low air consumption, convenient for shifting holes, uses air filter and oil filter total  three-stage filters to reduce engine wearing , increase working life of the diesel engine. The rig structure is compact, the minimum moving radius is 2.8m, and the skid mast has compensation function. when drilling, the skid mast supported on the ground that guarantee good drilling stability.
The drilling rig is mainly capable for open mining, water conservancy, power plants, road building and other rock blasting holes drilling.Technical Parameters

Bore diameter(mm)	90-130
Bore depth(m)	30
Walk speed(km/h)	2
Once promotion(mm)	2000
Grade ability (°)	30
Air pressure(Mpa)	0.7-1.4
Chassis ground clearance(mm)	260
Air consumption(m³/min)	7-15
Skid pitch(°)	Up,Down Total 100
Host Power (Kw)	33
Skid tilt swing (°)	Left 35,Right 10
For rock(F)	6-20
Skid compensation(mm)	900
Dimension(L*W*H)(mm)	4300*2130*2160
Weight(Kg)	2900

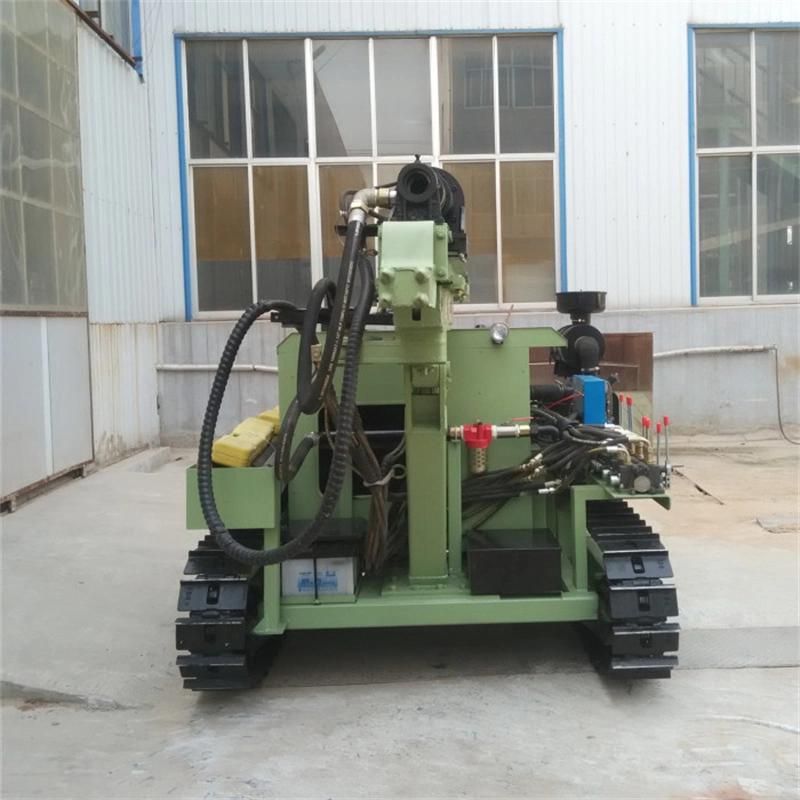

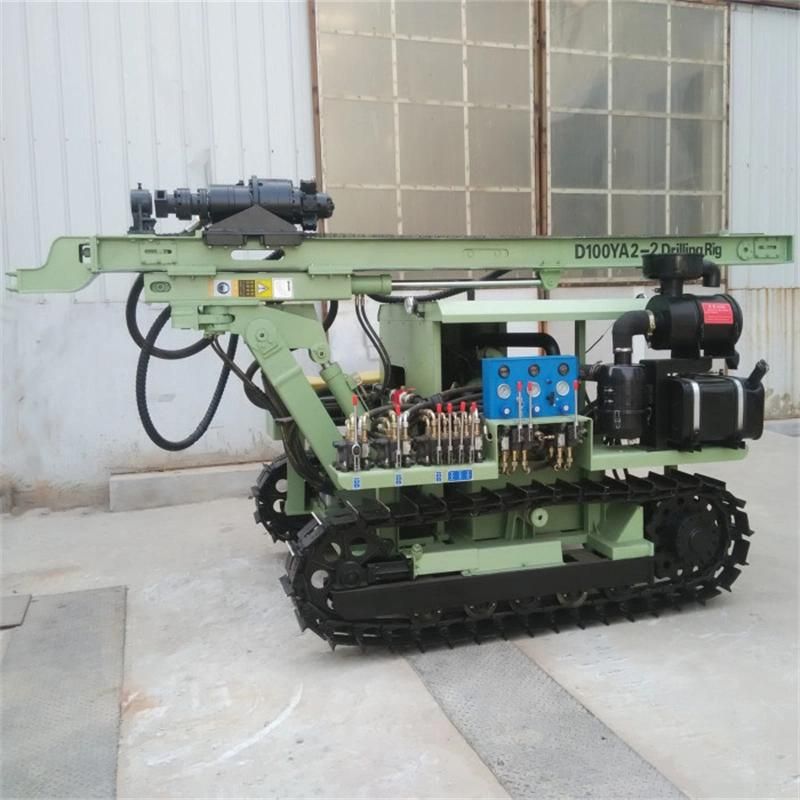

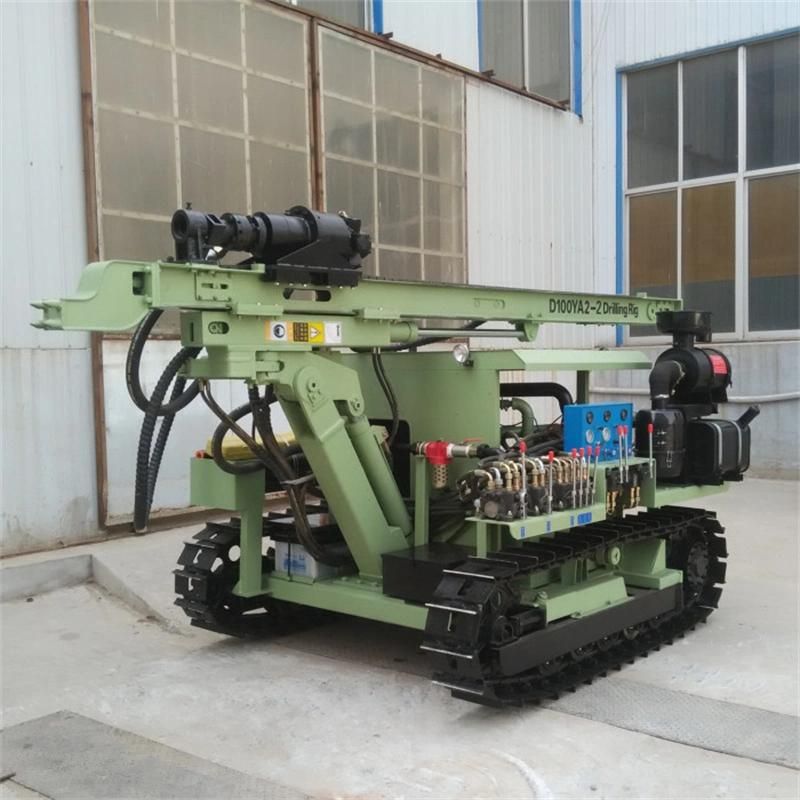

Product Display

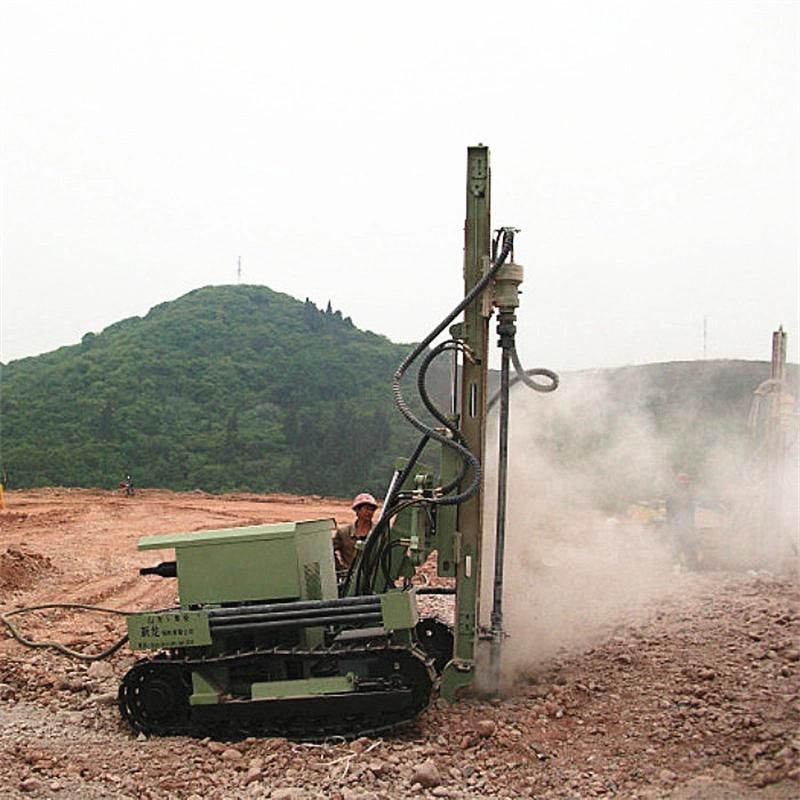

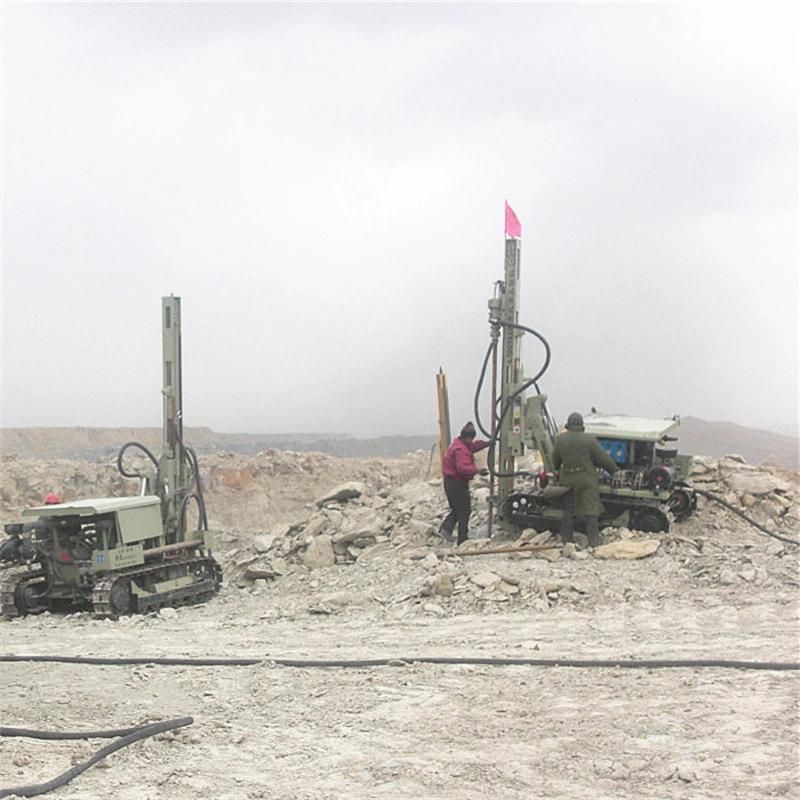

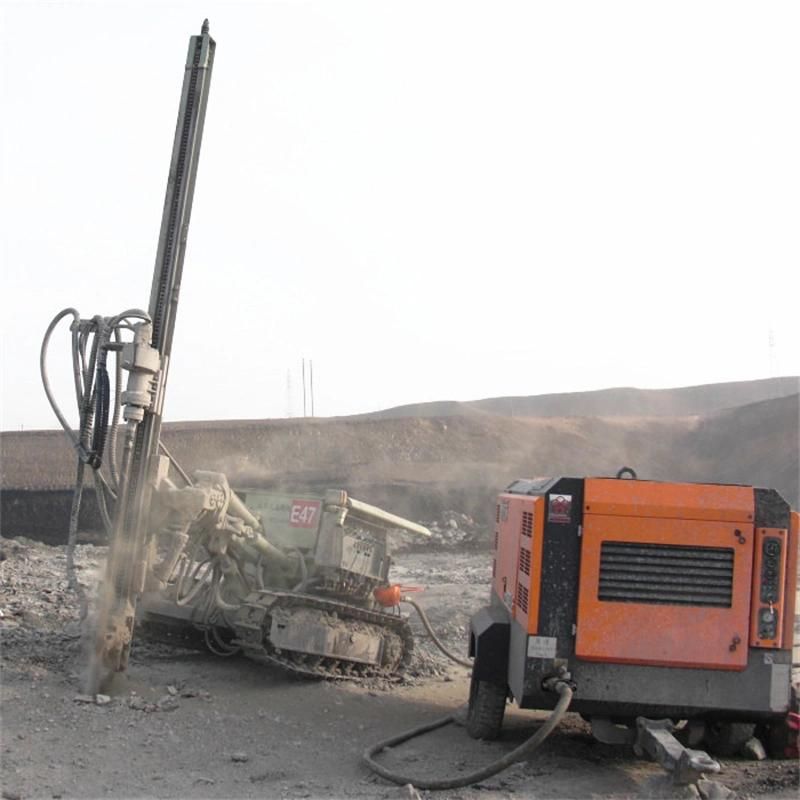

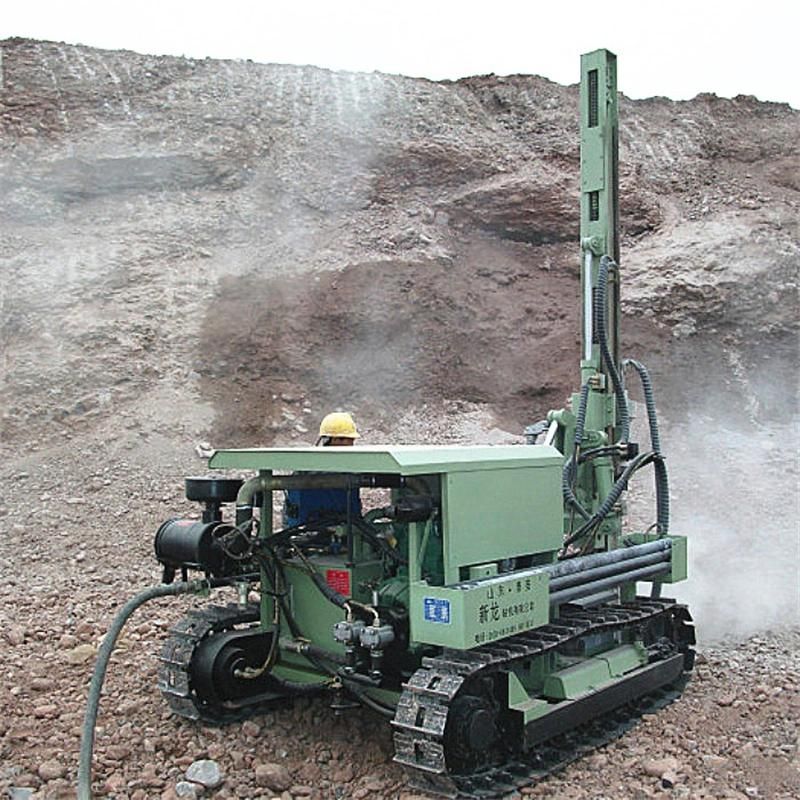

Product Application


Company Profile

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.


 Customer Visit

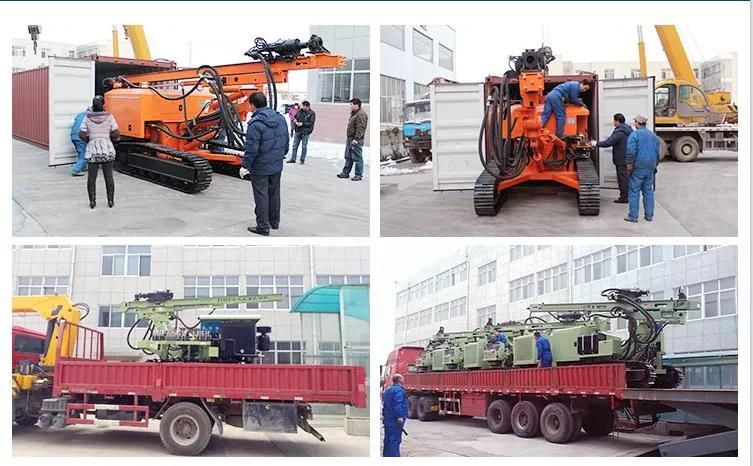

Shipping and Package


FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for  operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year  for the machine.
