• Model NO.：XY-100
• Drilling Way：Rotary
• Type：Diesel
• Transport Package：Wooden Case
• Specification：weight 510kg
• Trademark：Bafang
• Origin：Shandong China
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. XY-100 Drilling Way Rotary Type Diesel Transport Package Wooden Case Specification weight 510kg Trademark Bafang Origin Shandong China Production Capacity 10000pieces/Year

Product Description

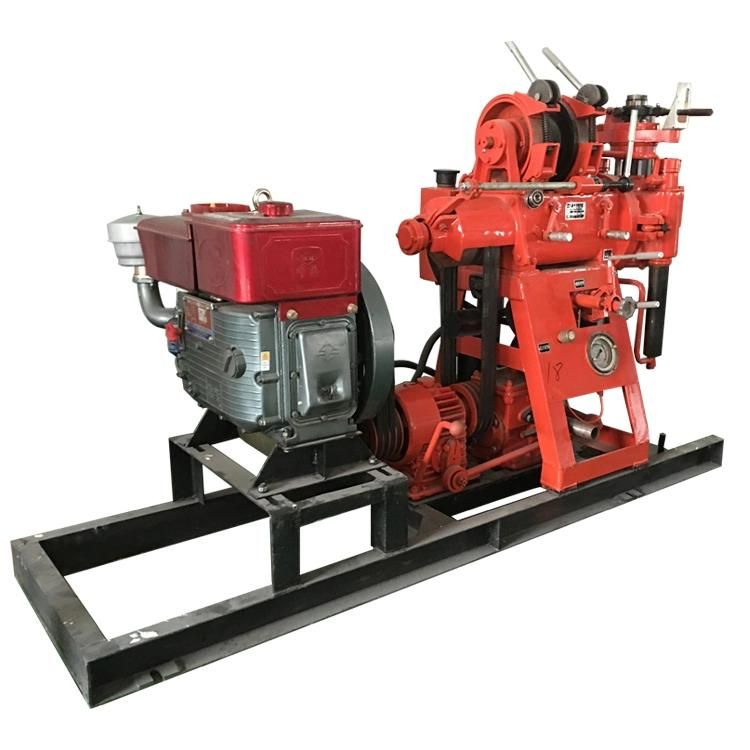

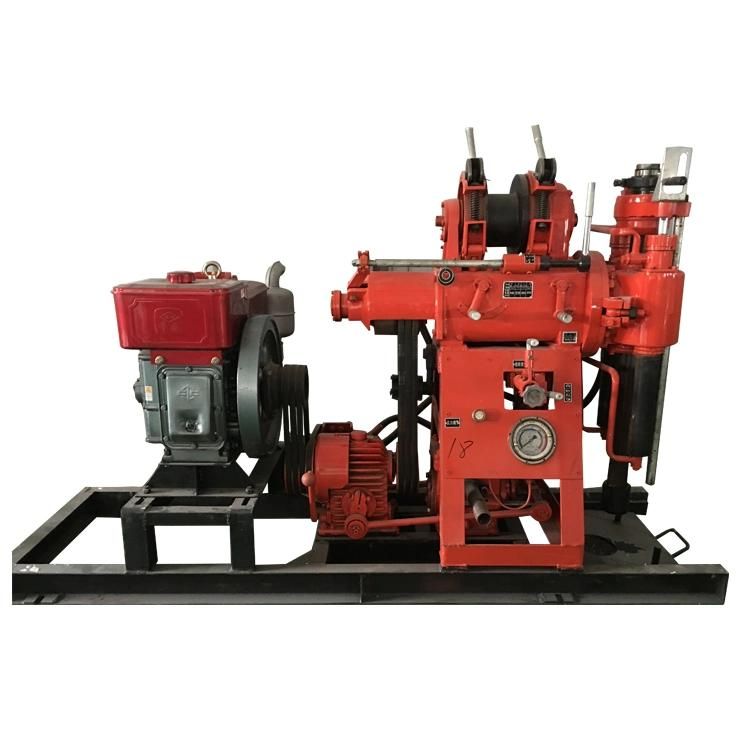

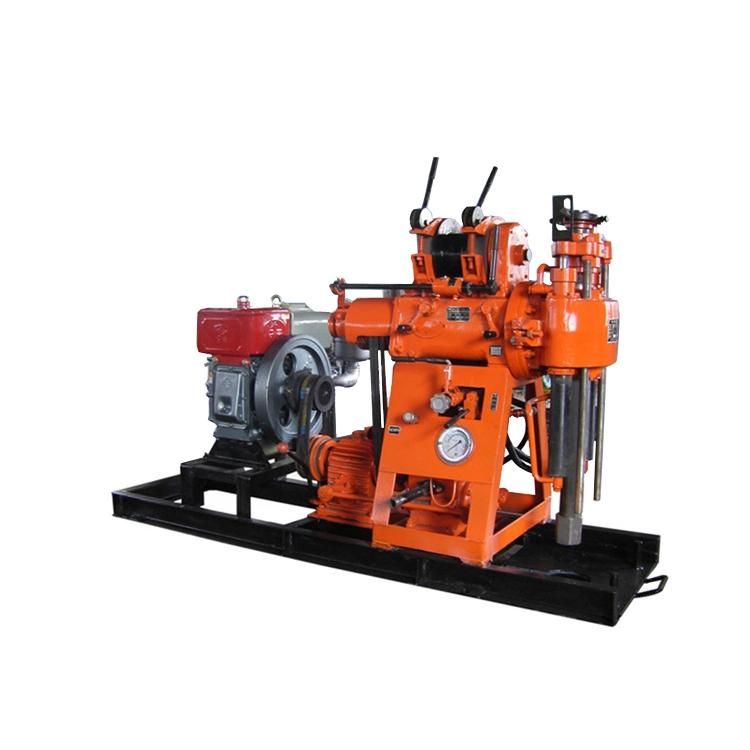

China supplier XY-100 Portable
used water drilling rig used for wells
 Specifications:
Water Well Core Drilling Machine
Drilling Depth:100m
Drilling diameter; max 200mm

Instrustion:
Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

With hydro-automatic feeding device, and high drilling efficiency.

Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.

Close levers, convenient to operate, safe and reliable operations.

Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.

Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas

Depth of drilling (m)	100
Maximum opening diameter (mm)	200
Final hole diameter (mm)	73
Hydraulic pump pressure (Mpa)	1.2
Hydraulic pump speed (r/min)	1500
Vertical shaft speed (r/min)	142,285,570
Vertical axis stroke (mm)	450
Promotion ability (KN)	9.8
Maximum pressure (MPa)	3
Working pressure (MPa)	1.5
Displacement (L/min)	170
Rig angle	75°~90 °
Drill weight	510kg
