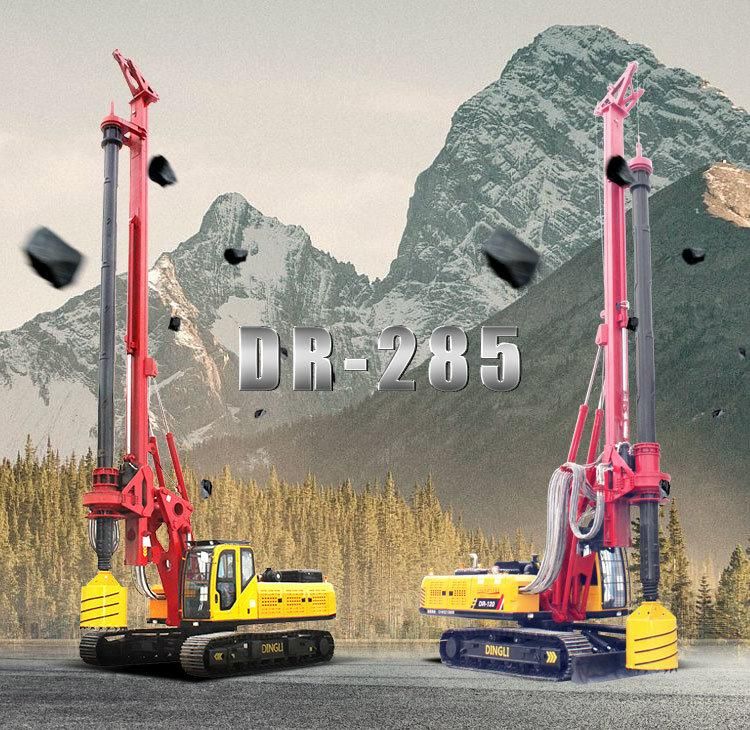

Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m

Shandong Tenggong International Trade Co., Ltd.
  • After-sales Service：Video Support
  • Warranty：1 Year
  • Certification：CE
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：50-70m

Base Info

  • Model NO.：DR-285
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Product Name：Dr-285 Rotary Drilling Rig
  • MOQ：1 Set
  • Keyword：Pile Driver
  • Color：Customized
  • Engine：Cummins
  • Power：220kw
  • Drill Rod：Kelly Bar
  • Drilling Tools：Two Drill Bit for Free
  • Drilling Bit：Auger,Bucket,Core Drill Bit and So on
  • Hydraulic System：Kawasaki Double Pump
  • Chassis Length：6500mm
  • Track Width：800mm
  • Weight：70t
  • Rotating Speed：10-30rpm
  • Drilling Depth：70m
  • Transport Package：Container
  • Specification：11000*3300*3610mm
  • Trademark：Yahe heavy industry
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：10 Sets,Month

Description

Basic Info.

Model NO. DR-285 Bit Type Drag Bit Drilling Way Rotary Type Crawler Product Name Dr-285 Rotary Drilling Rig MOQ 1 Set Keyword Pile Driver Color Customized Engine Cummins Power 220kw Drill Rod Kelly Bar Drilling Tools Two Drill Bit for Free Drilling Bit Auger,Bucket,Core Drill Bit and So on Hydraulic System Kawasaki Double Pump Chassis Length 6500mm Track Width 800mm Weight 70t Rotating Speed 10-30rpm Drilling Depth 70m Transport Package Container Specification 11000*3300*3610mm Trademark Yahe heavy industry Origin China HS Code 8430509000 Production Capacity 10 Sets/Month

Product Description

Product Details
Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 60-80m. matching the different specifications of drilling tools, pile hole diameter range up to 600-2400mm.
Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m
Parameter

Product TypeDR-285
Chassis length(mm)6500
Track width(mm)800
Overall height(M)3.61
Machine weight(t)70
Maximum drilling depth(M)60-80
Drilling diameter(mm)600-2200
Engine rated power(KW/rpm)220-300kw
Maximum torque of power head(N.m)285000(optionl)
Power head speed rpm5-30
Power head can be customizedYES
Drill mast±5
Pitch angle5
Maximum travel speed of chassis(KM/h)4
Maximum creep degree of chassis30
Maximum travel torque(N.m)110000
Working state width(mm)4500
Transport status width(mm)3300
Transport status height(mm)3610

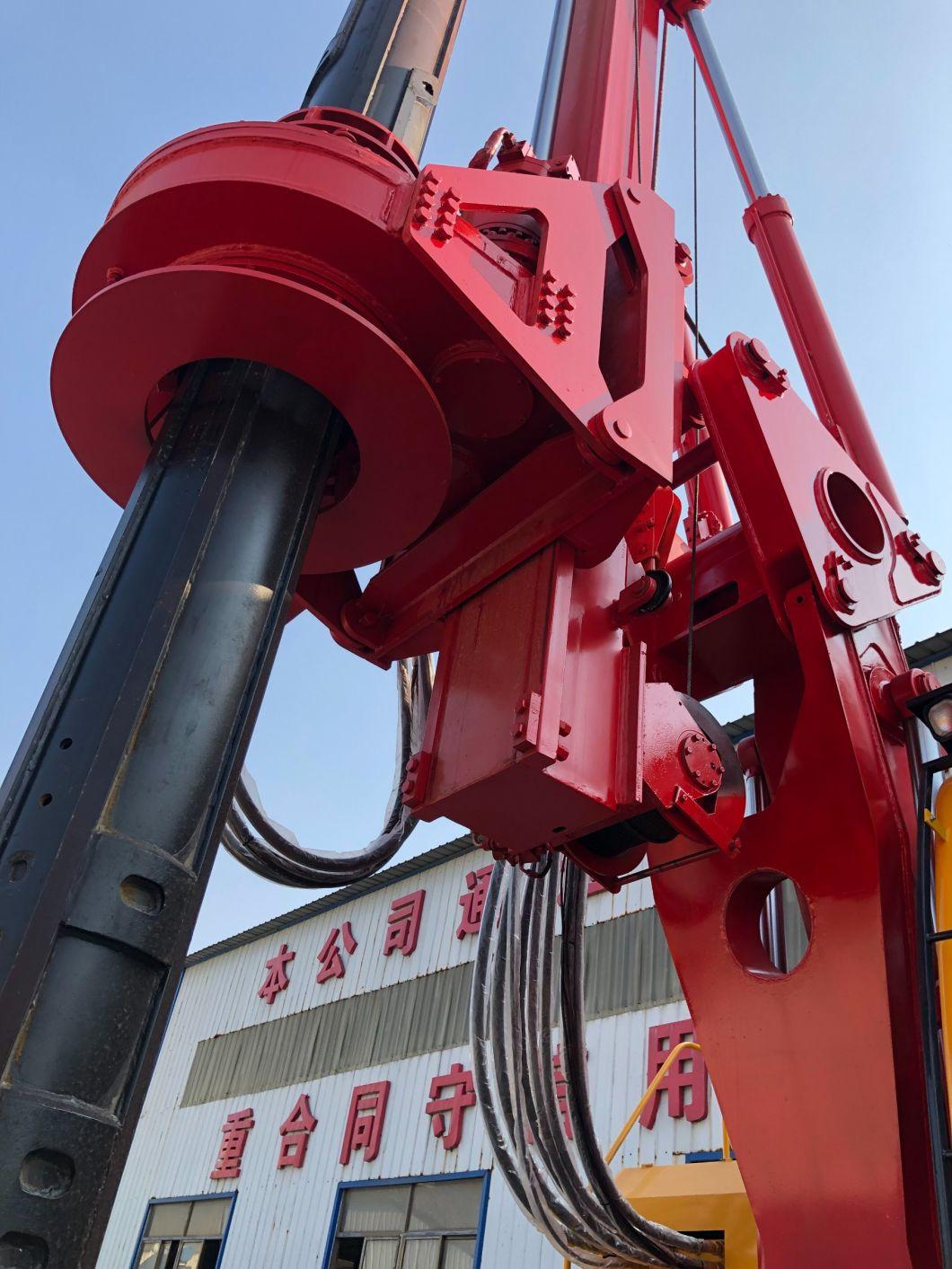

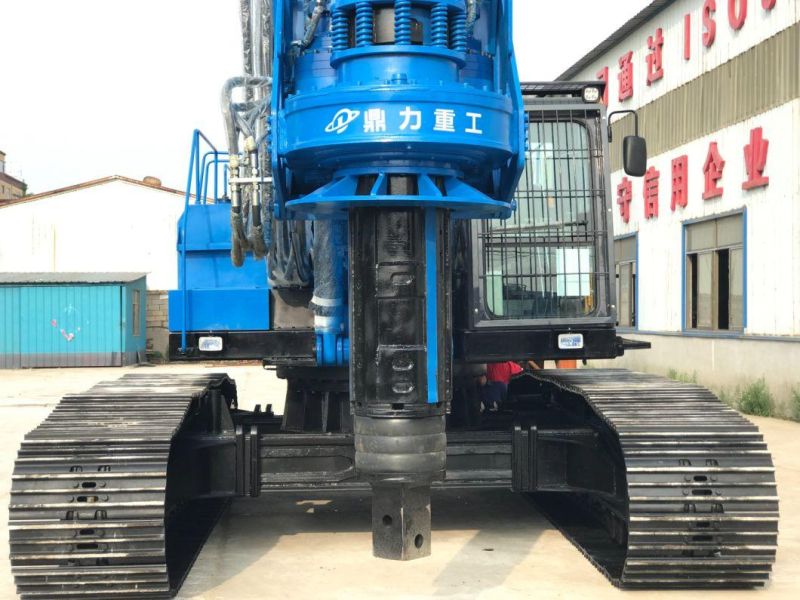

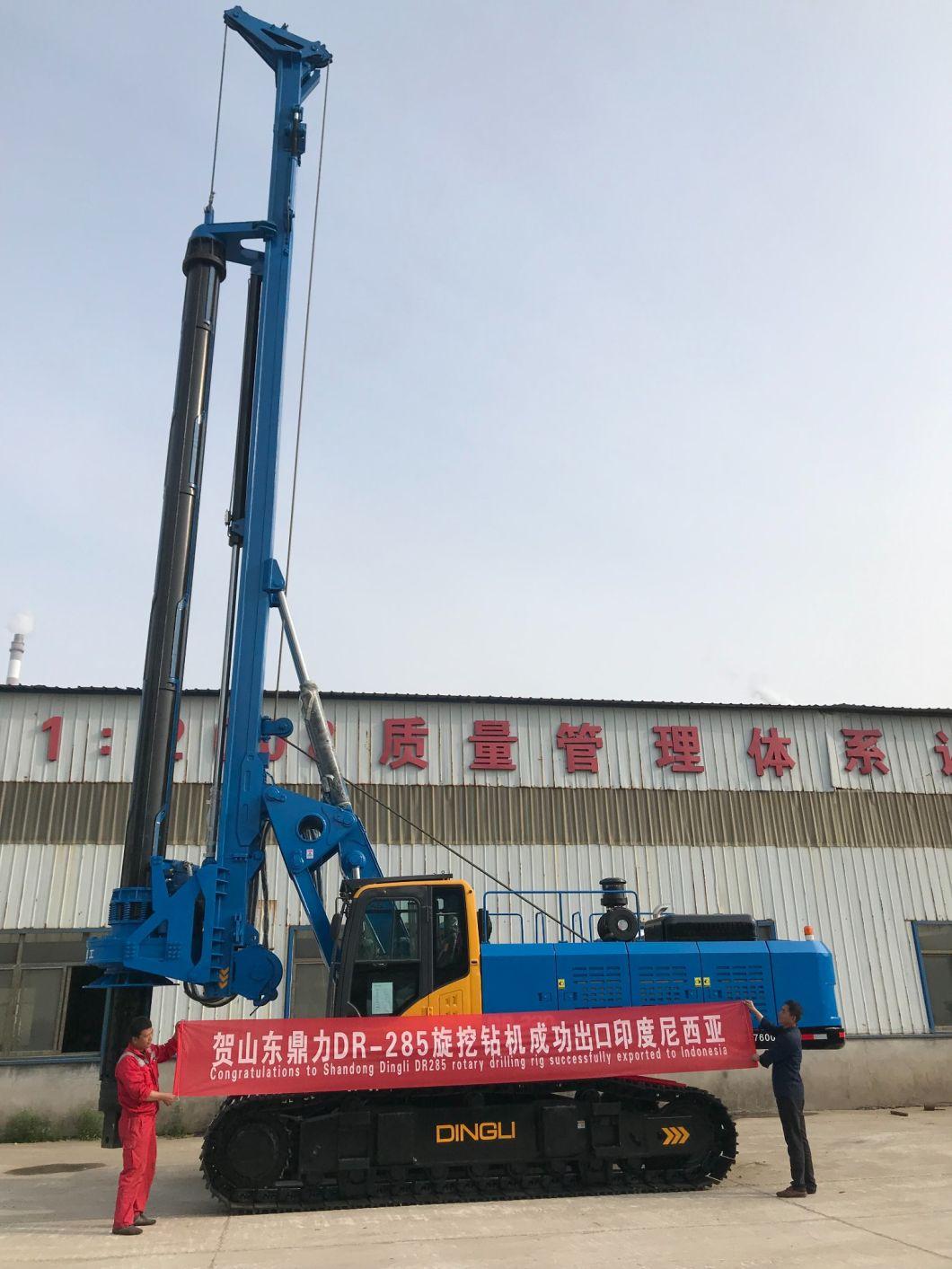

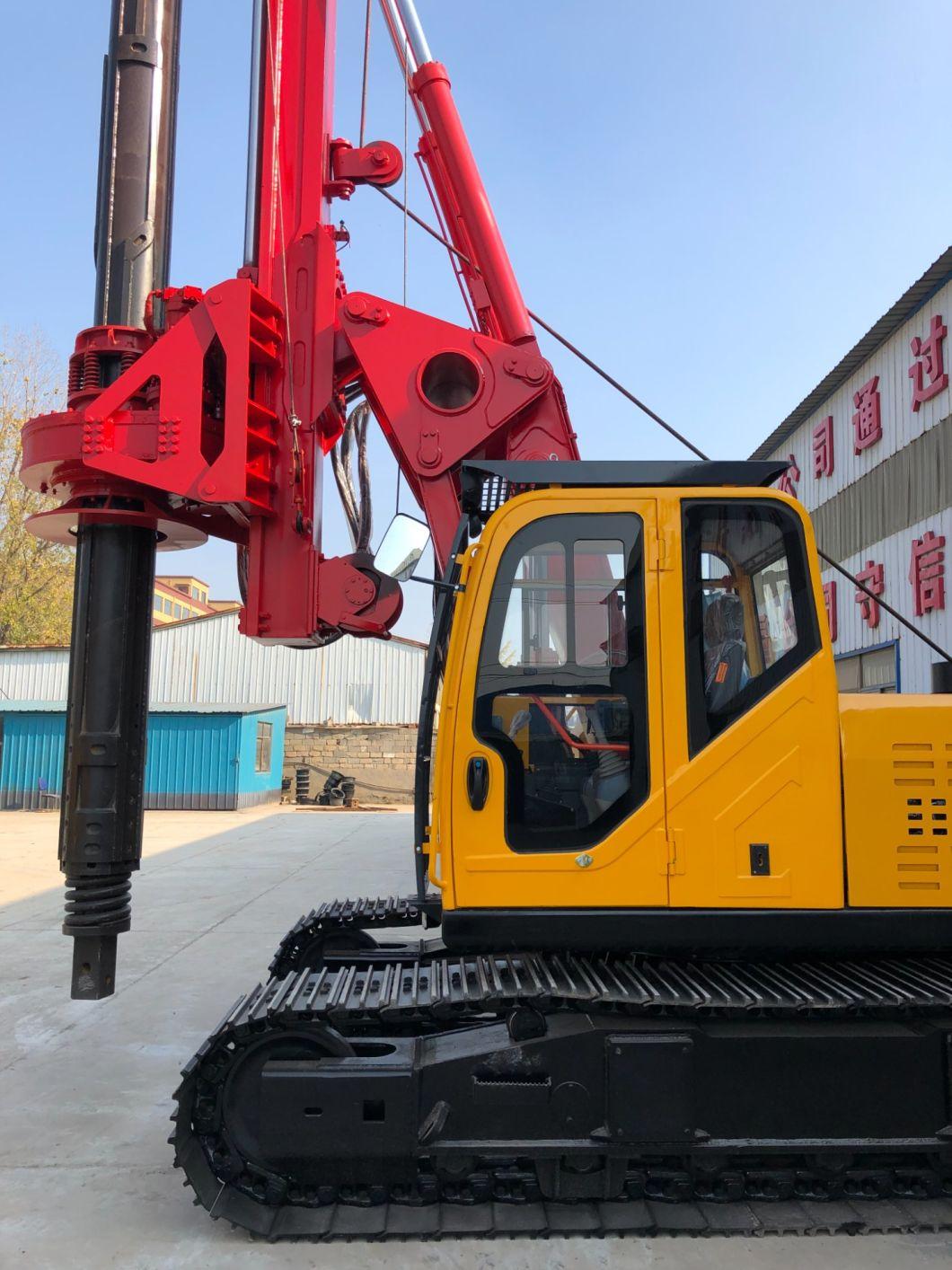

 Machine photo
Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m
Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m
Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60mConstruction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m

Certification

At present, our drilling rig has been awarded various international certificates, which support the verification!

Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m

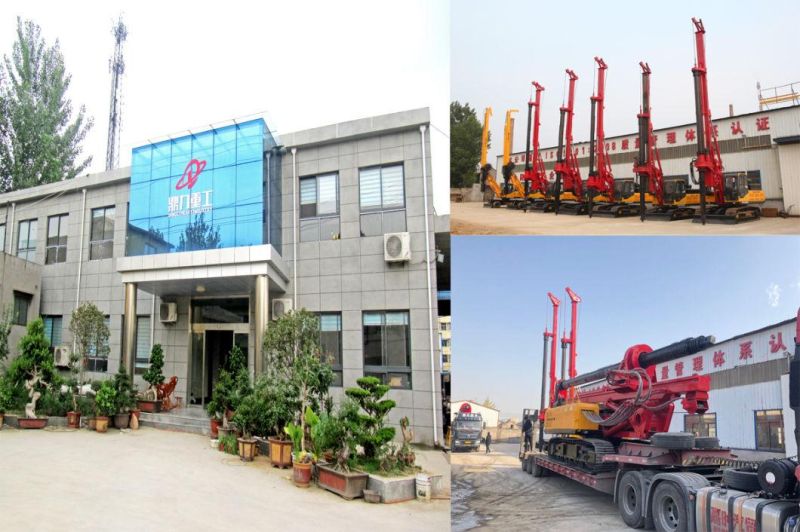

Company profile

    Shandong tenggong International Trade Co., Ltd. is a modern trading company, located in the hometown of Mozi - Shandong Tengzhou. convenient transportation. Our staff are experienced, committed to strict quality inspection and thoughtful customer service, and can discuss customer needs at any time to ensure customer satisfaction. The main sales products are rotary drilling rig, pile driver, CFA screw drill, drilling tools and other construction machinery products.
    It is widely used in urban construction, various highways, railways and other government projects. And won the trust and praise of the majority of users, products not only sell well in small domestic provinces and cities, but also exported to Australia, the Middle East, South America, Southeast Asia, the Russian Federation, Africa and other countries and regions and more than 30 countries. At the same time, we also undertake OEM and ODM orders. Please feel free to contact our customer service center and let us know your purchase requirements, whether you are choosing products from our existing product catalog or seeking help in engineering application!
  Welcome to our factory, looking forward to establishing long-term cooperation with you!
Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m

Customer Photo
 Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m
Exhibition
Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m

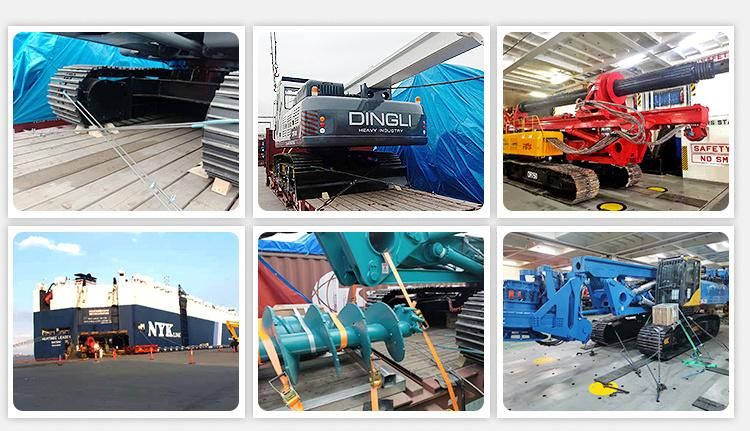

Transport
Construction Machinery Hydraulic Drilling Rig Machine Max Drilling Depth 60m

FAQ

1.Q: Are you a manufacturer?
 A: Yes, we are a professional rotary drilling rig  manufacturer.
2.Q: What does your company produce?
 A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
 A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
 A: Yes, price depends on different quantity, different quantity will give you different price
