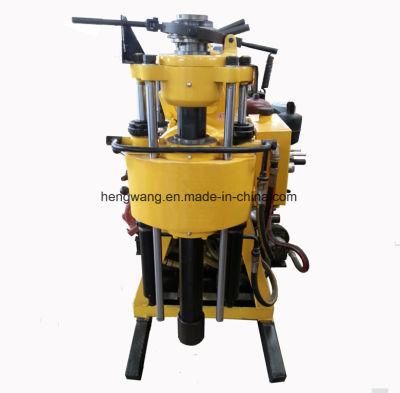

Borehole Deep Well Drilling Rig Machine for Sale
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：ISO 9001:2008
- Condition：New
- Motor：Gasoline
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW-230
- Drilling Way：Rotary
- Type：Rotary Drilling Rig
- Name：Water Well Drilling Rig
- Drilling Depth：160m
- Maximum Open Hole Caliber：260m
- End Hole Caliber：75mm
- Drill Rod Caliber：50mm
- Drilling Angle：90-75
- Mud Pump：Bw Mud Pump
- Usage：Water Well
- Power Type：Diesel
- Transport Package：Wooden Case or According to Customer′s Demands
- Specification：CE,ISO
- Trademark：HW
- Origin：Shangdong China
- HS Code：8430412100
- Production Capacity：50000set,Year
Description
Unity machine parameter
Drilling depth
10-160m
Maximum open hole caliber
260mm
End hole caliber
75mm
Drill rod caliber
50mm
Drilling angle
90~75
Drill weight (No include power)
510 560kg
Unity machine dimensions
2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed
142,285,570r/min
Spindle stroke
450mm
Hoist
Max.single line hoisting capacity
960kg
Single line lifting speed
0.41,0.82,1.64m/s
Tightrope caliber
27m
Mud pump
Type
Horizontal single urn twin-action
Displacement
95/77L/min
Diesle engine
Model s1110 18HP
Electric motor
Y160M-4 11kw 1440r/min
Maximum pressure
1.2Mpa
Work pressure
0.7Mpa
Water inlet caliber
30mm
Water to exit caliber
25mm
Triangle conveyor belt
B1575mm
Molly:0086 13563710733
