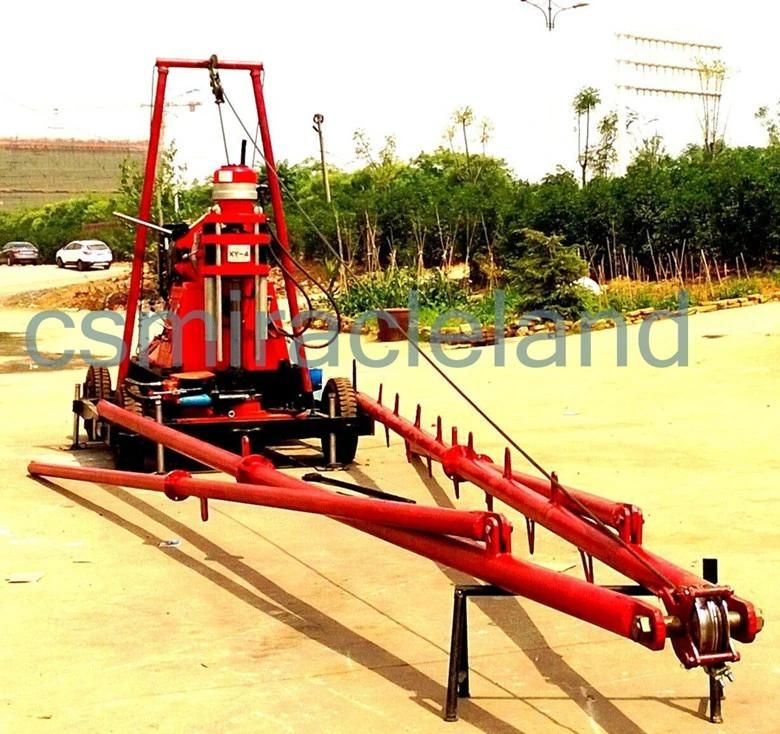

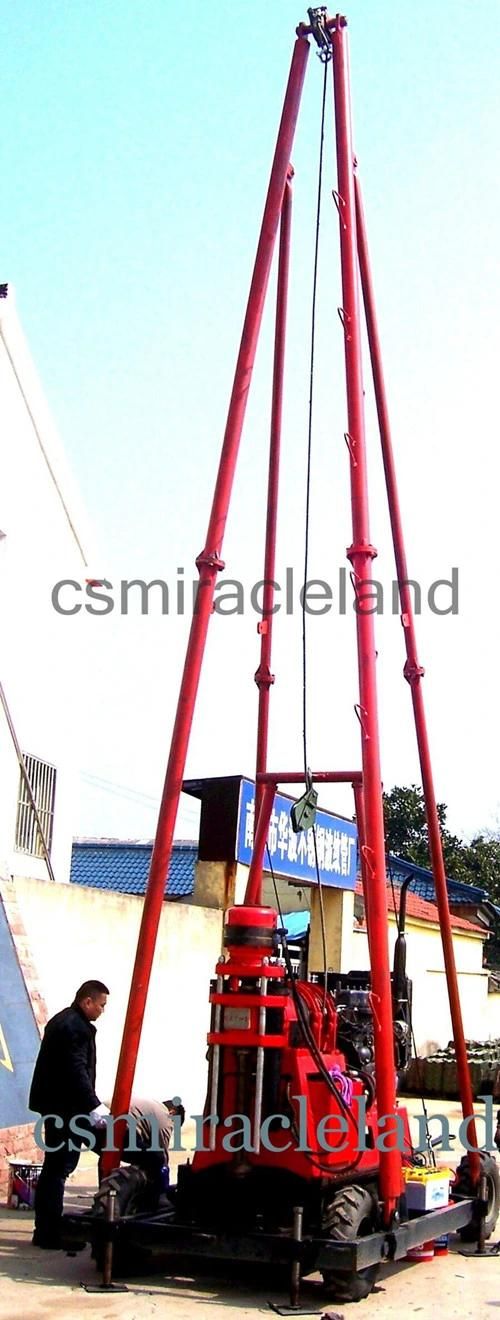

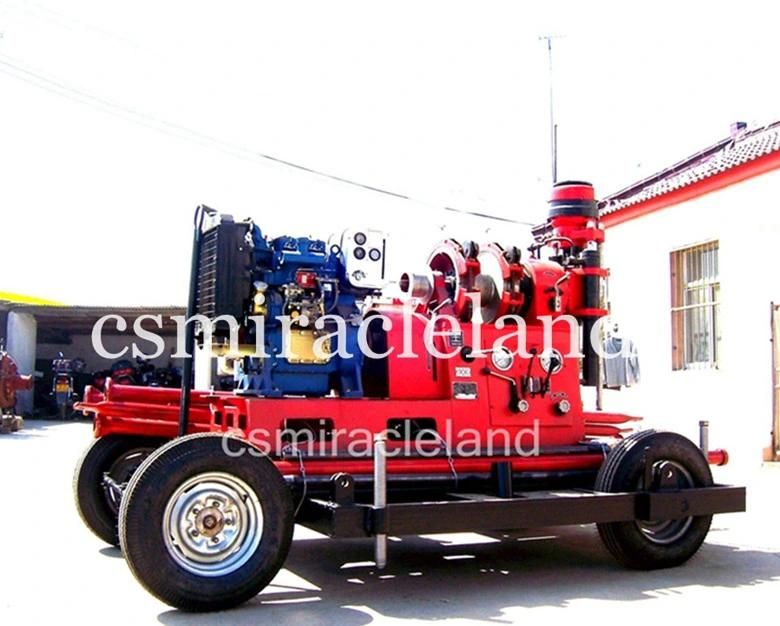

Four-Wheel Trailer Type Water Well Drilling Rig (XY-4)
Changsha Miracleland Import & Export Co., Ltd.- Condition：New
- Type：Rotary Drilling Rig
- Usage：Coal, Ore, Water Well
- Power Type：Diesel
- Transport Package：in Plywood Case
- Specification：ISO9001
Base Info
- Model NO.：trailer type water well drilling rig (XY-4)
- Origin：China
- HS Code：8430490000
Description
Basic Info.
Model NO. trailer type water well drilling rig (XY-4) Origin China HS Code 8430490000Product Description
XY-4 is a core drilling rig for middle and deep hole. It applies to all kinds of core drilling and engineering geological reconnaissance. Also the machine is widely used on areas such as road,railway and port construction, water resources and hydropower and architecture. The structure of the machine is reasonable,the weight is light and the capability is powerful.
the technical parameters of the XY-4 drilling rig:
Type | XY-4 Drilling Rig |
| Drilling depth(m) | 1000 |
| Oil pump type | CB-F32C-FL |
| Oil pump nominal displacement(ml/r) | 32 |
| Stroke of moving cylinder (mm) | 400±10 |
| Spindle speed(r/min) | Positive rotation rate: 1011872673883115748191191 Reverse rotation rate: 83251 |
| Spindle hole diameter(mm) | Φ95 |
| Spindle output torque(N.M) | 5757 |
| Spindle stroke(mm) | 600 |
| Spindle driving force max.(KN) | 60 |
| Spindle lifting power max.(KN) | 80 |
| Speed of single rope of the third layer(m/s) | 0.821.512.163.14 |
| Lift capacity of single rope max.(KN) | 35 |
| Diameter & Length of drum (m) | Φ16x52 |
| Max distance from the hole(mm) | 250 |
| Weight(power unit excepted)(kg) | 1500 |
| Dimensions(L x W x H)(mm) | 2640x1100x1750 |
| Diesel engine type | 4105 |
| Diesel engine power (KW) | 41 |
| Oil pump nominal rotative velocity(dmin) | 1500 |
| Oil pump nominal pressure(MPa) | 16 |
| Electric motor type | Y225S-4 |
| Electric motor power(KW) | 37 |
