• Model NO.：MZ460Y-3
• Impact Power：1300j
• Impact Pile Length：Max 6m
• Optional Screw Pile：Max 6m
• Optional Screwing Torque：6500nm
• Optional Drilling Hole Diameter：90-400mm
• Hydraulic Pump：USA Permco′
• Transport Package：40′ HQ
• Specification：6240*2250*3000mm
• Trademark：LongYe
• HS Code：8430419000

Basic Info.

Model NO. MZ460Y-3 Impact Power 1300j Impact Pile Length Max 6m Optional Screw Pile Max 6m Optional Screwing Torque 6500nm Optional Drilling Hole Diameter 90-400mm Hydraulic Pump USA Permco′ Transport Package 40′ HQ Specification 6240*2250*3000mm Trademark LongYe HS Code 8430419000

Product Description

We are China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and we

exported to over 60 countries !

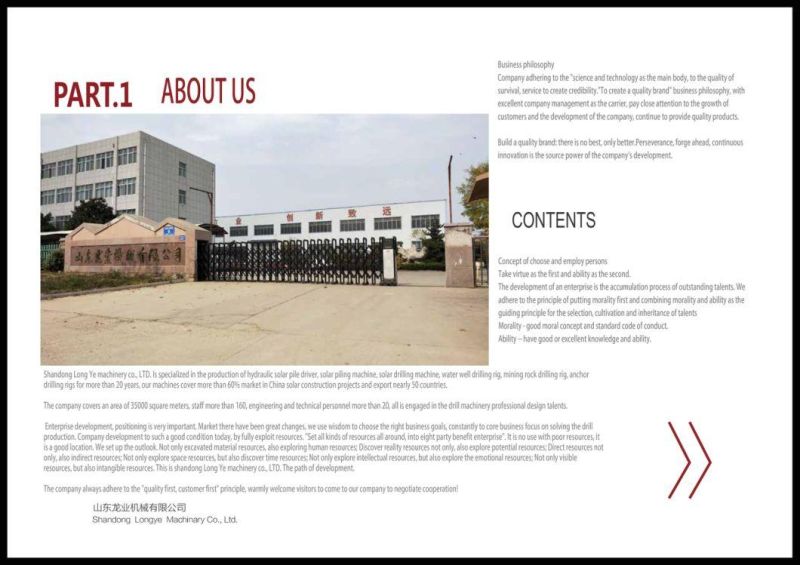

  Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling

rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill

hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of

Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai

High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our

company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering

technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of

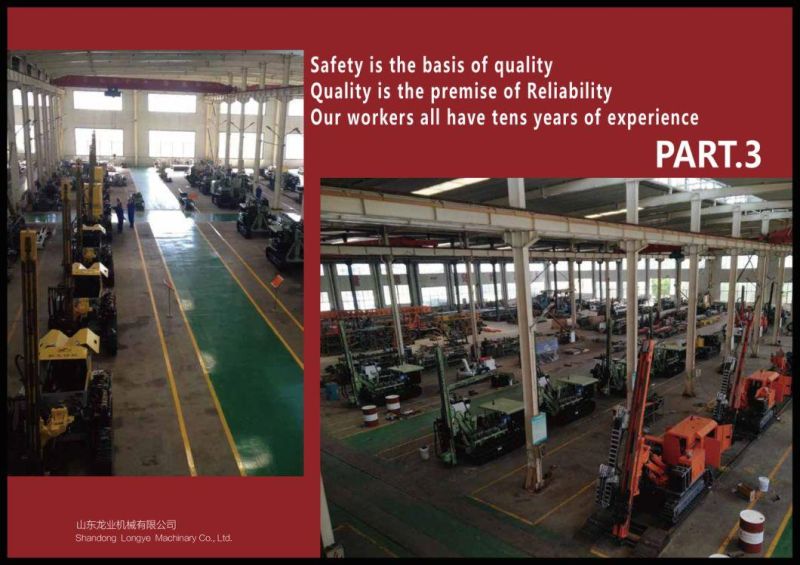

advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has

our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced

production equipment and more than 10 years of experience, our company has developed and produced three

series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well

throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60

countries...
 Technical parameters

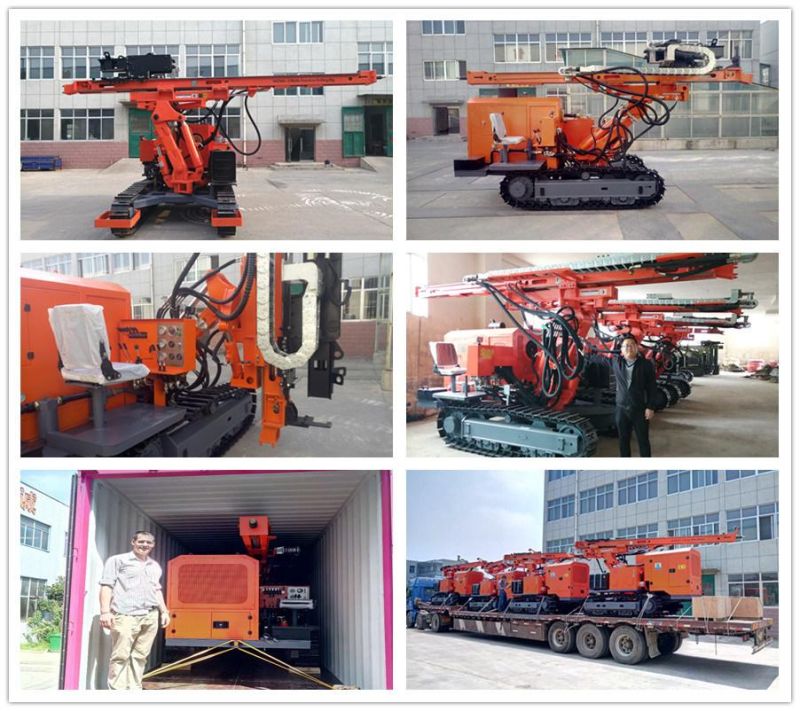

 MZ460Y-3 is multifunction for both C,H,..steel post ramming and drilling screw piles, it can :

• Dive maximum 6m long C,H,O,W,Sigma...solar steel posts using ramming head
• Use rotary head to drill ground screw piles or to drill DTH rock holes or drill augering holes
• Working on flat ground or maximum 25 degree slope ground.v

Impact frequency(bpm)	450--800
Impact(j)	1300
work pressure(bar)	130---150
Bore diameter(mm)	70~160
Bore depth(m)	30
Air consumption(m³/min)	8--16
Air pressure(Mpa)	0.7-1.6
Once promotion(mm)	4100
Maximum ramming length(mm)	6000
Skid pitch(°)	95
Boom swing angle(°)	110
Boom pitch(°)	30°
Swinging angle of skid(°)	left and right total 40
Host power(KW)	88
Climb ability(°)	35
Dimension(L*W*H)(mm)	6240*2250*3000
Weight(Kg)	7350
Walk speed(km/h)	0--2.5
