• Model NO.：XZ500

Basic Info.

Model NO. XZ500

Product Description

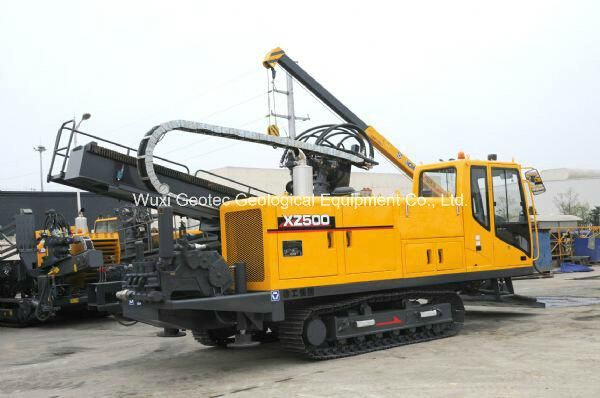

Model: XZ500
Engine Model: Commins
Rating of engine: 194kW
Push and pull mode: Pinion and rack
Maximum pull back/entering strength: 500/500kN
Power head maximum torque: 18000N. M
Power head rotation speed: 0-180r/min
Power head speed: 20m/min
Maximum diameter of hole: Φ 900mm
Length of drill pipe (single pipe): 4.5m
Drill rod caliber: Φ 89mm
Penetration angle: 10-20°
Maximum flow of mud: 600L/min
Mud pressure: 100bar
Weight: 18000kg
Dimensions (length * width * height): 9300× 2750× 2930mm
