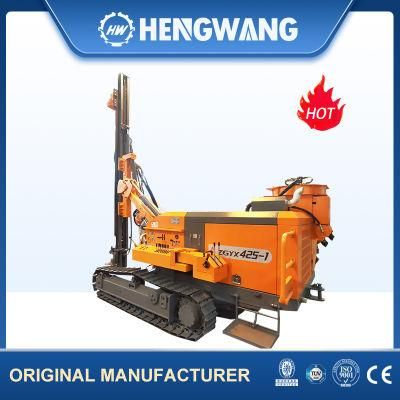

Factory Price 20 M Blast Hole Crawler Blast Hole Diesel DTH Rock Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.

After-sales Service：1 Year
Warranty：1 Year
Certification：CE, RoHS, ISO 9001:2008
Condition：New
Motor：Diesel Engine
Drill Hole Diameter：90-138mm

Base Info

Model NO.：30m
Drill Hole Depth：30m
Bit Type：Diamond Bit
Drilling Way：Impactor
Model：Hw425
Drilling Diameter：90-138mm
Drilling Depth：30m
Hammer：4",5"
Rotation Torque(Max.)：3,200 N.M
Rotation Speed：0 -100 Rpm
Working Pressure：0.7-2.5MPa
Transport Package：Container
Specification：7, 000 X 2, 250 X 2, 700mm
Trademark：Hengwang
Origin：Shandong
Production Capacity：200

Description

Transportation Dimensions

7,000 X 2,250 X 2,700mm

Successful Project Packaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
Factory Price 20 M Blast Hole Crawler Blast Hole Diesel DTH Rock Drilling Machine

Factory Price 20 M Blast Hole Crawler Blast Hole Diesel DTH Rock Drilling Machine

Company Profile
Factory Price 20 M Blast Hole Crawler Blast Hole Diesel DTH Rock Drilling Machine

Factory Price 20 M Blast Hole Crawler Blast Hole Diesel DTH Rock Drilling Machine

Factory Price 20 M Blast Hole Crawler Blast Hole Diesel DTH Rock Drilling Machine

Factory Price 20 M Blast Hole Crawler Blast Hole Diesel DTH Rock Drilling Machine
