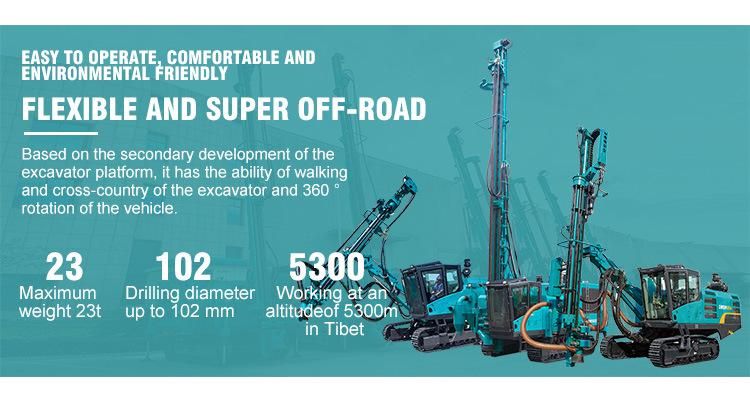

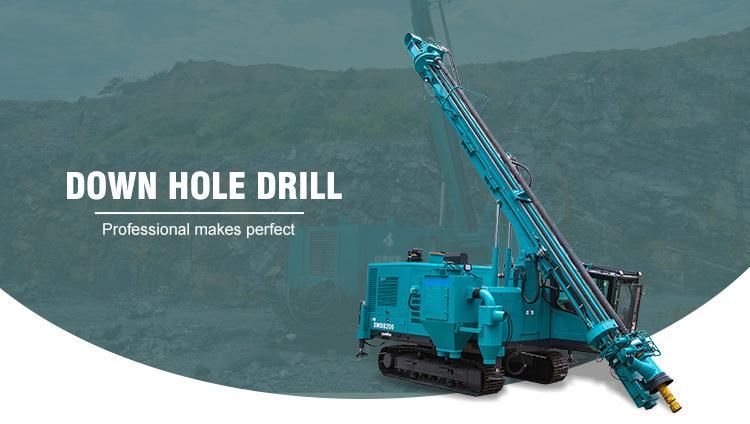

Sunward Swde120A Down The Hole Drill Concrete Core Drilling Equipment Competitive Price

Sunward Intelligent Equipment Co., Ltd.
  • Certification：179kw,1800rpm
  • Condition：New
  • Motor：AC Motor
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Core Drilling Rig

Base Info

  • Model NO.：SWDE120A
  • Warranty：2 Years
  • Power Type：Diesel
  • Usage：Coal
  • Color：Blue
  • Applicable Industries：Advertising Company, Building Material Shops
  • Weight：14.5t
  • Dimension(L*W*H)：6.65X4.1X10.8 M
  • After-Sales Service Provided：Field Installation, Commissioning and Training
  • Local Service Location：Indonesia
  • Voltage：Engineering
  • Showroom Location：Indonesia
  • Specification：6.65x4.1x10.8 m
  • Trademark：SUNWARD
  • Origin：Hunan, China
  • Production Capacity：100000 Set,Sets Per Year

Description

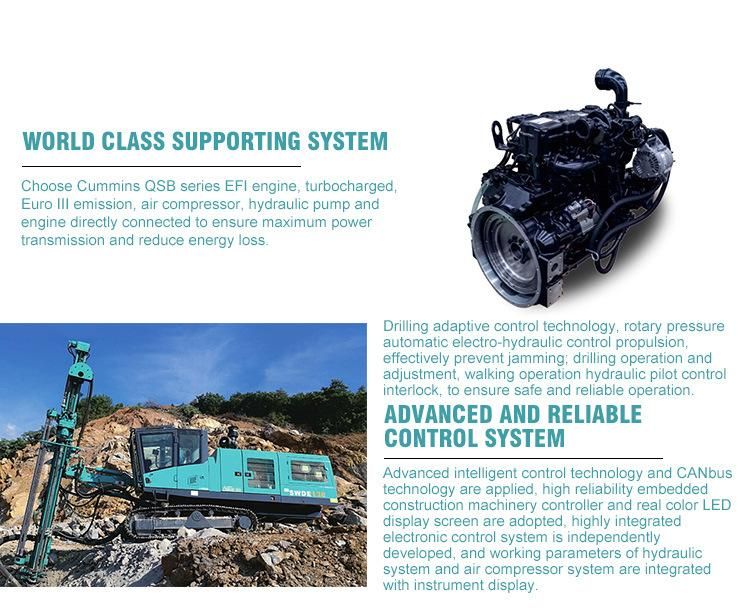

Dust collection deviceDry (standard) / Wet (optional)Air compressorManufacturerSULLAIRModelDLQ550RHWorking pressure1.7MPaDisplacement15.5m3/minPower179kW/1800rpmEngineManufacturerCumminsModelQSB4.5Power82kW/2200rpmFuel tank capacity530LFeedFeed beam length8000mmFeed stroke4380mmFeed extension1200mmFeed rate, max0.8m/sFeed force, max32kNForward tilting angle140°Overturning angle-20°~90°BoomFull length2800mmLifting angle50°~-30°Oscillating angle15°(L) / 45°(R)Travel capabilityTraveling speed3.2km/hTraction force, max100kNGradeability25°Track tilt angle±10°Ground clearance480mmRotaryRotary speed70rpmRotary torque3000N.mDiamensionGross weight15.5tWorking(L×W×H)8.2×3.62×8 mTransportation(L×W×H)9.8×3.1×3.5 m
