• Model NO.：DR-180
• Bit Type：Alloy
• Drilling Way：Rotary
• Type：Crawler
• Product Name：Dr-180 Rotary Drilling Rig
• MOQ：1 Set
• Keyword：Pile Driver
• Color：Customized
• Engine：Cummins
• Power：176kw
• Drill Rod：Kelly Bar
• Drilling Tools：Two Drill Bit for Free
• Drilling Bit：Auger,Bucket,Core Drill Bit and So on
• Hydraulic System：Kawasaki Double Pump
• Chassis Length：5200mm
• Track Width：700mm
• Weight：46t
• Rotating Speed：10-30rpm
• Drilling Depth：50m
• Transport Package：Container
• Specification：12000mm* 3000mm*3550mm
• Trademark：Yahe heavy industry
• Origin：China
• HS Code：8430509000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. DR-180 Bit Type Alloy Drilling Way Rotary Type Crawler Product Name Dr-180 Rotary Drilling Rig MOQ 1 Set Keyword Pile Driver Color Customized Engine Cummins Power 176kw Drill Rod Kelly Bar Drilling Tools Two Drill Bit for Free Drilling Bit Auger,Bucket,Core Drill Bit and So on Hydraulic System Kawasaki Double Pump Chassis Length 5200mm Track Width 700mm Weight 46t Rotating Speed 10-30rpm Drilling Depth 50m Transport Package Container Specification 12000mm* 3000mm*3550mm Trademark Yahe heavy industry Origin China HS Code 8430509000 Production Capacity 10 Sets/Month

Product Description

Product Details
It is one of the pile drilling rig models with the strongest comprehensive capabilities produced by the company, second only to the DR-220 and DR-285 models. The maximum drilling depth of the drilling rig is 45M and the drilling diameter is 600-2000MM. His volume is large, his power is sufficient, his work is stable, and his operating system is advanced. This type of pile drilling machine can be customized according to the construction environment of different regions.

Parameter

Product Type	DR-180
Chassis length.(mm)	5200
Track width.(mm)	700
Machine weight.(t)	46
Maximum drilling depth.(m)	45
drilling diameter.(mm)	600-2000
Engine brand	Weichai/Cummins(Optional)
Engine rated power.(KW/rpm)	176KW-194KW
Maximum torque of power head.(KN.m)	180
Power head speed.(rpm)	10-40
Maximum working pressure of hydraulic system main pump.(MPa)	30
Maximum working pressure of hydraulic system auxiliary pump.(MPa)	20
Maximum bow rate of the main pump hydraulic system.(L/min)	112*2
Maximum bow rate of the auxiliary pump hydraulic system.(L/min)	16
Maximum pressure of the pressurization system.(KN)	160
Maximum lifting force of the pressurization system.(KN)	140
Maximum travel pressure system.(mm)	4000
Maximum lifting force of the main winch.(KN)	200
Maximum pull-up speed of the main winch. (m/min)	50
Maximum lifting force of the auxiliary winch.(KN)	50
Maximum pull-up speed of the auxiliary winch.(m/min)	70
Left and right inclination angle of drilling mast(°)	±5
Forward and backward inclination angle of the drilling mast. (°)	5/90
Maximum driving speed(KM/h)	1.5
Maximum climbing angle.(°)	30
Maximum Driving torque.(KN.m)	61000
Overall width of working state.(mm)	4200
Overall length of transport status.(mm)	12000
Overall width of transport status.(mm)	3000
Overall height of transport status.(mm)	3550

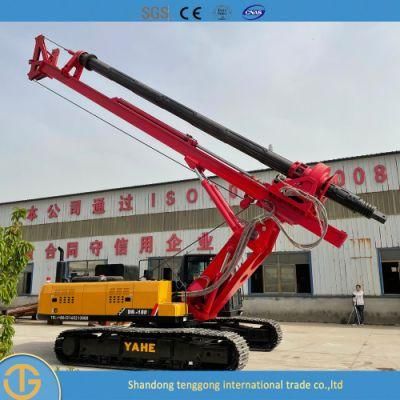

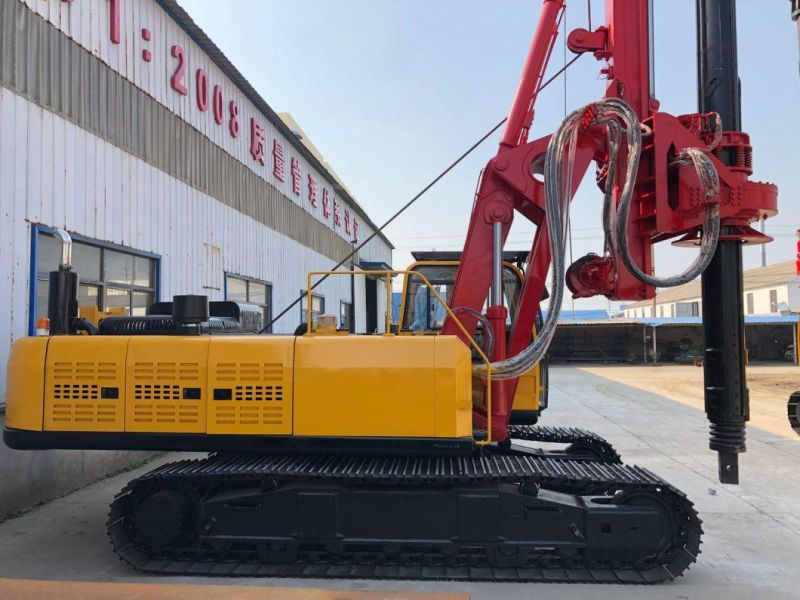

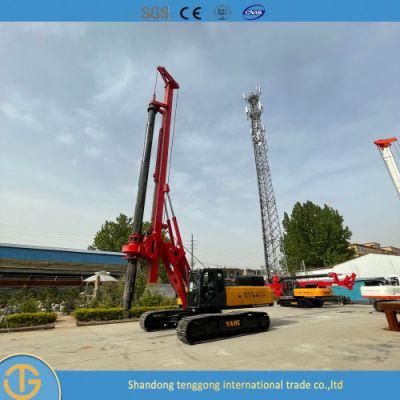

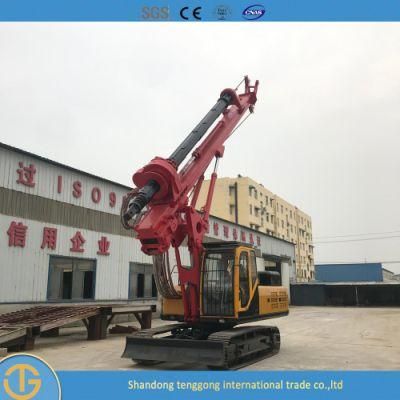

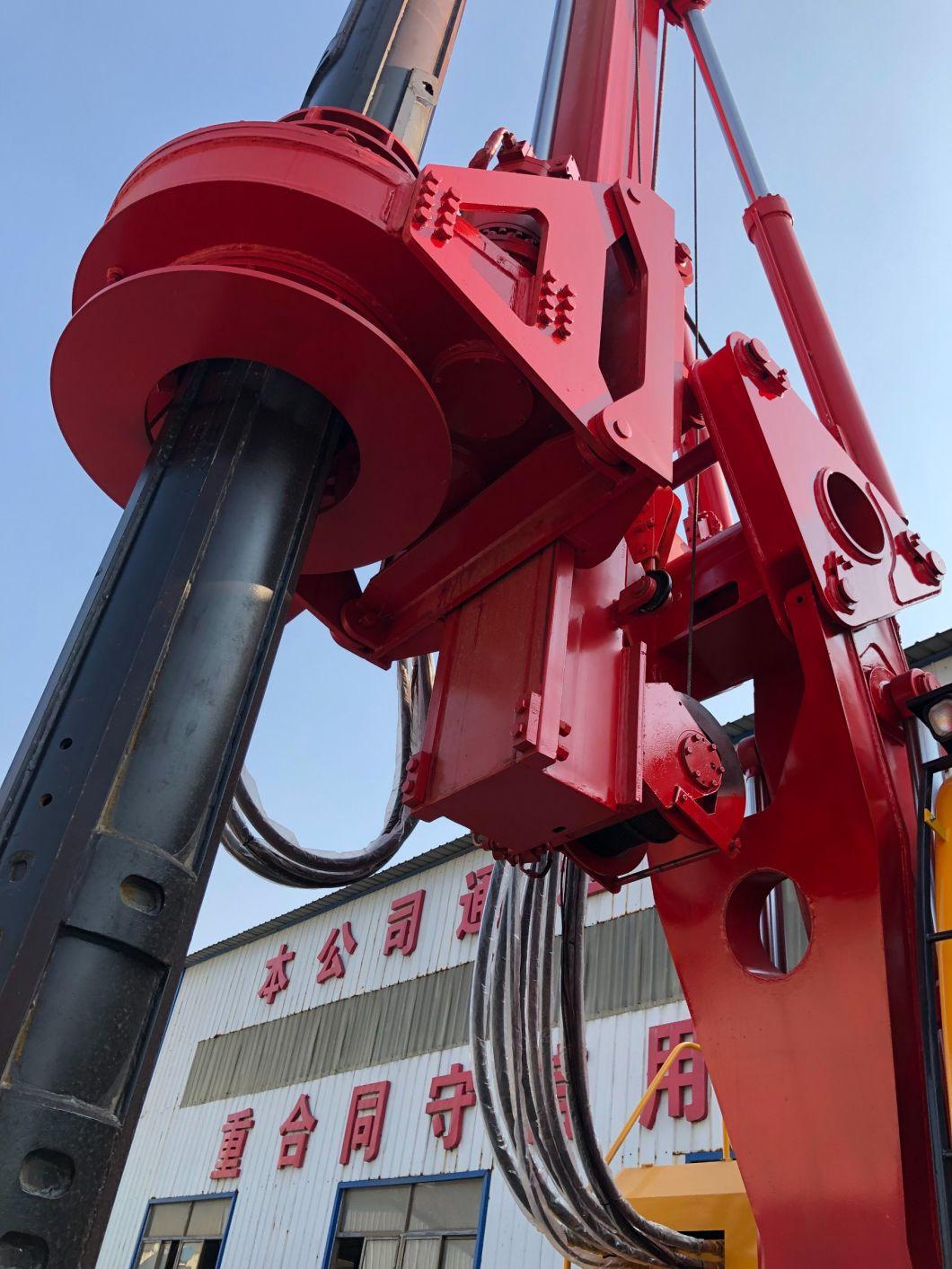

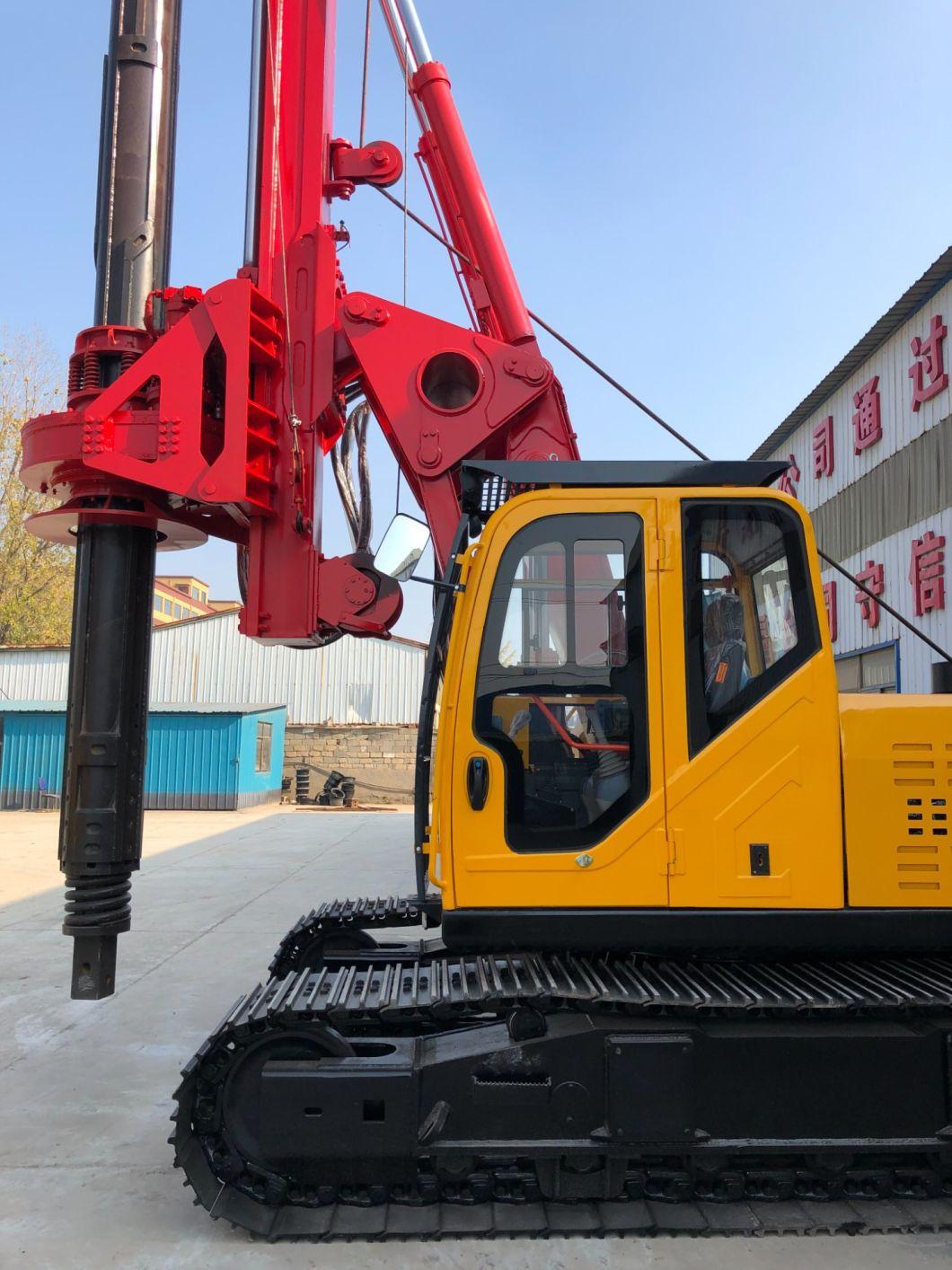

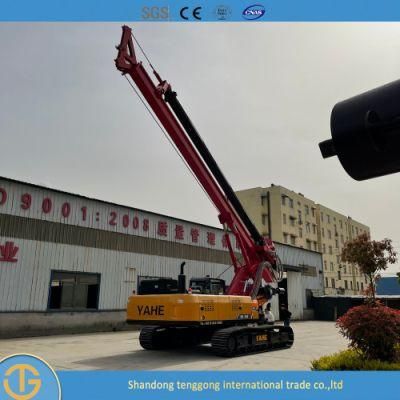

 Machine photo



Certification

At present, our drilling rig has been awarded various international certificates, which support the verification!

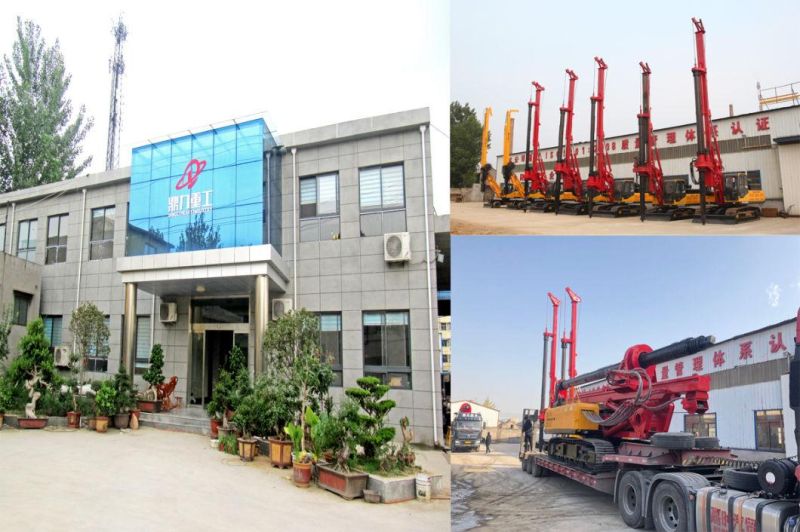

Company profile

    Shandong tenggong International Trade Co., Ltd. is a modern trading company, located in the hometown of Mozi - Shandong Tengzhou. convenient transportation. Our staff are experienced, committed to strict quality inspection and thoughtful customer service, and can discuss customer needs at any time to ensure customer satisfaction. The main sales products are rotary drilling rig, pile driver, CFA screw drill, drilling tools and other construction machinery products.
    It is widely used in urban construction, various highways, railways and other government projects. And won the trust and praise of the majority of users, products not only sell well in small domestic provinces and cities, but also exported to Australia, the Middle East, South America, Southeast Asia, the Russian Federation, Africa and other countries and regions and more than 30 countries. At the same time, we also undertake OEM and ODM orders. Please feel free to contact our customer service center and let us know your purchase requirements, whether you are choosing products from our existing product catalog or seeking help in engineering application!
  Welcome to our factory, looking forward to establishing long-term cooperation with you!


Customer Photo

Exhibition

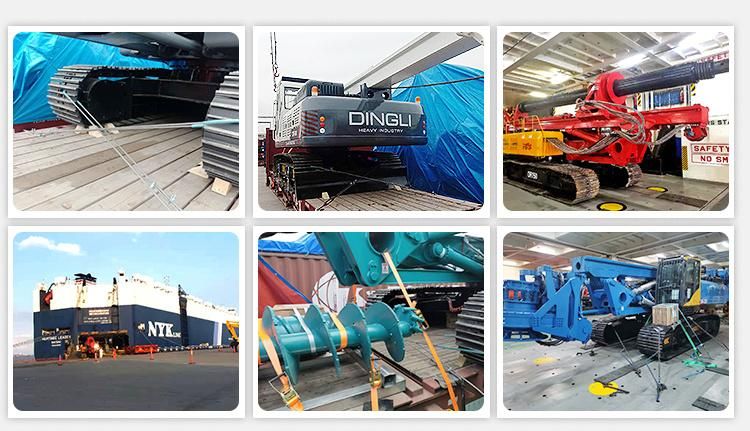

Transport


FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
