• Type：Track
• Engine Power：2*239 ,2*242 Kw
• Max Torque：85000 N·m
• Max Mud Pump Flow：Extra Mud Pump
• Transport Package：Nude Packing
• Specification：16600*2950*3400 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Type Track Engine Power 2*239 /2*242 Kw Max Torque 85000 N·m Max Mud Pump Flow Extra Mud Pump Transport Package Nude Packing Specification 16600*2950*3400 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.Hydraulic system: Closed-circuit system is adopted for push-pull rotation walking, with electro-hydraulic proportional control.
2. The machine is equipped with two diesel engines, so one or two engines working is realized to meet different conditions, and it can save energy. If one set hydraulic system or one of the two engines breaks down, the other one can still be operated normally (with the same force and lower speed), which can greatly improve construction safety.
3. Front and back clamping can be separated, and the clamping floats in the whole process.
4. It is equipped with φ127 or φ140 ×9600mm drill pipe. The floating spindle is in favor of protecting drill pipe thread.
5. Floating girder is good for loading, unloading, climbing and transportation, and it is convenient for adjusting entry angle, which can effectively protect clamps.
6. Proportional wire control walking system ensures man and rig safety in the process of walking, loading and unloading.
7. It is equipped with electrical control handle, with simple electric circuit, safe, reliable, and sensitive.
8. The spacious operation cab is equipped with adjustable seat, which is more humanized and more comfortable.
9. To enhance the executing mechanism ability, hydraulic system is designed in conformity to large flow and high pressure. Our self-designed inserting control valve group reacts fast and reduces 50% pressure loss in hydraulic system.
10. Self-designed and developed, combined electronic controlling system realizes its adaptive control to different working condition and different geologic strata,improving the 30% efficiency of construction. The system is configured with both auto-operation and man-operation. Auto-operation could timely adjust the running parameter according to the strata situation and automatically adjust the rig for rig protection.
11. Liquid crystal man and rig exchange system can monitor rig condition at any time, which can adjust rig work and alarm parameter, making operation simpler and more comfortable.
12. Rational and effective washing and cooling system ensures safety, reliability and efficiency of system, extends motor using lifespan, and avoids motor damages.


[Main Technical Parameters]


Engine Power	2*239 /2*242 kW	Max. Torque	85000 N·m
Rig Weight	45000 kg	Dimension(L*W*H)	16600*2950*3400 mm
Max. Push & Pull Force	2600 kN	Max. Rotation Speed	100 r/min
Max. Push & Pull Speed	35 m/min	Max. Mud Pump Flow	Extra mud pump
Caterpillar Walking Speed	4 km/h	Max. Mud Pump Pressure	Extra mud pump
Enter Drill Angle	9-22°	Max. Climbing Gradient	18°
Max. Aperture Diameter	Φ1500 mm(Soil Depended)	Max. Crossing Length	1600 m(Soil Depended)

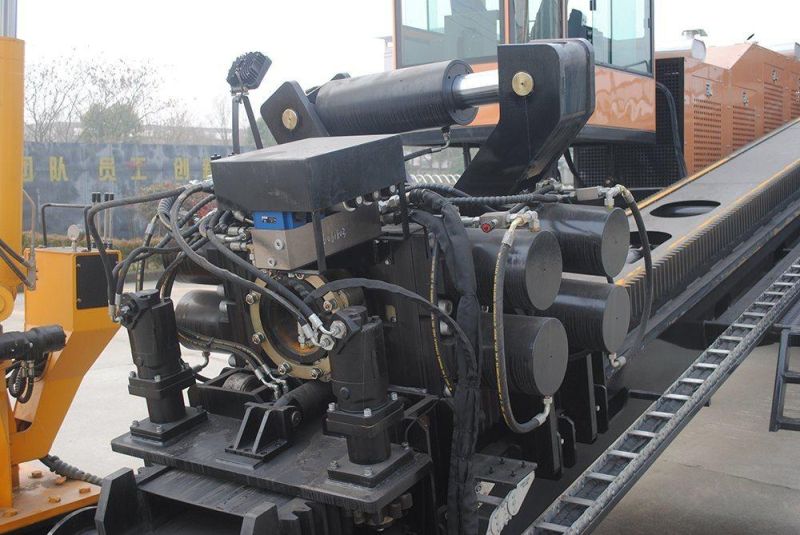

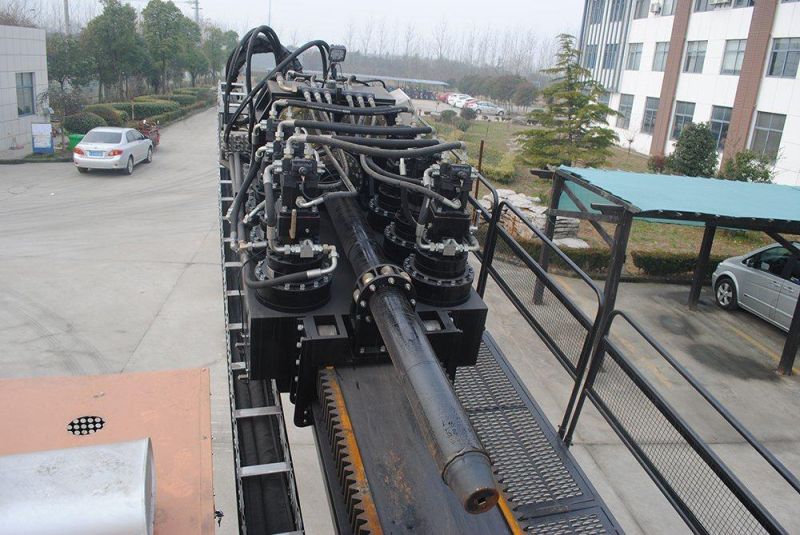

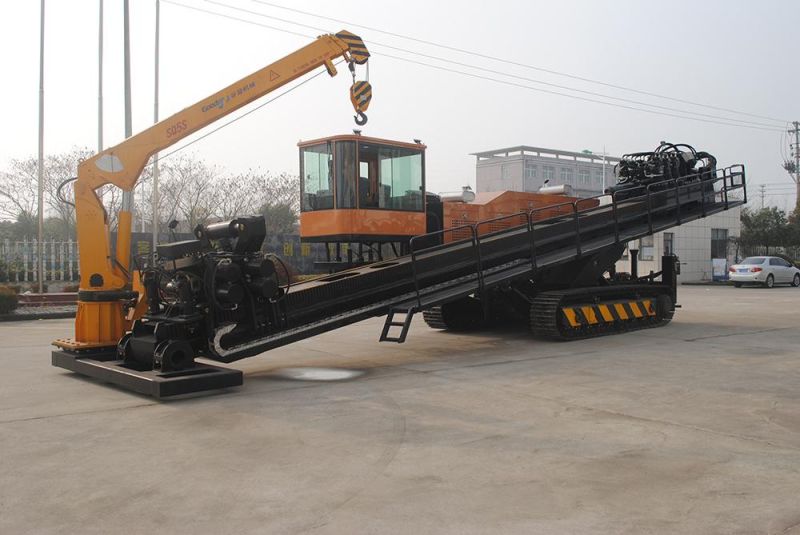

[Product Photos ]





[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is a national high-tech enterprise, which is specialized in research & development, manufacturing, sales and service for trenchless equipment. Our main products are GD/GS series of horizontal directional drilling machine and accessories. As Mechanization Research Branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which has filled in multiple domestic and foreign technical blanks. Many kinds of products have obtained national and provincial progress prize in science and technology of machinery industry. In 2018, "Goodeng Machine" had honor to get the Chinese Well-Known Trademark, which is the only enterprise to acquire in China's trenchless industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
