Drilling Rig

Energy Saving Electrical Borehole Drilling Rig

Zhengzhou Lead Equipment Co., Ltd.
  • Certification:CE
  • Condition:New
  • Motor:AC Motor
  • Drill Hole Diameter:80-100mm
  • Drill Hole Depth:20-30m
  • Bit Type:Diamond Bit

Base Info

  • Model NO.:LD100
  • Drilling Way:Rotary
  • Drill Rod:60*1000mm
  • Rotary Speed:0-62rpm
  • Working Pressure:0.5-0.7MPa
  • Air Consumption:>6m3,Min
  • Lifting Force:9600n
  • Power:4kw
  • Performance:Excellent
  • Color:Customized
  • Transport Package:Standard Export Packing
  • Specification:ISO, CE
  • Trademark:Leadcrete
  • Origin:Henan China
  • HS Code:84303900
  • Production Capacity:100 Sets,Month

Description

Basic Info.

Model NO. LD100 Drilling Way Rotary Drill Rod 60*1000mm Rotary Speed 0-62rpm Working Pressure 0.5-0.7MPa Air Consumption >6m3/Min Lifting Force 9600n Power 4kw Performance Excellent Color Customized Transport Package Standard Export Packing Specification ISO, CE Trademark Leadcrete Origin Henan China HS Code 84303900 Production Capacity 100 Sets/Month

Product Description

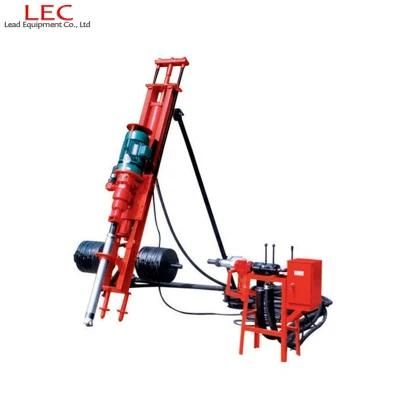

Energy Saving Electrical Borehole Drilling Rig

Energy Saving Electrical Borehole Drilling Rig

Description:
The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost. DTH used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects., national defense projects, irrigation projects, road construction and etc. Our down-the-hole drill is ideal equipment for down-hole blasting.

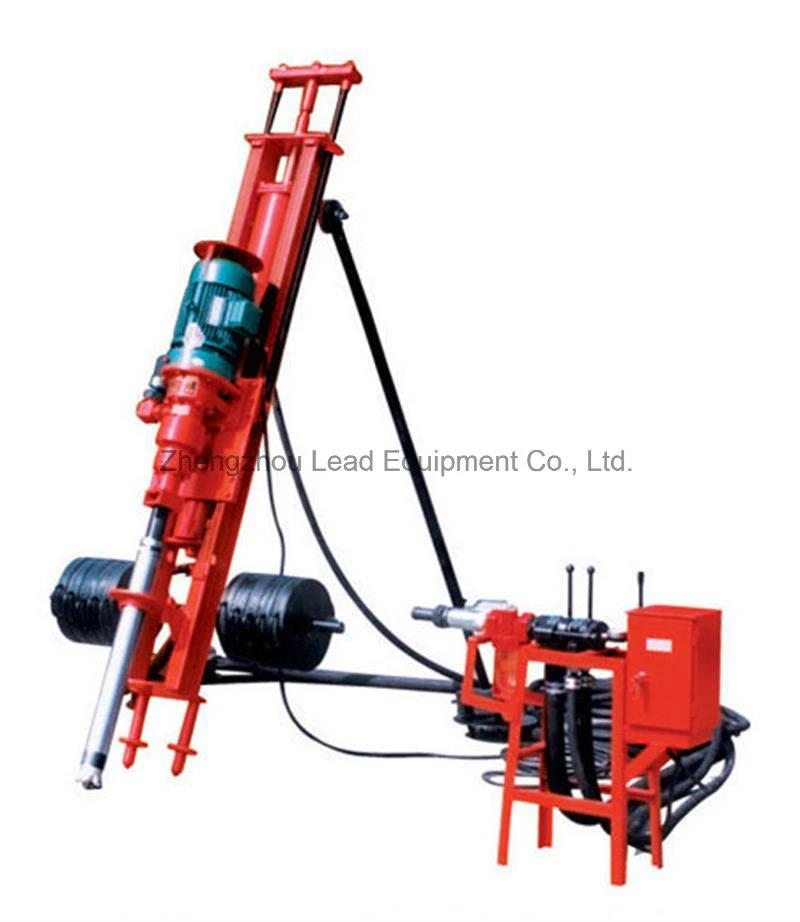

Energy Saving Electrical Borehole Drilling Rig


Technical data:
Drilling diameter80-100mm
Drilling depth≥20m
Rotating speed0-62rpm
Working pressure0.5-0.7Mpa
Air consumption>6 m³/min
Lift power9600N
Motor power4kw
Overall demension 2350*430*620mm
Weight 400Kg
