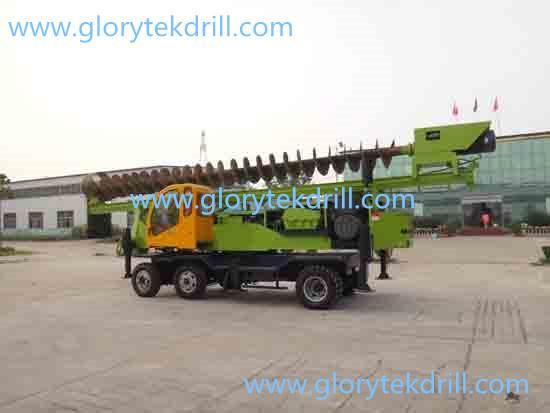

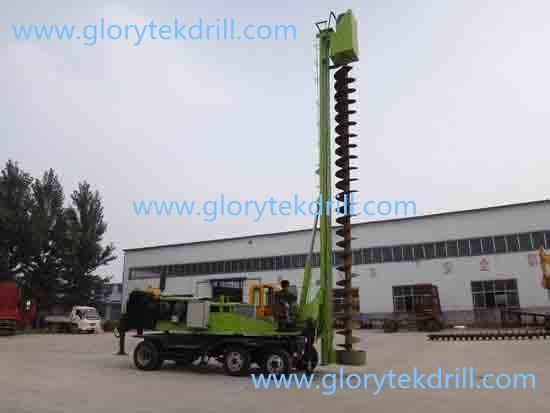

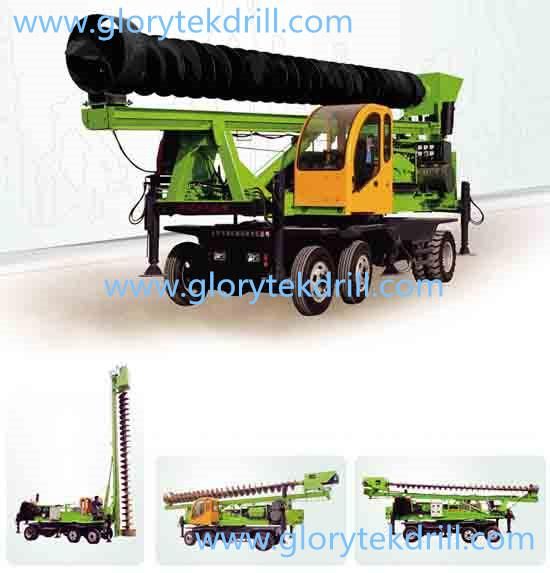

L360-10m Tractor Mounted Auger Drill Rig

Glorytek Industry (Beijing) Co., Ltd.
  • Type：Drill
  • Condition：New
  • Item：L360-10m Tractor Mounted Auger Drill Rig
  • Drilling Diameter：100-800mm
  • Drilling Depth：8-15m
  • Drilling Speed：40-65r,Min.

Base Info

  • Model NO.：L360-10M
  • Rotary Angle：360 Degree
  • Oil Pump Pressure：16-20MPa
  • Weight：8400kg
  • Wheel Base：Front 1860, Rear 1920mm
  • Axile Base：2550mm
  • Min. Ground Clearance：230mm
  • Pressure Pile Driver Type：Mechanical Pile Driver
  • Pile Hammer Type：Hydraulic Hammer
  • Power Source：Diesel
  • Motor Power：55kw
  • Certification：EPA, ISO 9001:2008, CE, RoHS, CS, ISO 9001:2000, SGS

Description

Main Parameters of drill rigDrilling Diameter100-800mmDrilling Depth8-15MDrilling Speed40-65r/min.Rotary angle360 DegreeOil Pump Pressure16-20mpaOil Pump Flow32L/Min.Diesel Engine36KW/2200r/minGenerator Unit40-50KWGradeability25 DegreeTravelling Speed40km/hTravelling TypeDiesel engine or powerPower sourceExternal power supply or
Generator operation Min. Ground Clearance230mmAxile Base2550mmWheel BaseFront 1860, Rear 1920mmTransportation dimensions11500*2100*3050mmWeight8400kg  L360-10m Tractor Mounted Auger Drill RigL360-10m Tractor Mounted Auger Drill RigL360-10m Tractor Mounted Auger Drill Rig
