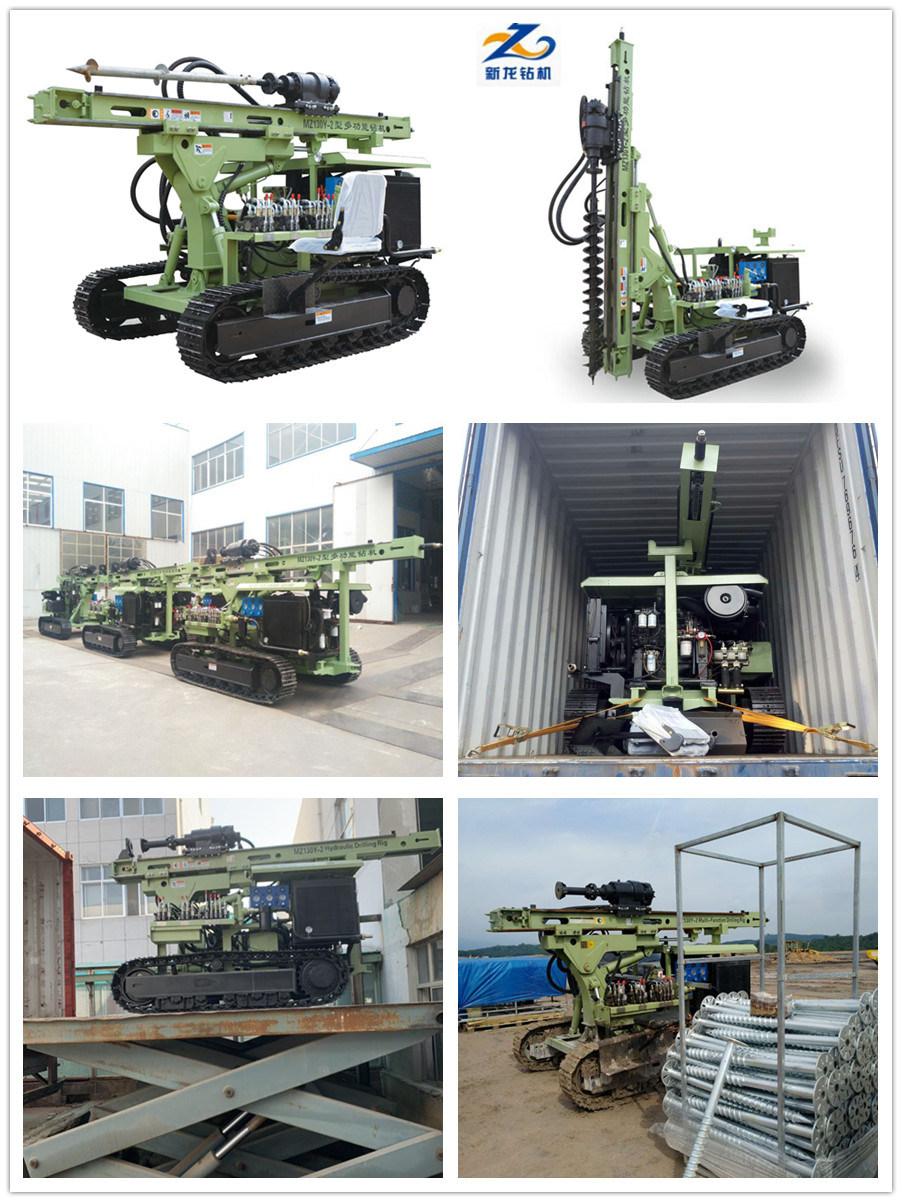

High Efficiency Ground Screw Pile Driver
Taian Longye Import and Export Trade Co., Ltd.- After-sales Service:Available
- Warranty:1 Year
- Certification:CE, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Drill Hole Diameter:>300mm
- Screw Pile Length:0-3m
Base Info
- Model NO.:MZ130Y-2
- Screwing Power:5600nm
- Pile/Drill Diameter:90-400mm
- Work Efficiency:200-450, Day
- Transport Package:20" Container
- Specification:4500*1970*2440mm
- Trademark:LongYe
- Origin:Shandong
- HS Code:8430419000
Description
Basic Info.
Model NO. MZ130Y-2 Screwing Power 5600nm Pile/Drill Diameter 90-400mm Work Efficiency 200-450/ Day Transport Package 20" Container Specification 4500*1970*2440mm Trademark LongYe Origin Shandong HS Code 8430419000Product Description

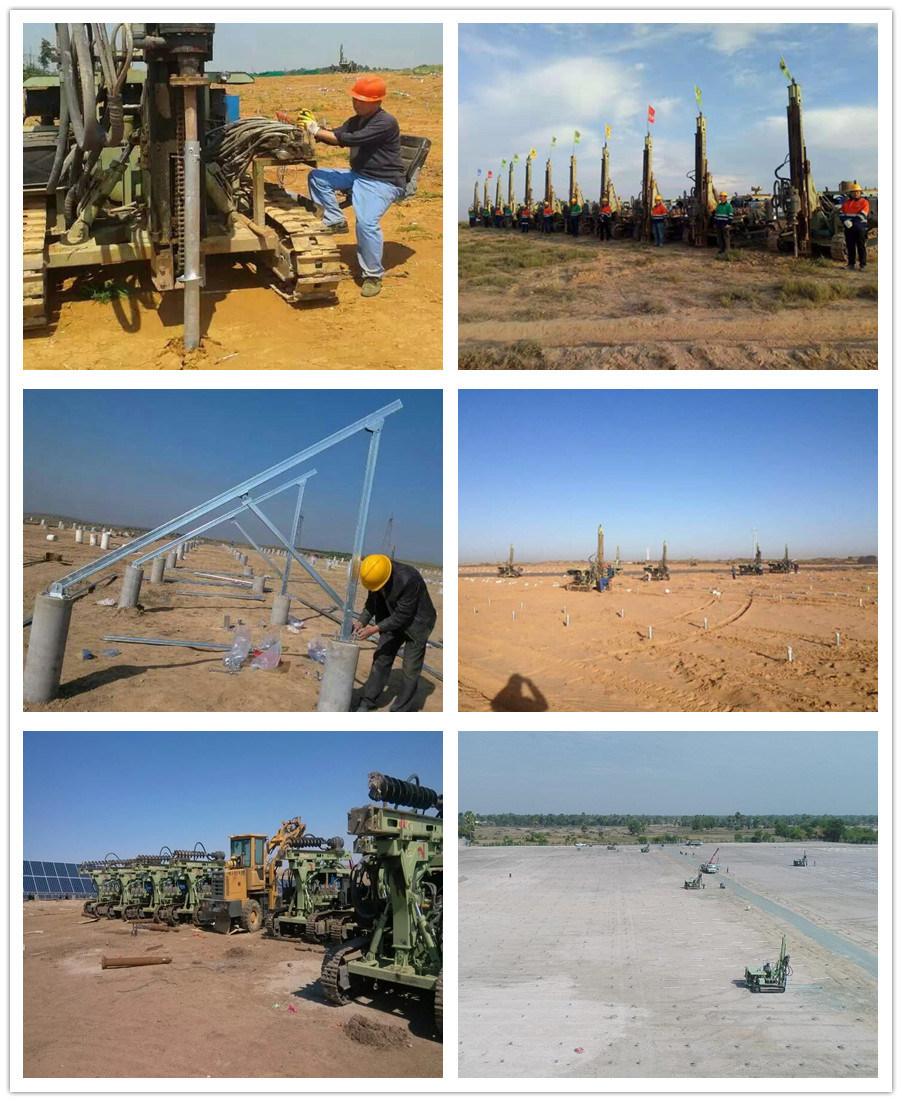

We are China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and weexported to over 60 countries !
Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling
rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill
hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of
Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai
High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our
company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering

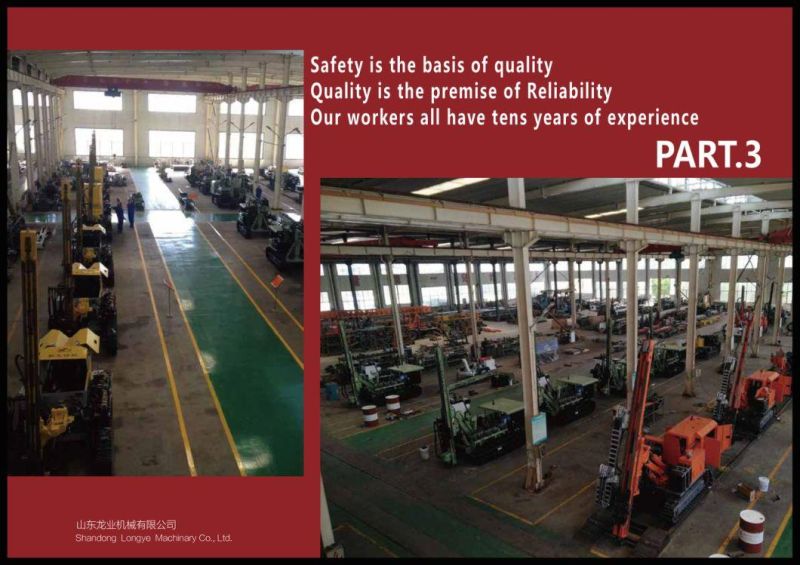

technicians, who all are specialized drilling rig mechanical design talents. Our company has more than 30 sets of
advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has
our own heat treatment production workshops and surface treatment equipment. On the basis of advanced
production equipment and more than 10 years of experience, our company has developed and produced three
series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well
throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60
countries...
Technical parameters
- Drill maximum 3m long ground screw piles.
- Drill 130-400mm diameter auger spiral soil holes.
- Drill 90-350mm diameter DTH stone rocky ground holes .
- Working on flat ground or maximum 15 degree slope ground
Air pressure (Mpa) | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Air consumption (m3/min) | 10-26 |
Bore diameter(hammer) (mm) | 90-300mm |
Bore depth (m) | 20-100 |
Once promotion(mm) | 2000 |
Screw pipe diameter (mm) | 76/89 |
For rock | F=6-20 |
Bore diameter(screw)(mm) | Max 400mm |
Skid pitch(.) | 100 |
Swinging angle of skid(.) | Left and right total 40° |
Bore depth(m) | 0-30 |
Screw pipe diameter(mm) | 130-400 |
Rotation speed<=""> | 0-70 |
Host power(kw) | 56 |
Climb ability(.) | 35 |
Walk speed(kw/h) | 0-2.5 |
weight(Kg) | 4710 |
Dimension(L*W*H)mm | 4460*1950*2460 |
