Drilling Rig

Diesel Mobile DTH Top Drive Head Portable Water Well Drilling Rig Prices Machine 200 Meter

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Motor:Diesel Engine
  • Drill Hole Diameter:140-300mm
  • Drill Hole Depth:260m
  • Bit Type:Diamond Bit

Base Info

  • Model NO.:HQZ-260L
  • Drilling Way:Impactor
  • Type:Crawler
  • Name:Crawler Rock Drilling Machine
  • Drill Diameter:140-300mm
  • Drill Depth:320m
  • Geology:Rock
  • Once Promotion Distance:3000mm
  • Power:85kw
  • Drill Pipe:Dia.76mm Dia.89 Dia.102
  • Drill Pipe Length:3m
  • Lifting Force:35t
  • Weight:1500kg
  • Transport Package:Container
  • Specification:6100*2100*2900mm
  • Trademark:Hengwang
  • Origin:Shandong, China
  • HS Code:8430691900
  • Production Capacity:500 Sets Per Month

Description

deep well drilling rig machine for rockModelHQZ-150LHQZ-180LHQZ-260LHQZ-320LHQZ-450LHQZ-500LOverall weight (T)3.54.26.488.79.5Dimension (mm )3400*1500*24003800*1700*23504100*1900*26005500*1950*27805300*2050*27005350*2100*2700Drilling diameter(mm )130-245130-294140-300140-325130-400140-400Drilling depth(m)150180260320450500One-time advance length of the drill(mm)3000300030003000/60003000/60003000/6000Traveling speed(km/h )2.52.52.52.566Climbing ability(max )253030302525Minimum Ground Clearance(mm)250250250230300350Working Air Pressure(mpa )1.45 - 2.51.7-2.51.7-3.01.7-3.31.7-3.51.7-3.5Air consumption15 - 2715 - 2717-352317-3517-35Main machine power(kw)42 /Yunnei60/ Yunnei85/Yuchai92/Yuchai100/6 cylinder114/6 cylinder

Detail Photos
1.Pneumatic dth drilling rig mainly drilling rock use together with air compressor .
2.It have rubber and steel crawler ,mast can be customized 6m.
3.Drilling speed can be 30m per hours .
4.Use import hydraulic pump and valve .



Diesel Mobile DTH Top Drive Head Portable Water Well Drilling Rig Prices Machine 200 Meter
Diesel Mobile DTH Top Drive Head Portable Water Well Drilling Rig Prices Machine 200 Meter
Diesel Mobile DTH Top Drive Head Portable Water Well Drilling Rig Prices Machine 200 Meter
Diesel Mobile DTH Top Drive Head Portable Water Well Drilling Rig Prices Machine 200 Meter

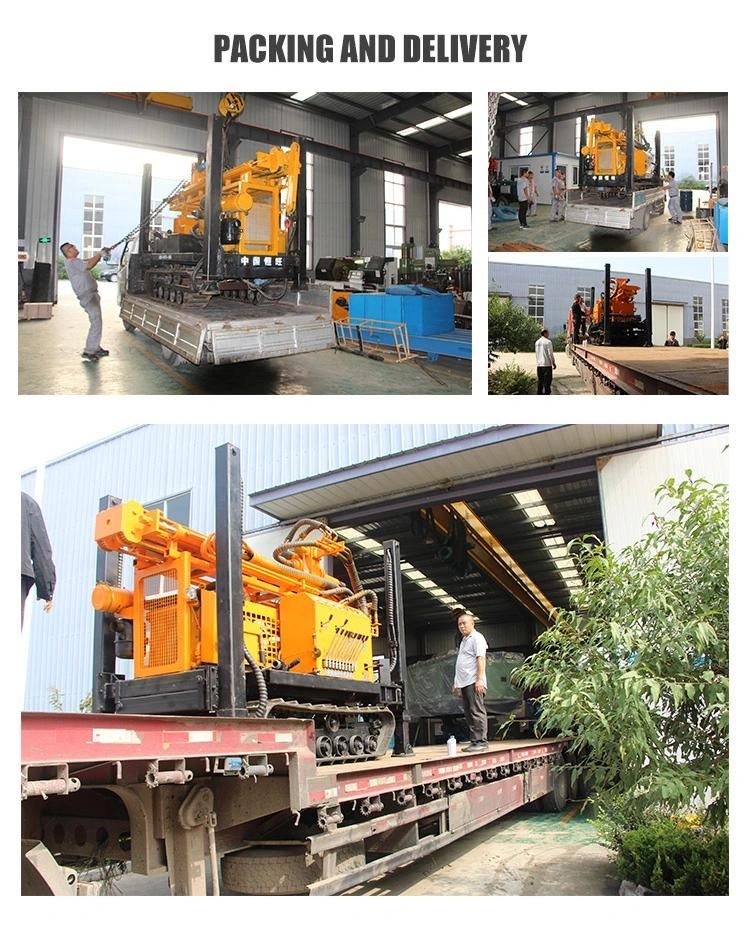

Delivery
Pneumatic dth drilling rig delivery

Diesel Mobile DTH Top Drive Head Portable Water Well Drilling Rig Prices Machine 200 Meter

Company Information:

Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
    Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well driling rig machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.

Diesel Mobile DTH Top Drive Head Portable Water Well Drilling Rig Prices Machine 200 Meter


FAQ

Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories
broken can be changed for a new one. And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor ds for your clients, and will prefer providing accessories to clients.

Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.

Q9.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
