Hf158y 80-300mm Hydraulic Portable Rock Separated DTH Hammer Drilling Rigs Mining Drill Machine
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.- After-sales Service：Online Support,Field Maintenance
- Warranty：1 Year
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：80-300mm
Base Info
- Model NO.：HF158Y
- Drill Hole Depth：100m
- Bit Type：DTH Hammer Bit
- Drilling Way：Impactor
- Drilling Diameter(mm)：80-300
- Drilling Depth(M)：100
- Rotation Speed(Rpm)：150
- Rotary Torque(N.M)：4400
- Mast Compensation(mm)：1200
- Propel Speed(M/S)：0.6
- Maximum Propel(Kn)：30
- Maximum Pull(Kn)：65
- Once Promotion(mm)：3500
- Walk Speed(Km/H)：0-4
- Transport Package：40′ Container for 2 Sets, 20′ Container for 1 Set
- Specification：6450*2280*2650mm
- Trademark：HANFA
- Origin：Zhengzhou City, China
- HS Code：843041
- Production Capacity：30sets,Month
Description

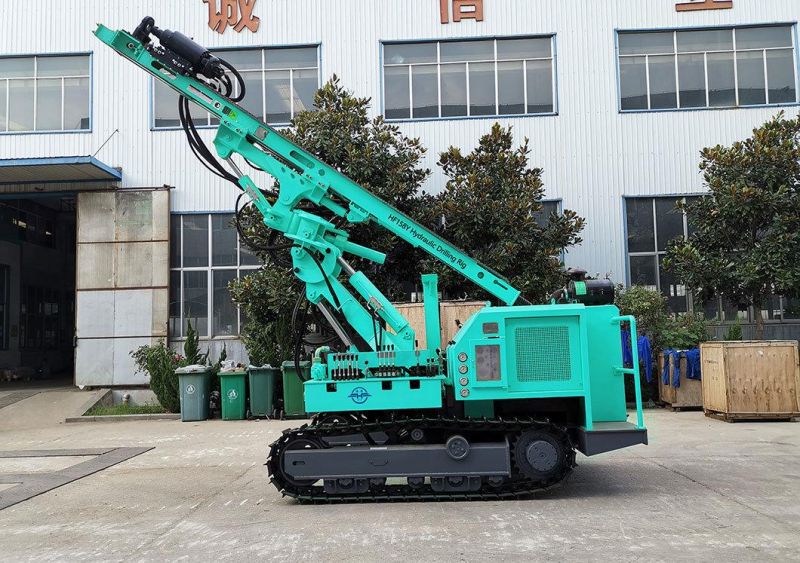

HF158Y high air pressure crawler open-air DTH Drill Rig has the advantages of low energy consumption, high efficiency, convenient field performance and transportation, the machine actions are realized by hydraulic system, only DTH hammer uses wind, so it greatly saves the cost for air compressor. The new type of rotary power head can supply and maintain strong rotary torque output during the blasting hole drilling construction. When this drilling machine dragging air compressor, they are flexibility, strong climbing ability, suitable for rugged field operation, and convenient for holes drilling.
The drilling rig has the advantages of high drilling efficiency, easy maintenance and high reliability. It is an ideal drilling rig for mining, anchoring, road building, water conservancy, power station construction and so on.
