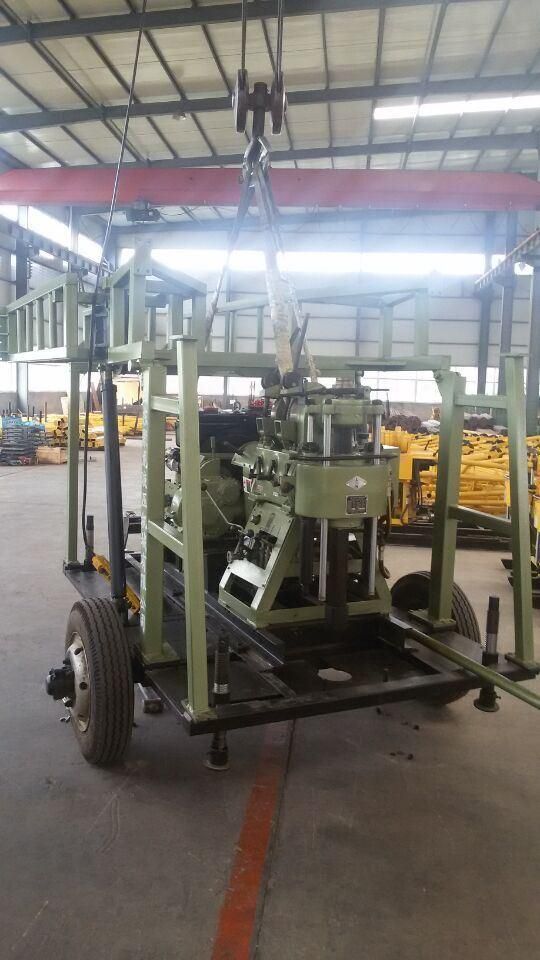

2017 Popular! Borehole Ground Water 200m Drilling Machine Core Drilling Rig

Jining Bafang Mining Machinery Group Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：XYB-2
  • Drilling Way：Compound
  • Type：Four-Wheel trailer
  • Transport Package：Natural Package
  • Specification：2.75*0.95*1.6m
  • Trademark：bafang
  • Origin：China
  • Production Capacity：100sets Per Month

Description

Unity machine parameter Drilling depth30-200Drilling diameter(mm)300-75mmDrilling Angel(°)90-75Spindle rotating speed(r/min)64,128,287,557Spindle stroke(mm)450Main hoisting capacity(single line)(Kg)1600Main hoisting line capacity(m)35hoisting speed(r/s)17,35,75,151Wireline diameter(mm)12.5Mast height(mm)7000Mast effective height(mm)6500Kelly/active pipe(mm)59*53Drill rod(mm)42,50,60Drill rig weight(kg)1150Power UnitModel :ZS1115 desiel engineRated power: 14.7kw/2200rpmBW-160 mud pumpRated flow(L/min) 160Rated pressure(Mpa) 1.3Driving power(kw) 5.15main machine weight(kg) 190Dimension(mm) 1110*725*965Chassis                                                       Model7YP-1475D1Drive ModeRear-wheel drivePower UnitModel     ZS1115E2 emission standard-GB18322-2002,GB19756-2005) Rated power(KW)  16.2 Rotating speed(r/min)  2200
2017 Popular! Borehole Ground Water 200m Drilling Machine Core Drilling Rig
