Kqz-200d Pneumatic Borehole Driilling Machine Water Well Drilling Rig
Shandong Match Machinery Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：200-250mm
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：KQZ-200D
- Drilling Way：Impactor
- Type：Four-Wheel trailer
- Power：11kw
- Air Pressure：1.45-2.5MPa
- Air Consumption：15-27L,Min
- Transport Package：Full Container
- Specification：Weight 1800kg
- Trademark：Match
- Origin：Shandong, China
- Production Capacity：5sets,Week
Description
Basic Info.
Model NO. KQZ-200D Drilling Way Impactor Type Four-Wheel trailer Power 11kw Air Pressure 1.45-2.5MPa Air Consumption 15-27L/Min Transport Package Full Container Specification Weight 1800kg Trademark Match Origin Shandong, China Production Capacity 5sets/WeekProduct Description

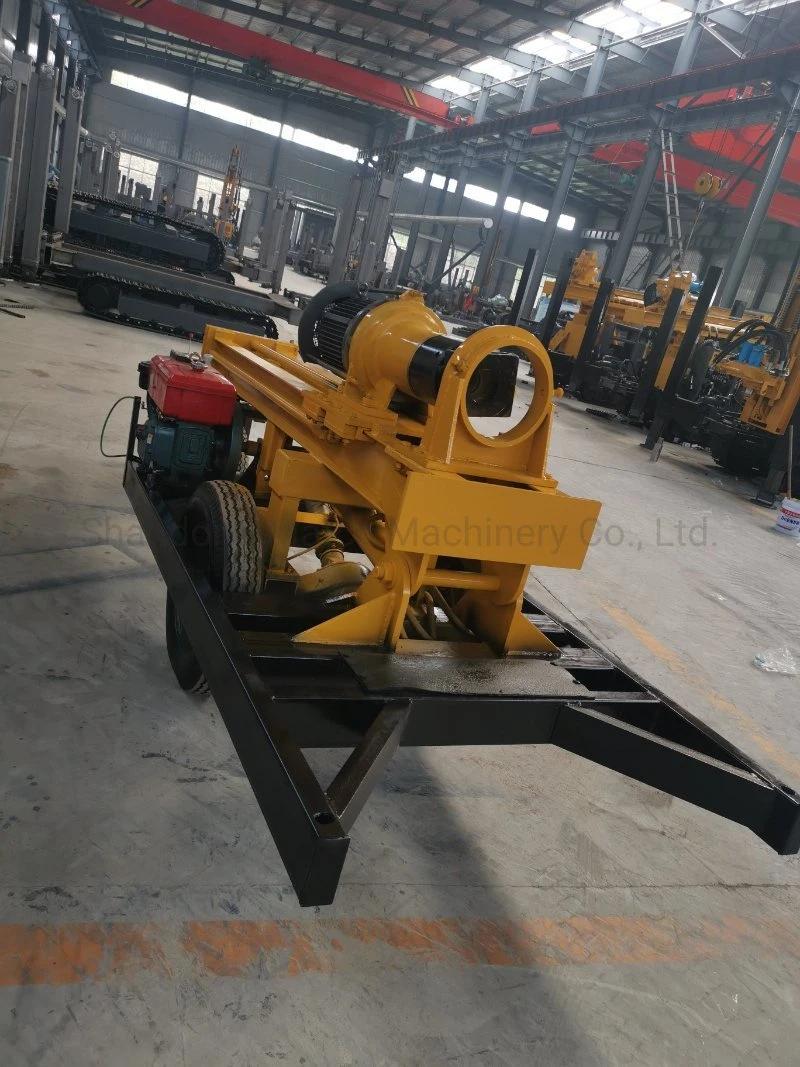

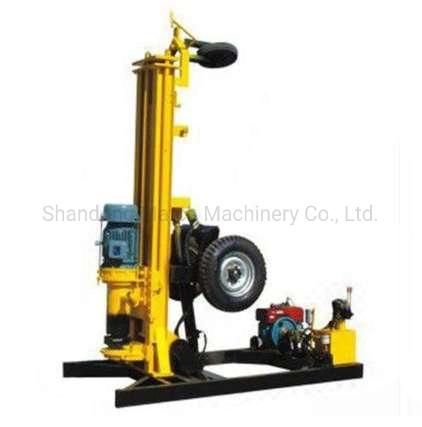

KQZ-200D pneumatic borehole driilling machine water well drilling rig
The hydraulic well drilling machine has the configuration standardization, compact structure, low failure rate characteristics, once launched namely get market recognition, application range from mining engineering construction has been extended to civil drilling, geothermal drilling and other fields,widely used for engineering, civil drilling, geothermal drilling,this series of products with the leading comprehensive won a good market reputation.
Features
1).Multi-purpose:suitable for drilling and engineering construction,widely used for engineering, civil drilling,geothermal drilling.
2).Good quality:it has the configuration standardization compact structure, low failure rate characteristics.
3).Applicable areas:it can work in any temperament,and mostly used in mountain,foothills areas.
4).Fast speed:drilling speed is 1m/3-7minutes,but other brand machine is more slowly than it.
5).Cost little:it can work with 2 people,save manpower cost,and its drilling speed is more quickly.
6).Motor:it can work with the motor for 11Kw,and with it you can configuration air compressor.
Product Parameters
Model | KQZ180D | KQZ200D |
Hole diameter | 100-219mm | 80-219mm |
Hole depth | 150m | 200m |
Total weight | 1000kg | 1800kg |
Use pneumatic | 0.8-2.1mpa | 1.45-2.5mpa |
Motor power | 7.5kw | 11kw |
One-time launch length | 1.8m | 1.5m |
Drill post back speed | 0-62 | 52 |
Gas consumption | 13-21m3/min | 14.5-26 m3/min |
Drilling direction | ground into 45-90 degrees | ground into 45-90 degrees |
Application
