• Model NO.：zt-300
• Drilling Way：Rotary
• Type：Diesel Type
• Transport Package：Wooden Box
• Specification：1100X600X500mm
• Trademark：bafang
• Origin：China
• Production Capacity：500sets,Month

Basic Info.

Model NO. zt-300 Drilling Way Rotary Type Diesel Type Transport Package Wooden Box Specification 1100X600X500mm Trademark bafang Origin China Production Capacity 500sets/Month

Product Description

Portable 30M,50M,80M,100M portable water well drilling equipment Small Economical light drill !

Product Description
Application
ZT300 portable water well driling rig mainly used for farm irrigation and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.

Features and Advantages
1. Light weight. The main engine is only weighted 0.135tons.
2. Easy to operate. Needing little experience to operate.
3. Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.
4. Carbide tipped drill. Can drill through hard stratum, except for thick rock layer.
5. Reducing labor intensity. Equipped with lifting mechanism.
6. High efficiency. In plain area, the drilling speed could reach 20 meters depth per hour.
7. Economical. It can be called the most economical water well drilling machine.

The technical parameter:

Drilling depth 60-80m
Drilling diameter 70-300mm
Power Engine 15HP
Overall dimension of the main engine (LXWXH) 1100X600X500mm
Weight (main engine) 135kg
Total Package 2300x860x860mm
Total weight 650KG

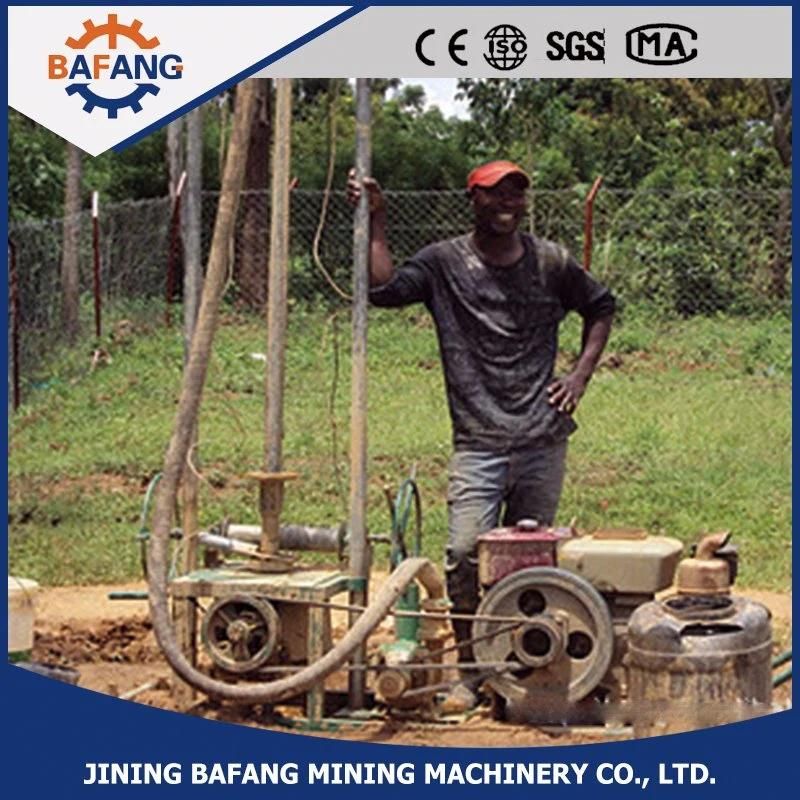

SHow photos
