Factory Wholesale 200m Small Water Well Borehole Down-The-Hole Drill Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：130-294mm
- Drill Hole Depth：220m
- Bit Type：Diamond Bit
Base Info
- Drilling Way：Impactor
- Type：Crawler
- Name：Crawler Pneumatic Rock Drilling Machine
- Drill Diameter：130-294mm
- Drill Depth：220m
- Geology：Rock
- Once Promotion Distance：2000mm
- Drill Pipe：Dia.76mm Dia.89 Dia.102
- Drill Pipe Length：3m
- Impact Frequency：0-900r,Min
- Weight：4200kg
- Air Consumption：15-27m3,Min
- Transport Package：Container
- Specification：3800*1700*2350mm
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430691900
- Production Capacity：500 Sets Per Month
Description
Model
HQZ220L
Overall weight (T )
4.2
Dimension (mm )
3800*1700*2350
Drilling diameter (mm )
130-294
Drilling depth (m )
220
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
30
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.7-2.5
Air consumption (m³/min)
15-27

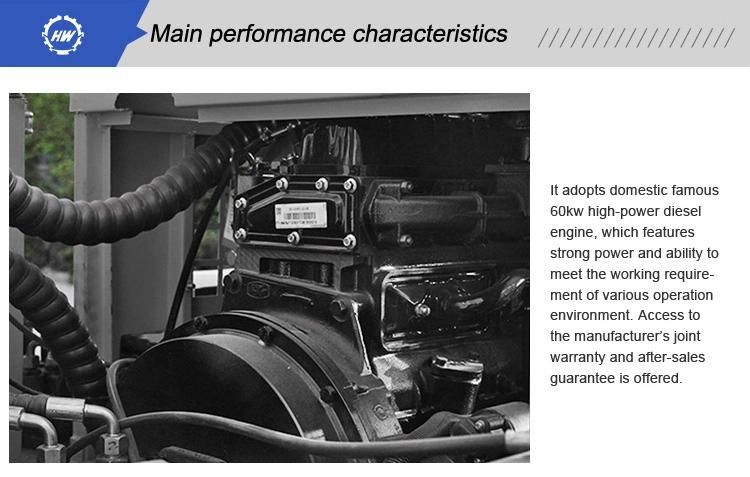

Main machine power (kw)
Yunnei 60Kw
Rotary Speed (rpm)
48 - 70
Rotary torque (Nm )
4200-5600

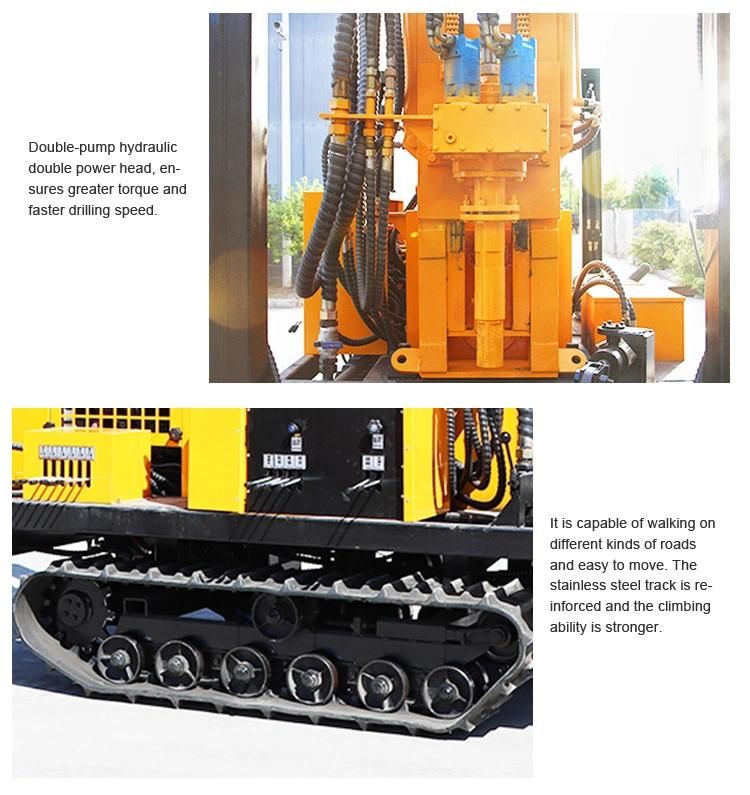

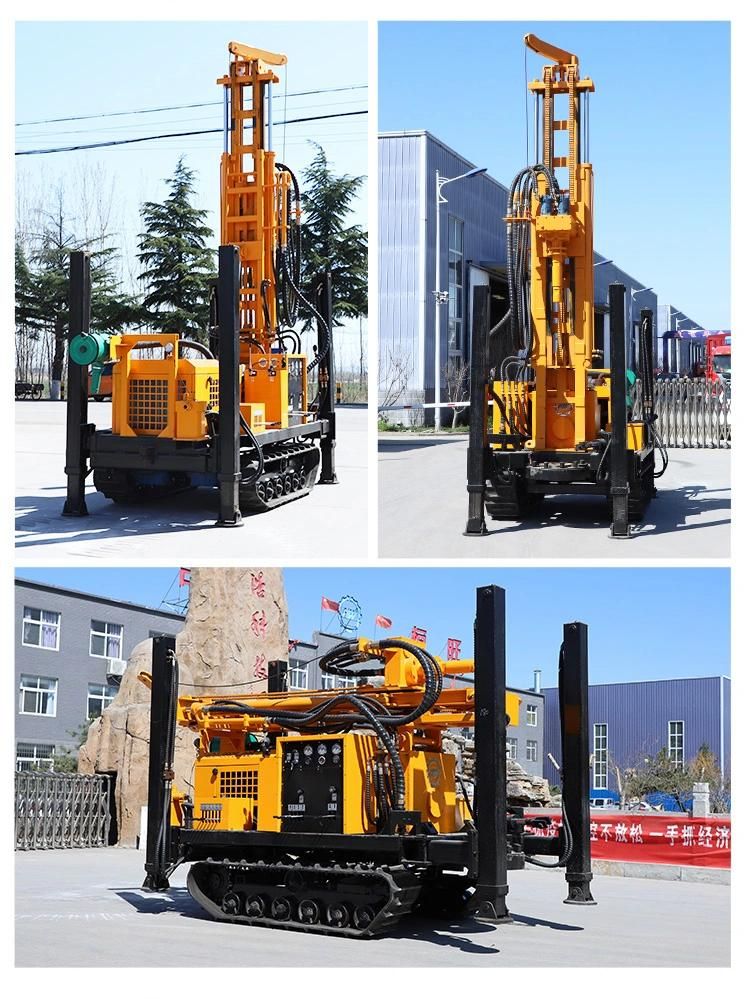

Detail Photos
1.Pneumatic dth drilling rig mainly drilling rock use together with air compressor .
2.It have rubber and steel crawler ,mast can be customized 6m.
3.Drilling speed can be 30m per hours .
4.Use import hydraulic pump and valve .

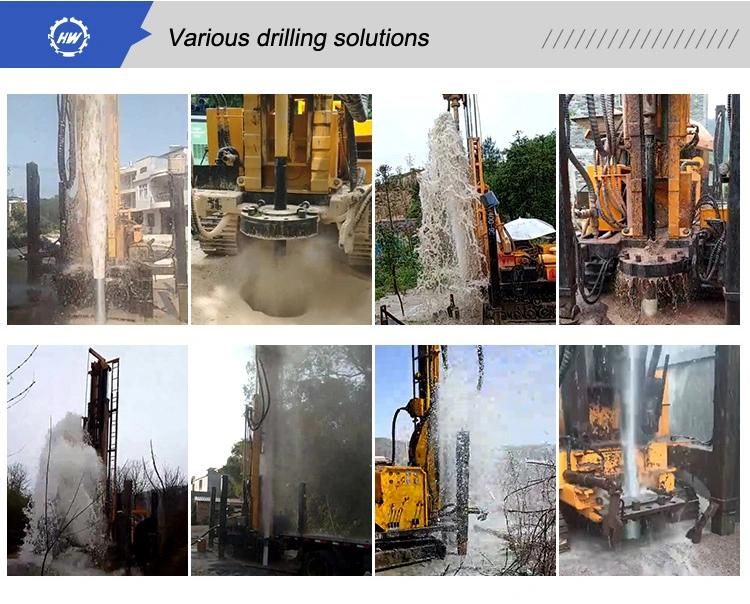

Application&Feedback

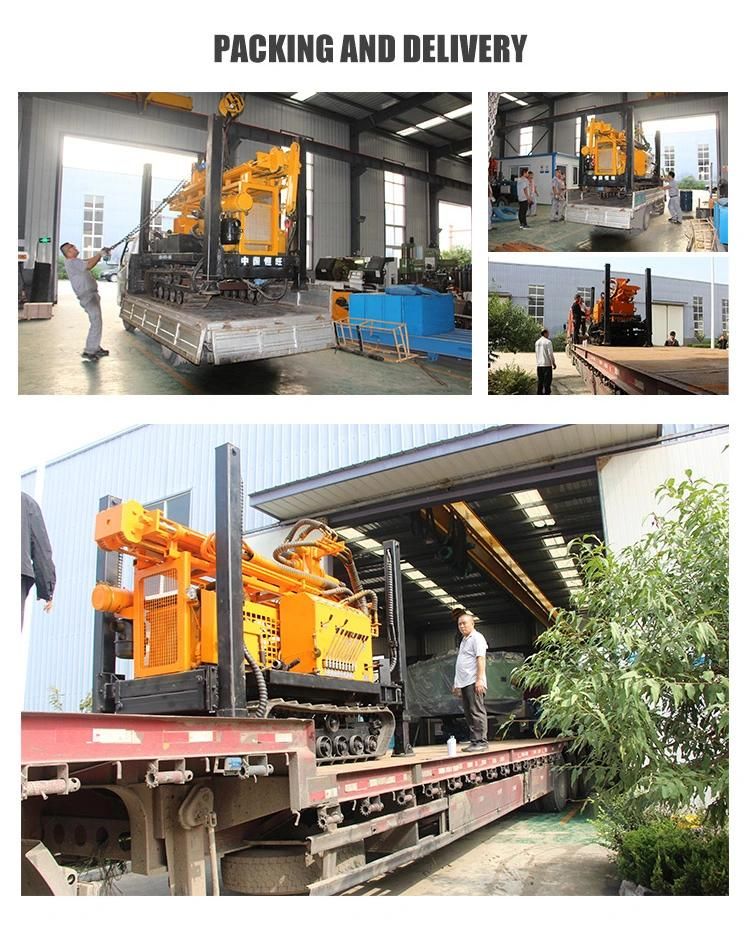

Pneumatic dth drilling rig delivery
Delivery
Pneumatic dth drilling rig delivery
