• Model NO.：GL-I
• Drilling Way：Rotary
• Type：Four-Wheel trailer
• Hole Diameter(mm)：90--1000
• Hole Depth(M)：120 Max
• Run of Rod(M)：3
• Specification：4785*2020*5650
• Trademark：GLORYTEK
• Origin：Beijing China
• Production Capacity：20000piece,Year

Hole diameter(mm): 90--1000

Dimensions(mm)(L-W-H)Working conditions
4785×2020×5650

Hole depth(m): 120 MaxTransport status(mm): 6000×2020×2880Run Of Rod(m): 3Supporting Form: Mechanical ScrewDrill rod diameter(mm): φ60 φ73 φ89 φ95 φ133Mast Up-Down: Mechanical Drive

Drilling Technology:Normal and Reverse Circulation for both Mud and Air

Rig mass(Kg): 2500Down-The-Hole hammers: Middle-High-Pressure AirChassis: Trailer with two wheelsDrill Head Inside Diameter : φ35 φ60 φ80Power Unit: Diesel EngineDrill Head Lifting Speed(m/s): 0.25 0.15Power(kW): 22Drill Head lifting Force(kN): 55.40 94.55Pump :FSB-50 composite two-stage pump group

Drill Head Spin Speed:

A(Forward:14-30-66,Reverse (r/min): 13-23-50

Flow(m3/h):50,

Feed Thrust(kN): 0-15

B(Forward:47-81-178,Reverse (r/min): 36-62-137Main Hoist Lifting Force(kN): 18.54

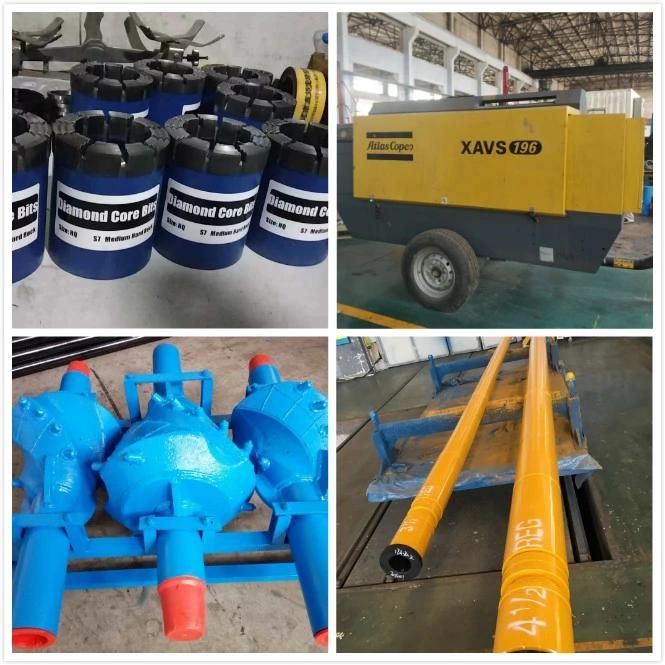

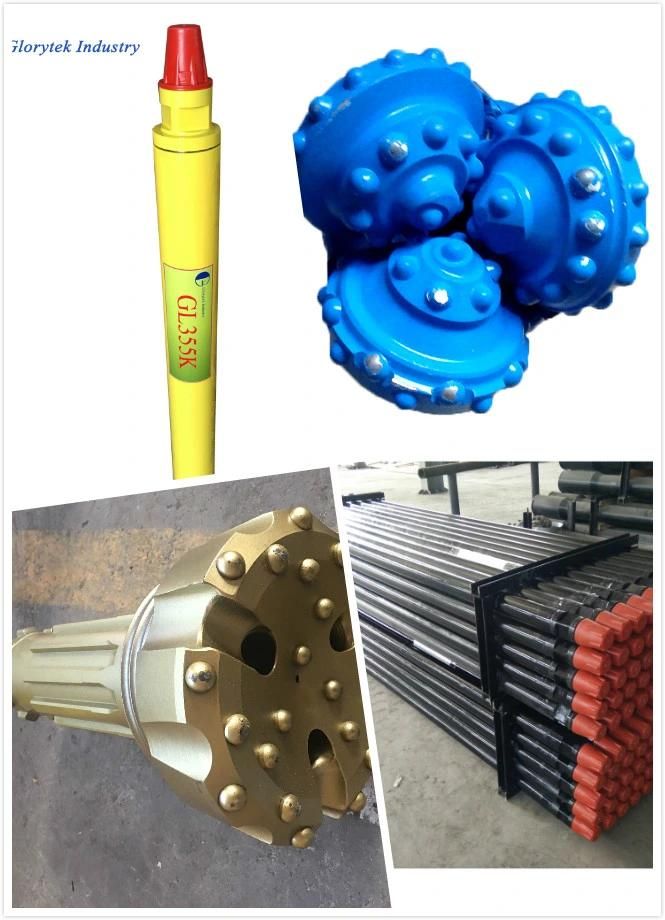

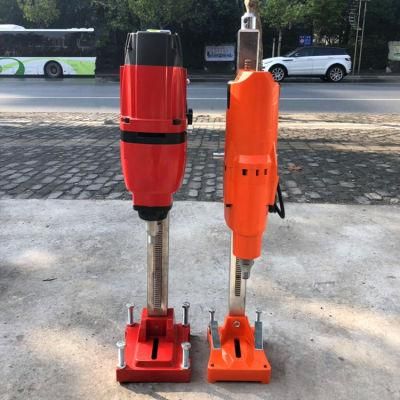

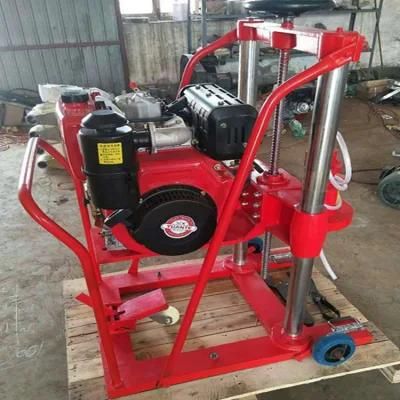

Related Product






Our Company & Service



Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

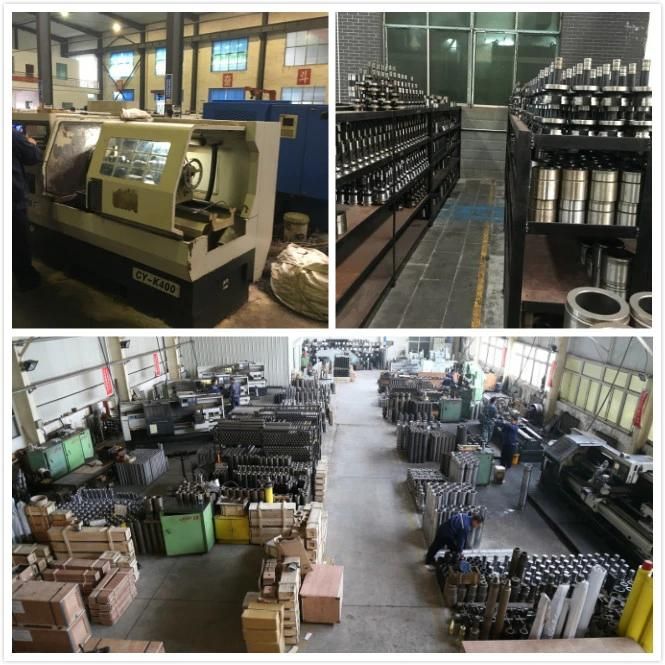

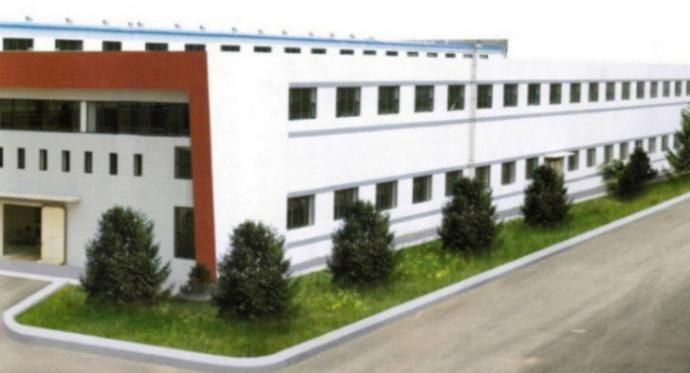

Factory Picture

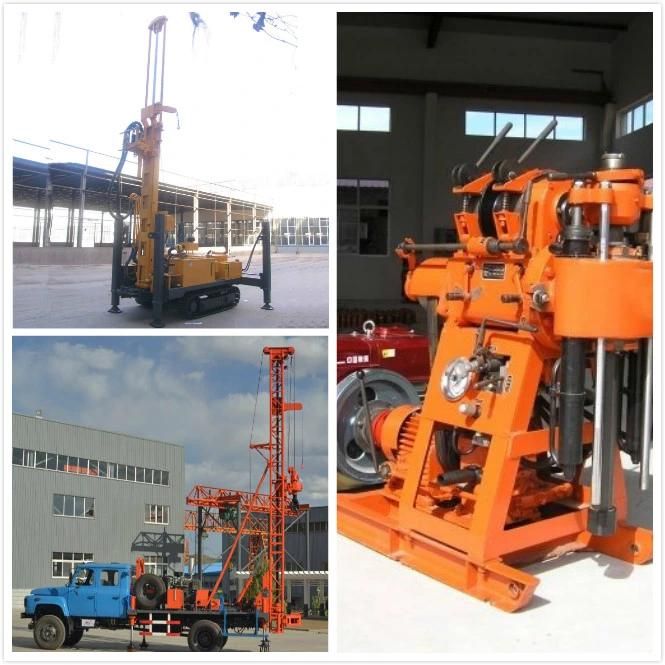

Customer photos


Exhibition




FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?

A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
