High Efficiency Multi- Purpose Core Drilling Machine (HGY-1000)
Changsha Miracleland Import & Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：76-300mm
Base Info
- Model NO.：HGY-1000 Core Drilling Rig
- Drill Hole Depth：1000m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Quality：High Quality
- Stability：Good
- Chuck：Hydraulic Chuck
- Dimensions：2400X1020X1765mm
- Usage：Ore, Water Well, Coal
- Type：Core Drilling Rig
- Transport Package：in Plywood Case
- Specification：1000
- Trademark：FLYDISC
- Origin：Changsha City, Hunan Province, China
- HS Code：8430691900
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. HGY-1000 Core Drilling Rig Drill Hole Depth 1000m Bit Type Diamond Bit Drilling Way Rotary Quality High Quality Stability Good Chuck Hydraulic Chuck Dimensions 2400X1020X1765mm Usage Ore, Water Well, Coal Type Core Drilling Rig Transport Package in Plywood Case Specification 1000 Trademark FLYDISC Origin Changsha City, Hunan Province, China HS Code 8430691900 Production Capacity 30 Sets/MonthProduct Description
HGY-1000 Core Drilling Rig:Drilling depth(m): 1000;
Spindle Stroke(mm): 600;
Spindle lifting power max. (KN): 80;
Spindle driving force max. (KN): 60;
Oil pump type: CB-F32C-FL;
Product Features:
Compact in structure and light weight.
High reliability, good performance and durability.
Common auto parts, such as clutch and declutch structure, transmission case and shiftine structure.
Easy operation and high efficiency with Synchronizer for shifting while the rig is Running.
Suitable to wide range of rotation inner dia. 95mm.
Be attached to the tower.
Product Application:
It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

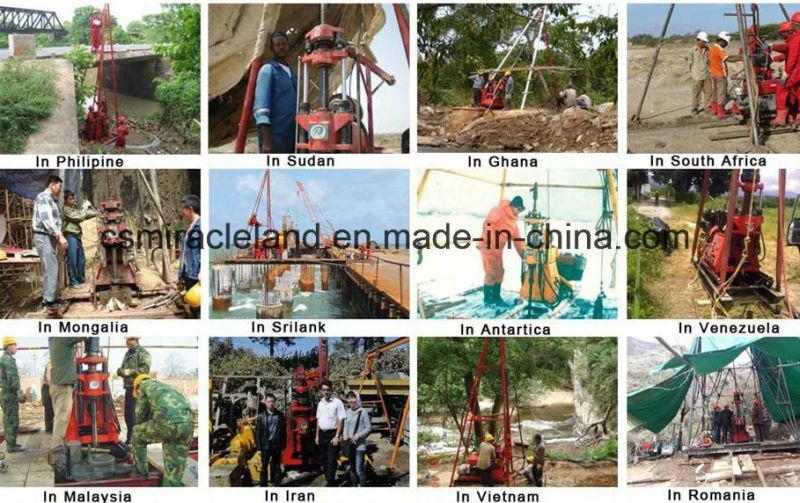

Our drilling rigs are all over the world!

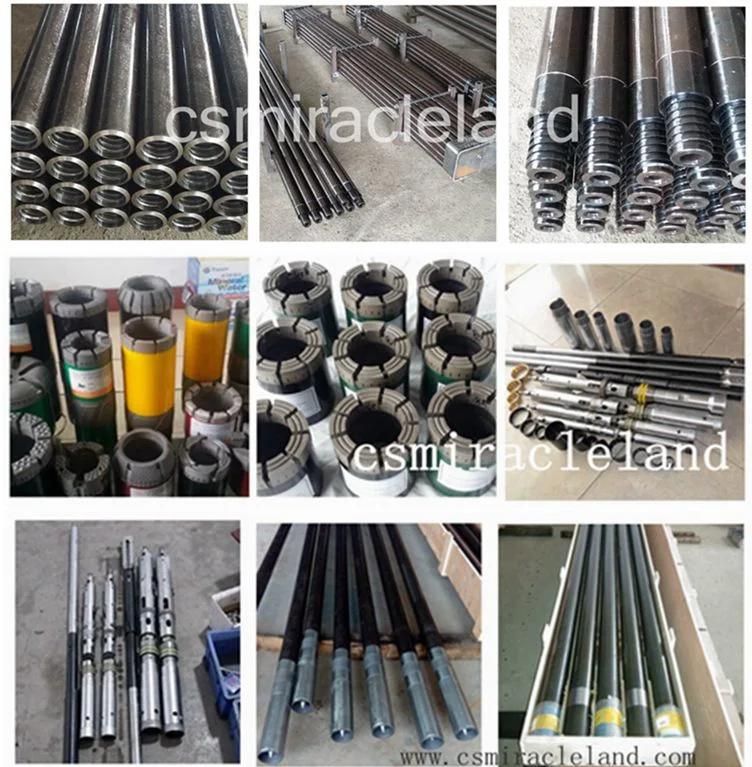

All kinds of international standard core barrels to meet the different drilling demands for the customers!

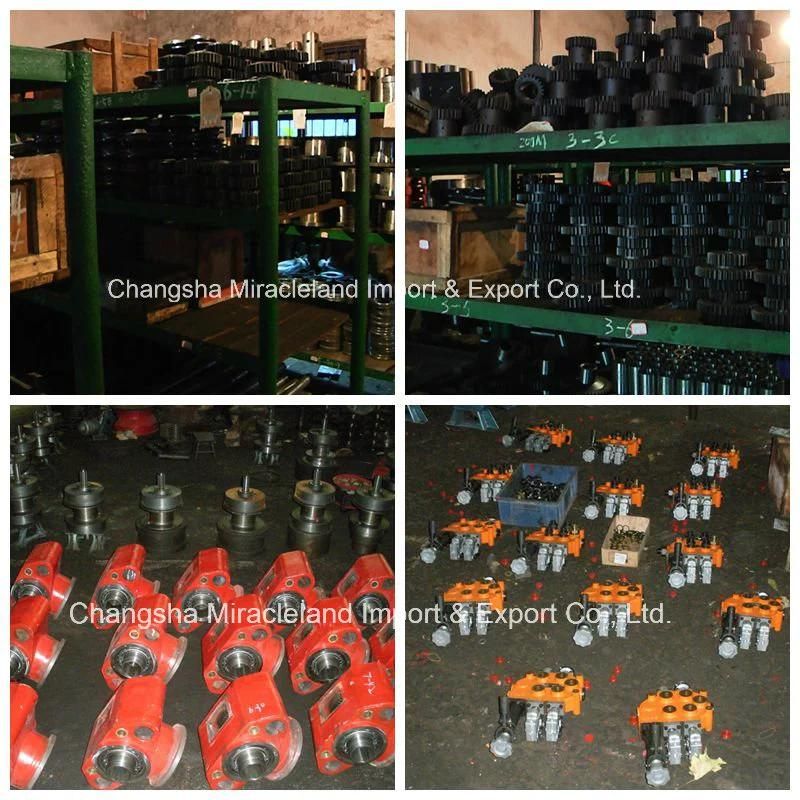

We supply the plenty of drilling rig spare parts for all customers, no worries for after -sale services!
The technical parameters of HGY-1000 drilling rig:
| Type | HGY-1000 Drilling Rig |
| Drilling depth(m) | 1000 |
| Oil pump type | CB-F32C-FL |
| Oil pump nominal displacement(ml/r) | 32 |
| Stroke of moving cylinder (mm) | 400±10 |
| Spindle speed(r/min) | Positive rotation rate: 51931602463501492684637101011 Reverse rotation rate: 57164 |
| Spindle hole diameter(mm) | Φ95 |
| Spindle output torque(N.M) | 5055 |
| Spindle stroke(mm) | 600 |
| Spindle driving force max.(KN) | 60 |
| Spindle lifting power max.(KN) | 80 |
| Speed of single rope of the third layer(m/s) | 0.440.801.382.123.02 |
| Lift capacity of single rope max.(KN) | 35 |
| Diameter & Length of drum(mm) | Φ15x100 |
| Max distance from the hole(mm) | 250 |
| Weight(power unit excepted)(kg) | 1720 |
| Dimensions(L x W x H)(mm) | 2400x1020x1765 |
| Diesel engine type | K4100ZD |
| Diesel engine power (KW) | 41 |
| Oil pump nominal rotative velocity(dmin) | 1800 |
| Oil pump nominal pressure(MPa) | 16 |
| Electric motor type | YB200L-4 |
| Electric motor power(KW) | 30 |
