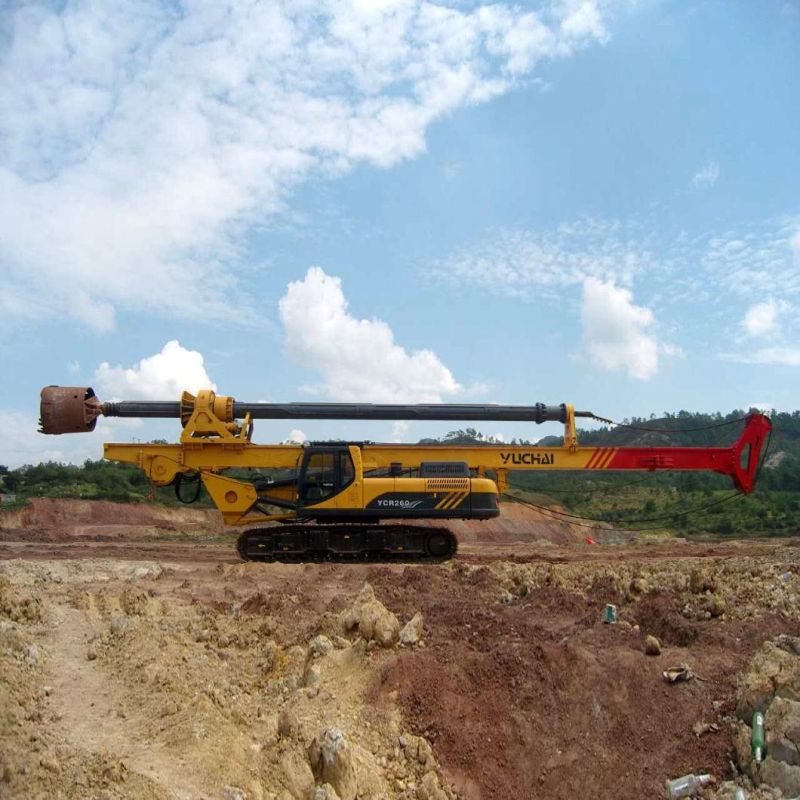

Cheaper Drilling Rig Yuchai Rotary Drilling Rig Ycr260
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：>300m
- Bit Type：Drag Bit
Base Info
- Model NO.：YCR260
- Drilling Way：Rotary
- Max. Drilling Torque：160kn.M
- Drilling Diameter：1500mm
- Base Engine：Mitsubish
- Drilling Depth：42m
- Transport Package：Nude by Roro
- Specification：13055*4100*3262mm
- Trademark：YUCHAI
- Origin：China
- HS Code：84305090
- Production Capacity：100 Sets,Month
Description
Project
Parameters
Chassis
Engine Type
Cum QSM11-C330
Engine Power/Speed
246/2100
Crawler Expansion Width (From The Outside)
4400
Crawler Board Width
800
Traction Force
520
Power Head
Max. Output Torque
260
Power Head Speed
6-25
Max.Pull-Down Piston Push
200
Max.Pull-Down Piston Pull
250
Pressurized cylinder Stroke
5000
Winch
Main Winch
Max.Line Pull of the first layer
280
Max.Line Speed
55
Wire Rope Diameter
32
Auxiliary Winch
Max.Line Pull of the first layer
80
Max.Line Speed
65
Wire Rope Diameter
20
Mast
Mast Forward Inclination
5
Mast Sideward Inclination
4
Hydraulic Pump
Max. Working Pressure
35
Depth and Diameter
Max. Drilling Diameter
2500
Max. Drilling Depth
80
Drilling Pipe
Drilling Pipe
508
Working State Quality
82
Project
Parameters
A
Working State Height
22269
Working State Width
4400
B
Transportation State Length
16165
C
Transportation State Height
3510
Transportation State Width
3300
D
Crawler Length
5816
E
4264
F
2275
G
1050
