Drilling Rig

portable hydraulic chain feed drilling machine used for Exploratory Drilling

Zhengzhou Lead Equipment Co., Ltd.
  • After-sales Service:Yes
  • Warranty:Yes
  • Certification:CE, ISO 9001:2008
  • Condition:New
  • Motor:AC Motor
  • Drill Hole Diameter:80-100mm

Base Info

  • Model NO.:LPD100H
  • Drill Hole Depth:20-30m
  • Bit Type:Diamond Bit
  • Drilling Way:Rotary
  • Drill Rod:60*1000mm
  • Rotary Speed:0-93rpm
  • Working Pressure:0.5-0.7MPa
  • Air Consumption:>10m3,Min
  • Lifting Force:9600n
  • Performance:Excellent
  • Color:Customized
  • Transport Package:Standard Export Packing
  • Specification:ISO, CE
  • Trademark:Leadcrete
  • Origin:Henan China
  • HS Code:84303900
  • Production Capacity:100 Sets,Month

Description

Overview Product Description

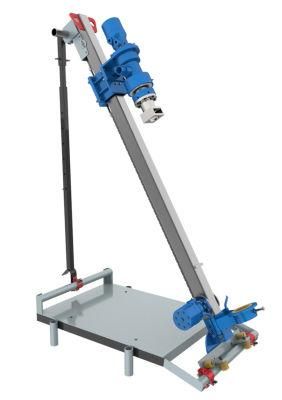

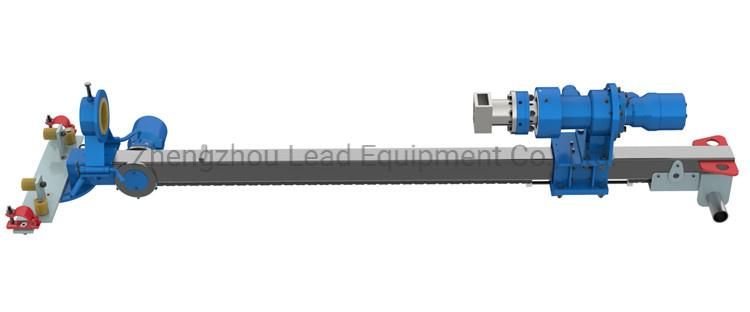

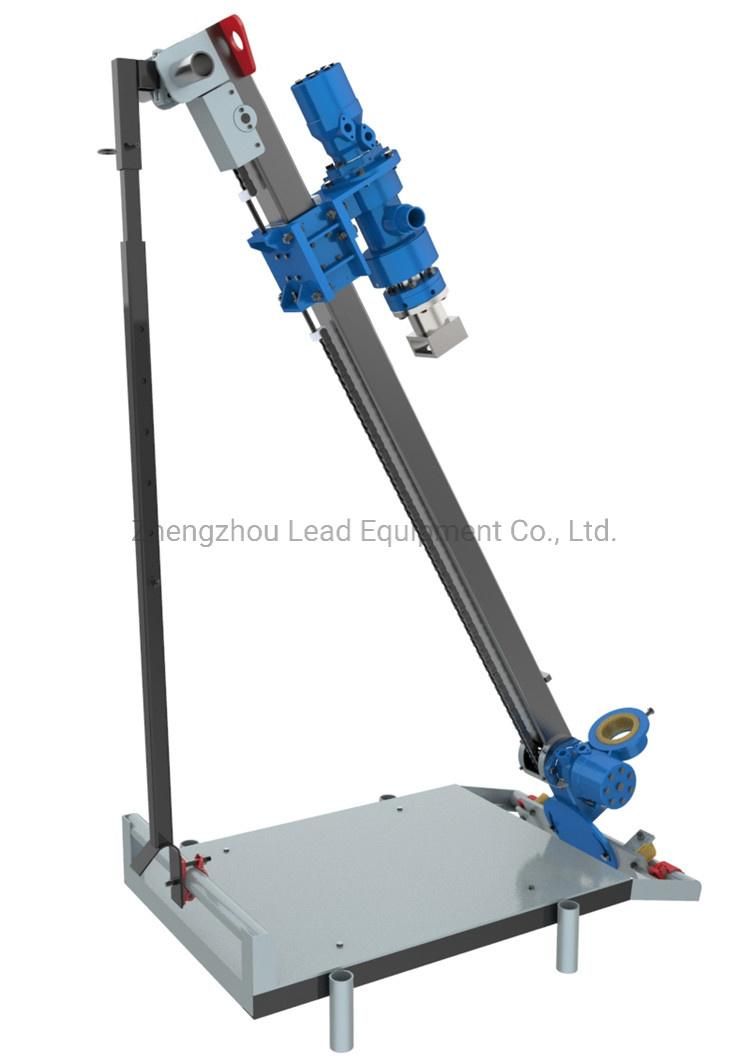

Detailed Photos

portable hydraulic chain feed drilling machine used for Exploratory Drillingportable hydraulic chain feed drilling machine used for Exploratory Drilling
Super portable, Super lightweight

Hydraulic portable chain feed drilling machine is widely used for the below project:

  • Product Parameters

    portable hydraulic chain feed drilling machine used for Exploratory Drilling

    ModelLPD100H
    Hole Diameter80~120mm
    Hole Depth30m
    Feed Force12KN
    Rotate Speed90~120rpm
    Torque1000NM
    Air Pressure0.5~0.7Mpa
    Air consumption7~8m3/min
    Single feeding distance1m
    Drilling DirectionAny Angle
    Weight86Kg (Only drill machine)

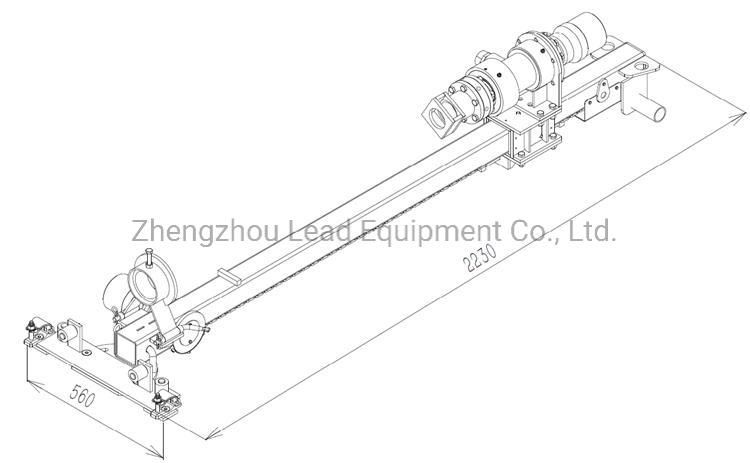

    Dimension2230x560x415mm

    If you are looking for this product, please contact us and support customization!

    portable hydraulic chain feed drilling machine used for Exploratory Drilling
