Fy-180 Portable Steel Crawler Full Hydraulic DTH Borehole Water Well Drilling Rig

Changsha Miracleland Import & Export Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：140-254mm

Base Info

  • Model NO.：FY-180
  • Drill Hole Depth：180m
  • Bit Type：DTH Bit
  • Drilling Way：DTH Drill
  • Type：Crawler
  • Power：60kw
  • Stability：Good
  • Engine Brand：Yuchai or Cummins
  • Transport Package：Plastic Film
  • Specification：180
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430412900
  • Production Capacity：30 Sets,Month

Description

FY-180 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth180mDrilling diameterΦ140-Φ254mmWorking air pressure1.7-2.5MPaAir consumption17-31m3/minDrilling pipe diameterΦ76, Φ89Length of drill pipe1.5m, 2.0m, 3mOne push length3.3mTramming speed2.5km/hClimbing ability (Max.)30°Rig lifting force12TRotation speed45-70 rpmThe penetration efficency10-35m/hRotation torque4200-5600 N.mPower60 KwThe engine brandYuchai or CumminsWeight5.2TDimension4000x1630x2250mm

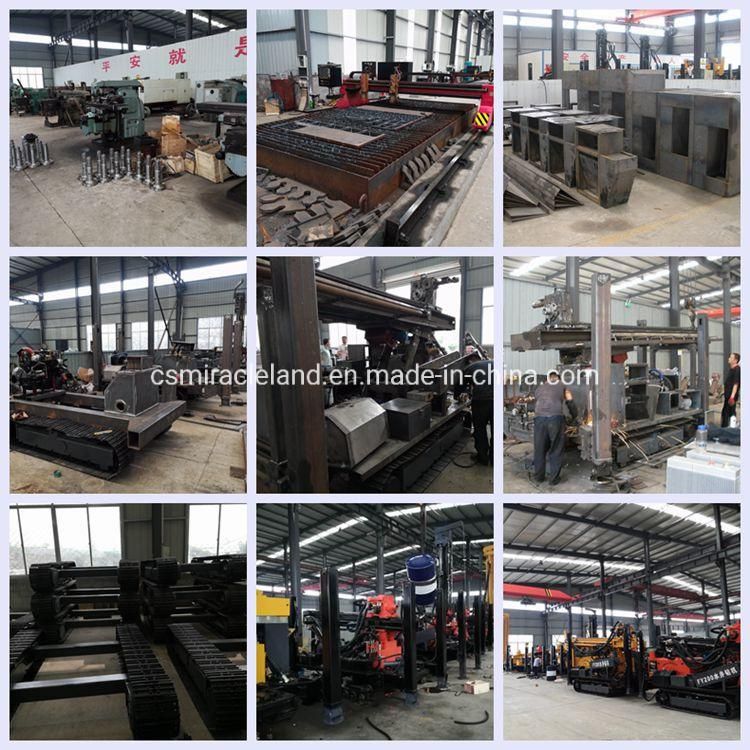

Production Flow:

Fy-180 Portable Steel Crawler Full Hydraulic DTH Borehole Water Well Drilling Rig

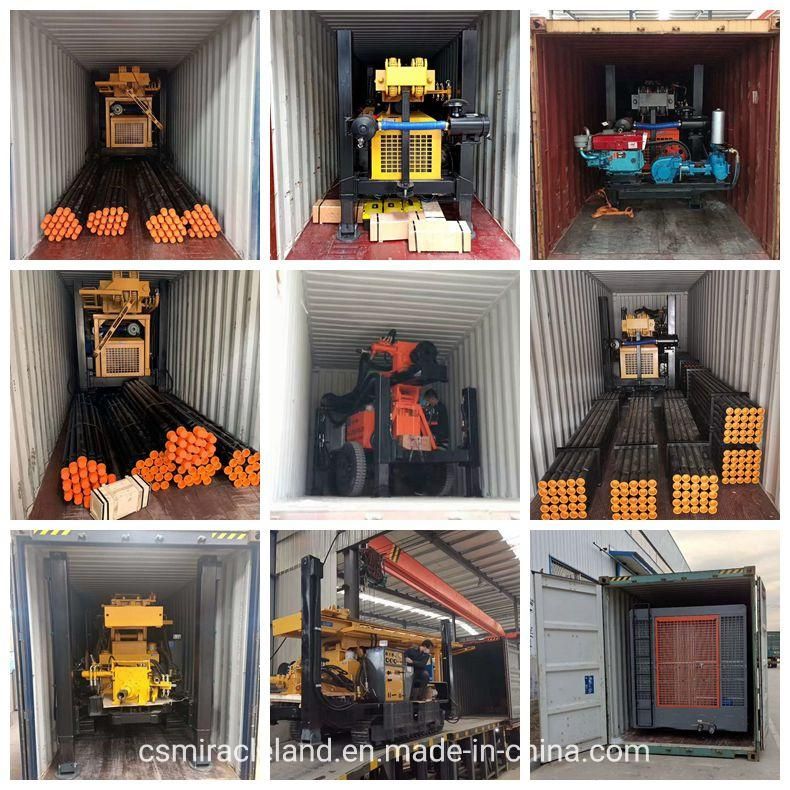

Packaging & Shipping:

Fy-180 Portable Steel Crawler Full Hydraulic DTH Borehole Water Well Drilling Rig
