Substructure for Heavy Drilling Rig Workover Rig Truck Mounted Drilling Rig

Puyang Chensheng Petroleum Technology Co., Ltd.
  • After-sales Service：1year
  • Warranty：1year
  • Certification：ISO 9001:2008
  • Condition：New
  • Transport Package：Wood Box
  • Origin：Henan Puyang

Base Info

  • Production Capacity：100

Description

Basic Info.

Production Capacity 100

Product Description

Substructure for Heavy Drilling Rig Workover Rig Truck Mounted Drilling Rig
Substructure for Heavy Drilling Rig Workover Rig Truck Mounted Drilling Rig

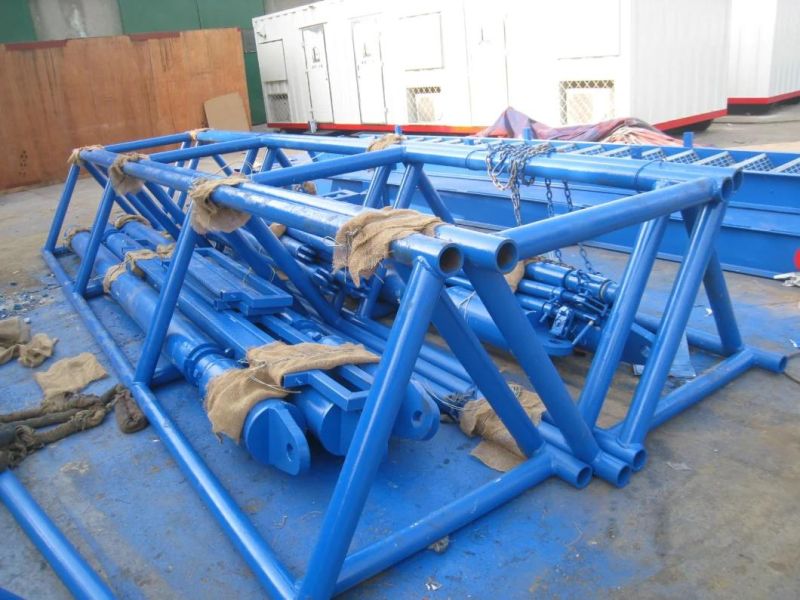

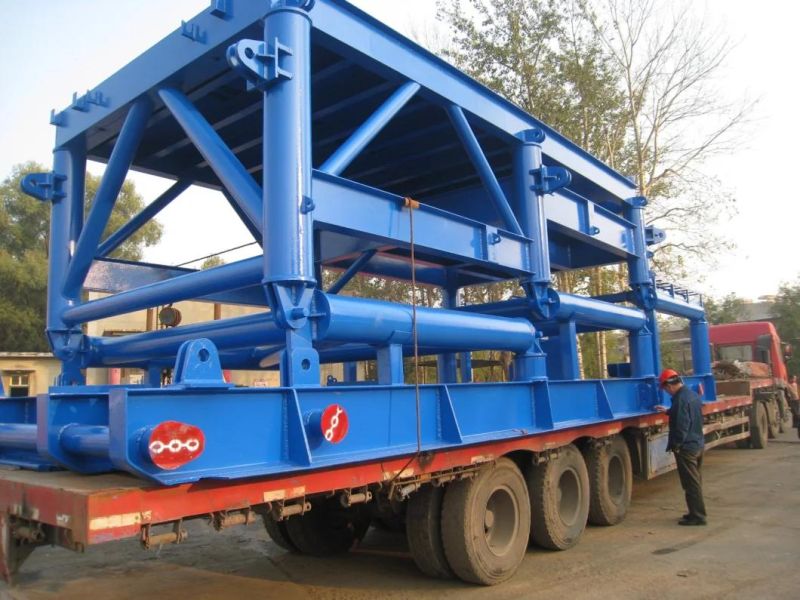

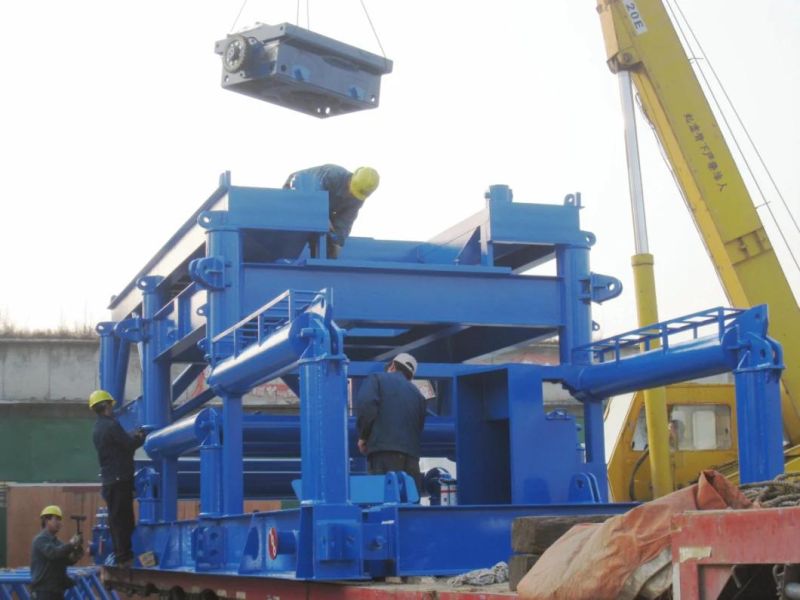

                                                                                                            Substructure
It is folding, parallelogram sturcutre;Six-pillar telescopic substructure, the rotary table surface is level with drill floor, a ladder is equipped from drill floor to ground and a ladder from main truck to drill floor, V-ramp, escaping slide. one set of ladder from drill floor to circulating tank is optional.It consists of two big tong tailrope device and one DP power tong tailrope device, and a trolley is equipped to install BOP.
 Drilling floor height 6 m
 drilling floor area(Length×width)7.4m×7.5m
Structure Parallelogram
 Clear height4.9 m  (ZP275matched with ZP275)
 Shipping height3.3 m

Max. rated clear load of rotary beam 		2250 kN
 Max. rated setback capacity4000m(4 1/2" DP)
