Sunward Swdb120A Down-The-Hole Drill Rotary Drilling Rig with Good Price

Sunward Intelligent Equipment Co., Ltd.
  • Certification：179kw,1800rpm
  • Condition：New
  • Motor：AC Motor
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Core Drilling Rig

Base Info

  • Model NO.：SWDB120A
  • Warranty：2 Years
  • Power Type：Diesel
  • Usage：Coal
  • Color：Blue
  • Applicable Industries：Advertising Company
  • Weight：14.5t
  • Dimension(L*W*H)：6.65X4.1X10.8 M
  • After-Sales Service Provided：Field Installation, Commissioning
  • Local Service Location：Indonesia
  • Voltage：Engineering
  • Showroom Location：Indonesia
  • Specification：6.65X4.1X10.8 M
  • Trademark：SUNWARD
  • Origin：Hunan, China
  • Production Capacity：100000 Set,Sets Per Year

Description

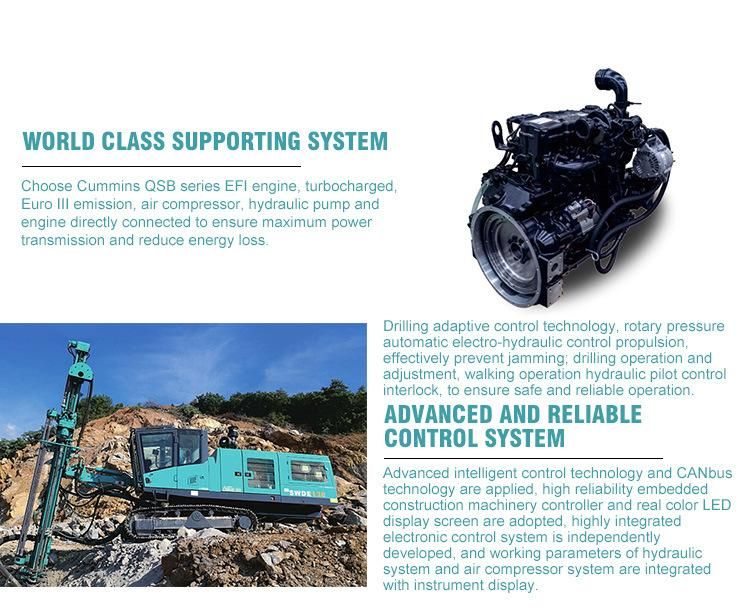

Dust collection deviceDry (standard)/ Wet (optional)Air compressorManufacturerSULLAIRModel550RHWorking pressure0.65~1.7 MPaDisplacement15.5m3/minPower179kW/1800rpmEngineManufacturerCumminsModelQSB4.5Power82kW/2200rpmFuel tank capacity360LFeedFeed beam length10500mmFeed stroke8000mmFeed extension1200mmFeed rate, max0.5m/sFeed force, max32kNForward tilting angle90°Travel capabilityTraveling speed2km/hTraction force, max100kNGradeability25°Ground clearance440mmRotaryRotary speed70rpmRotary torque3000N.mDiamensionGross weight14.5tWorking(L×W×H)6.65×4.1×10.8 mTransportation(L×W×H)10.8×3.2×3.55 m
