• Model NO.：T-SLY550
• Bit Type：DTH,Mud
• Drilling Way：Rotary
• Mud Pump：Hydraulic Power
• Air Compressor：on Truck
• Specification：8900*2100*3300mm
• Trademark：LongYe
• Origin：Shandong, China
• HS Code：8430419000
• Production Capacity：30 Sets,M

Basic Info.

Model NO. T-SLY550 Bit Type DTH/Mud Drilling Way Rotary Mud Pump Hydraulic Power Air Compressor on Truck Specification 8900*2100*3300mm Trademark LongYe Origin Shandong, China HS Code 8430419000 Production Capacity 30 Sets/M

Product Description

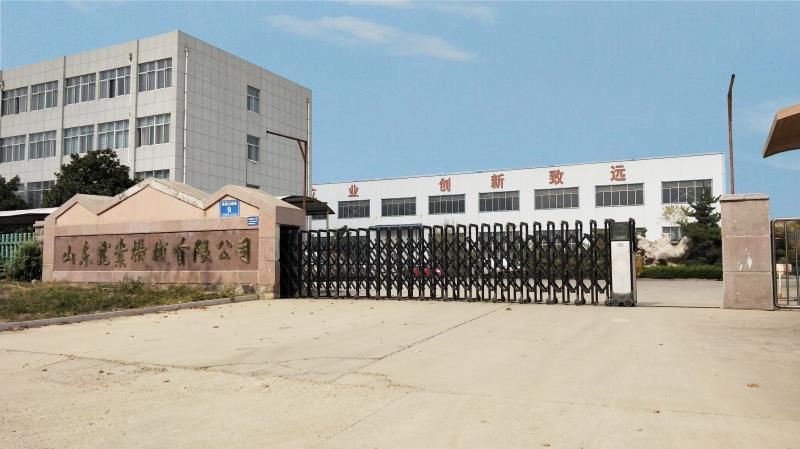

 Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling

rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill

hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of

Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai

High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our

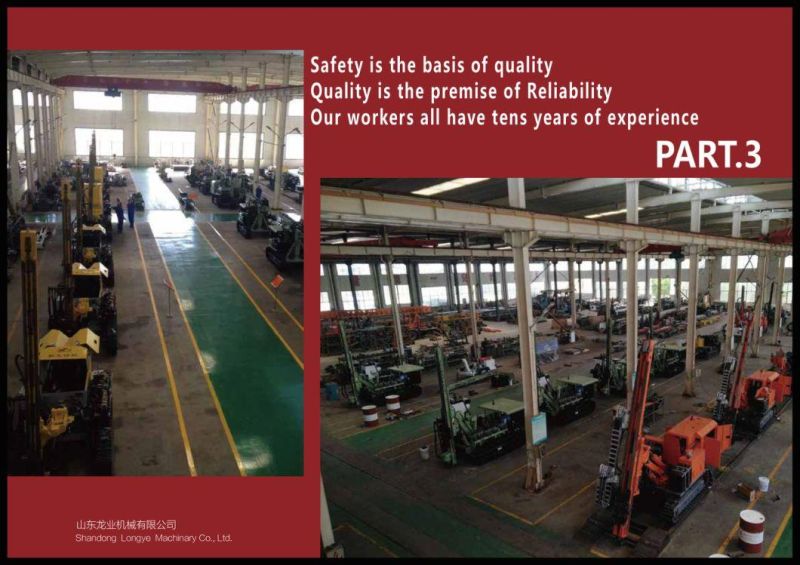

company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering

technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of

advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has

our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced

production equipment and more than 10 years of experience, our company has developed and produced three

series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well

throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60

countries...

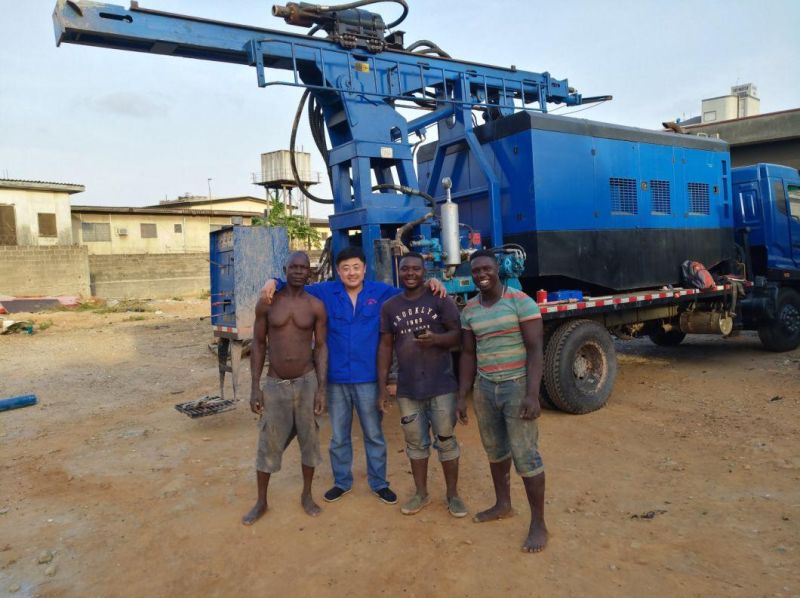

Main technical parametersT-SLY550 truck mounted water well drilling rig
       T-SLY550 truck mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular  in drilling hole for geothermal heating. It can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.Technical Parameters

Bore Diameter(mm)	115-400
Bore Depth(m)	220-400
Work  Pressure (Mpa)	1.05-3.5
Air Consumption( m³/min)	16-40
Drill rod length(m)	3
Drill rod diameter(mm)	76/89
Dimension(mm)	8900*2100*3300
Total Weight( T)	12
Max Lifting force(T)	12
Rotation Torque( Nm)	3900
Rotation Speed(r/min)	0-100
Truck chassis	DONGFENG
Drive form	4*2

R F Q:

1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.

2. The time of delivery: Deliver the products within 2 days after receiving the total price.

3. The quotation validity date:40 days;  Machine manufacturing time: 30 days;
