• Model NO.：DR-130
• Drilling Way：Rotary
• Type：Crawler
• Product Name：Dr-130 Rotary Drilling Rig
• MOQ：1 Set
• Keyword：Pile Driver
• Color：Customized
• Engine：Cummins
• Power：205HP
• Drill Rod：Kelly Bar
• Drilling Tools：Two Drill Bit for Free
• Drilling Bit：Auger,Bucket,Core Drill Bit and So on
• Hydraulic System：Kawasaki Double Pump
• Chassis Length：4200mm
• Track Width：600mm
• Weight：30t
• Rotating Speed：10-30rpm
• Drilling Depth：5-30m
• Transport Package：Container
• Specification：11500*2800*3400mm
• Trademark：Yahe heavy industry
• Origin：China
• HS Code：8430509000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. DR-130 Drilling Way Rotary Type Crawler Product Name Dr-130 Rotary Drilling Rig MOQ 1 Set Keyword Pile Driver Color Customized Engine Cummins Power 205HP Drill Rod Kelly Bar Drilling Tools Two Drill Bit for Free Drilling Bit Auger,Bucket,Core Drill Bit and So on Hydraulic System Kawasaki Double Pump Chassis Length 4200mm Track Width 600mm Weight 30t Rotating Speed 10-30rpm Drilling Depth 5-30m Transport Package Container Specification 11500*2800*3400mm Trademark Yahe heavy industry Origin China HS Code 8430509000 Production Capacity 10 Sets/Month

Product Description

 Mini Rotary Portable Hydraulic Water Well DR-130 Drilling Rig
Product Details
 Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling even rotary drilling depth is 5~50m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1800mm.

Parameter

Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	33m
Diamension (mm)	11500X2800X3400mm
Total weight (t)	2T
Power head max output torque (KN.m)	130KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	205hp ,cummins ,water cooling ,turbo charger

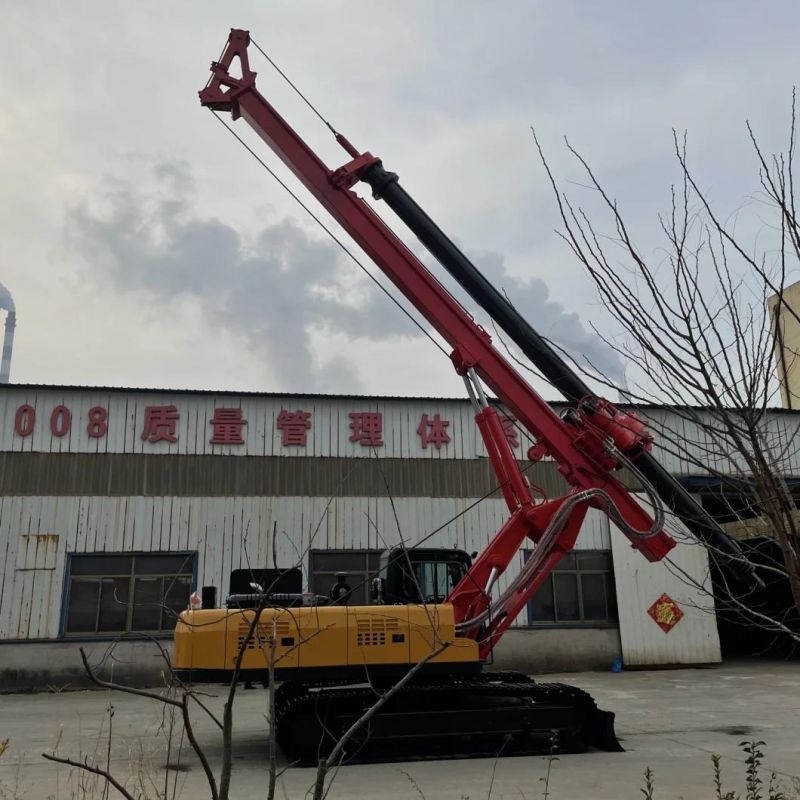

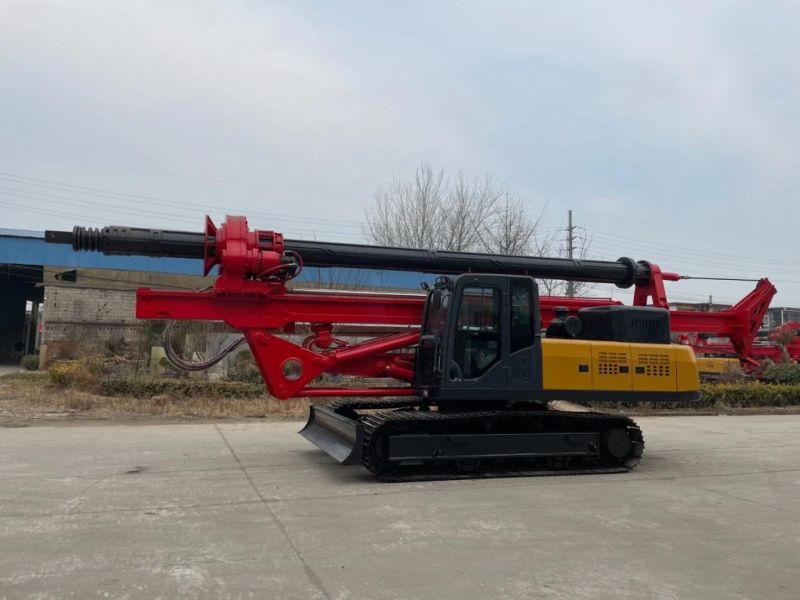

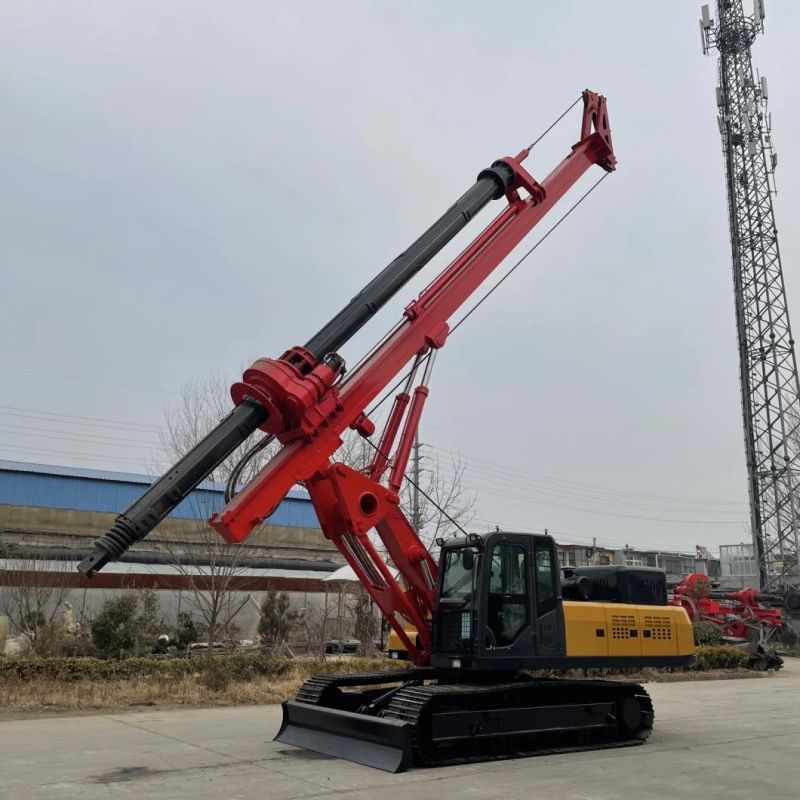

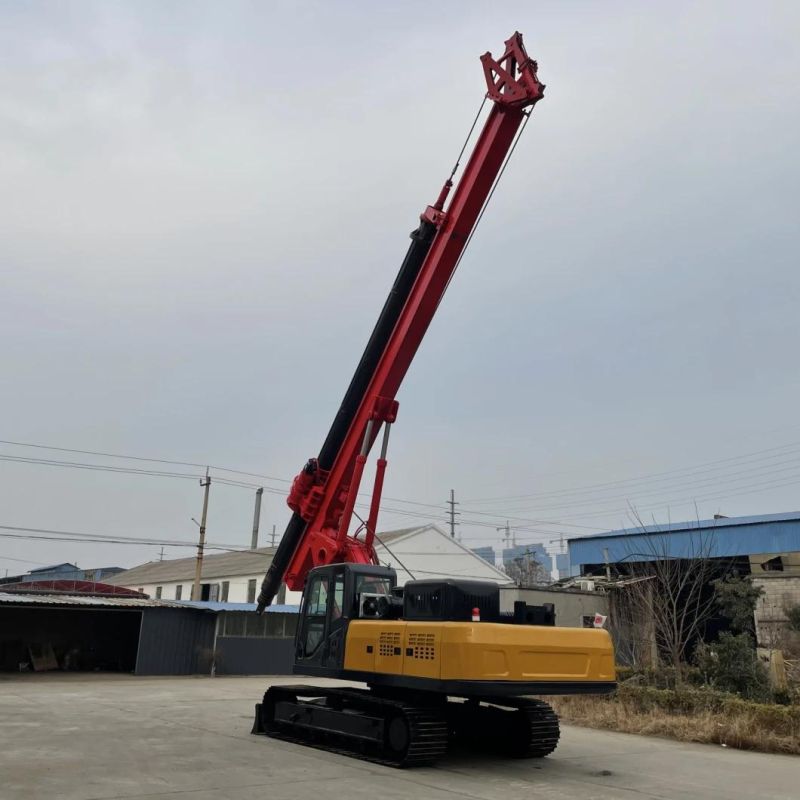

Machine photo



Certification

At present, our drilling rig has been awarded various international certificates, which support the verification!



Company profile

    Shandong tenggong International Trade Co., Ltd. is a modern trading company, located in the hometown of Mozi - Shandong Tengzhou. convenient transportation. Our staff are experienced, committed to strict quality inspection and thoughtful customer service, and can discuss customer needs at any time to ensure customer satisfaction. The main sales products are rotary drilling rig, pile driver, CFA screw drill, drilling tools and other construction machinery products.
    It is widely used in urban construction, various highways, railways and other government projects. And won the trust and praise of the majority of users, products not only sell well in small domestic provinces and cities, but also exported to Australia, the Middle East, South America, Southeast Asia, the Russian Federation, Africa and other countries and regions and more than 30 countries. At the same time, we also undertake OEM and ODM orders. Please feel free to contact our customer service center and let us know your purchase requirements, whether you are choosing products from our existing product catalog or seeking help in engineering application!
  Welcome to our factory, looking forward to establishing long-term cooperation with you!


Customer Photo

Exhibition

Transport


FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
