• Model NO.：HZ-200YY
• Drilling Way：Rotary

Basic Info.

Model NO. HZ-200YY Drilling Way Rotary

Product Description

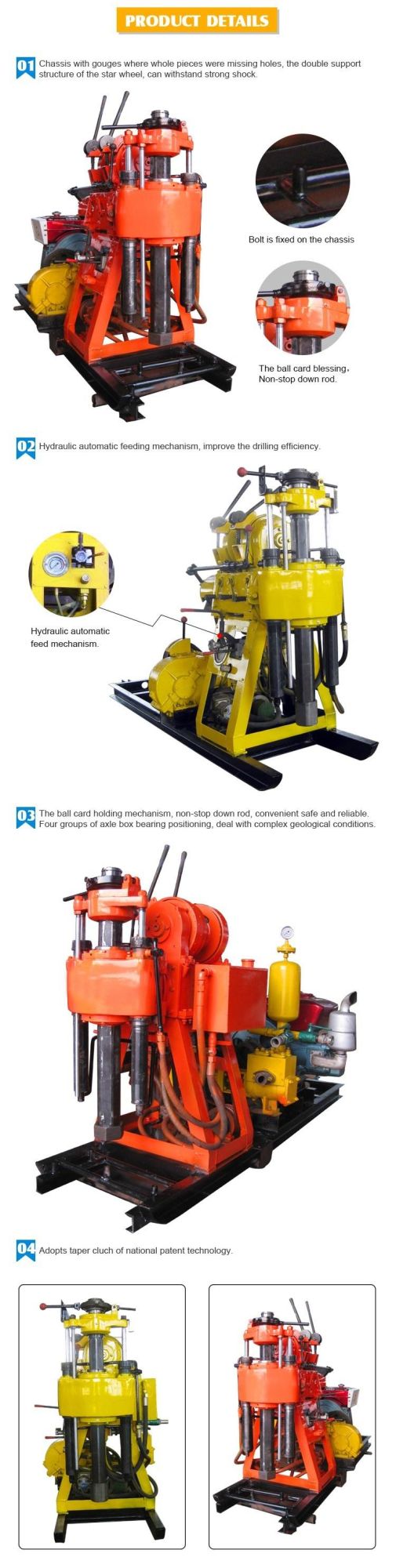

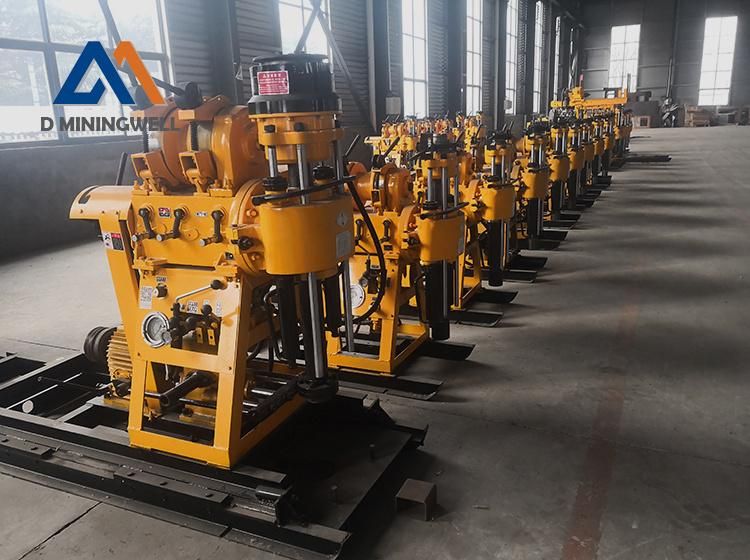

Dminingwell HZ-200YY 200m depth core mining drilling rig hot sale portable core drill rig geological core drill rig
Dminingwell HZ-200YY 200m depth core mining drilling rig hot sale portable core drill rig geological core drill rig

Model	HZ-130Y/130YY	HZ-180Y/180YY	HZ-200Y/200YY
Drilling depth(m)	130	180	200
Open hole diameter(mm)	220	220	325
End hole diameter(mm)	75	75	75
Drill rod diameter(mm)	42-60	42-60	42-60
Drill angle(°)	90-75	90-75	90-75
Matching power(kW)	13.2	13.2	15
Weight without power(kg)	560	610	1150
Dimension(mm)	2400*700*1400	2400*600*1400	2700*900*1600
Revolvtion(rpm)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Max pull force(kg)	1600	2000	2400
Pull speed(m/min)	0.41-1.64	0.35-2.23	0.12-0.95
Rope diameter(mm)	9.3	9.3	12.5
Roll capacity(m)	27	35	35
Rated load(ton)	2	2	5
Height(m)	6	6	6
Dispalcement(L/min)	95	95	145
Max pressure(Mpa)	1.2	1.2	2
ToFrequency(times/min)	93	93	93
Inlet hose diameter(mm)	51	51	51
Outlet hose diameter(mm)	32	32	32
