• Model NO.：HQZ
• Drilling Way：Impactor
• Dia of The Hole：80-300mm
• Depth of The Hole：20-30m
• Rotation Speed：0-84rmp
• Working Pressure：0.5-0.7MPa
• Specification of Drill Rod：60*1000mm
• Air Consumption：≥7m3,Min
• Lifting Power：9600n
• Weight：500kg
• Motor Power：4kw
• Capacity (M³/Min)：9
• Transport Package：Wooden Case
• Specification：CE, SGS
• Trademark：HW
• Origin：Jining, China
• HS Code：8430390000
• Production Capacity：50000set,Year

Basic Info.

Model NO. HQZ Drilling Way Impactor Dia of The Hole 80-300mm Depth of The Hole 20-30m Rotation Speed 0-84rmp Working Pressure 0.5-0.7MPa Specification of Drill Rod 60*1000mm Air Consumption ≥7m3/Min Lifting Power 9600n Weight 500kg Motor Power 4kw Capacity (M³/Min) 9 Transport Package Wooden Case Specification CE, SGS Trademark HW Origin Jining, China HS Code 8430390000 Production Capacity 50000set/Year

Product Description

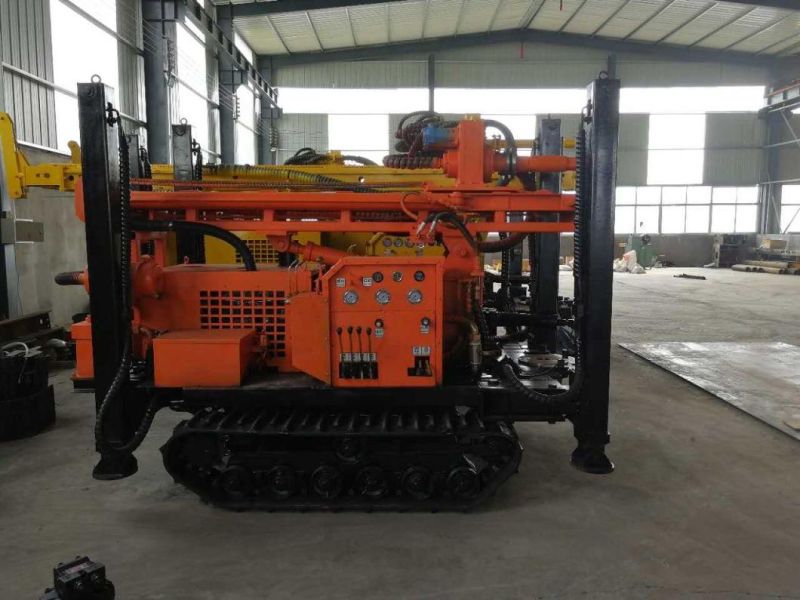

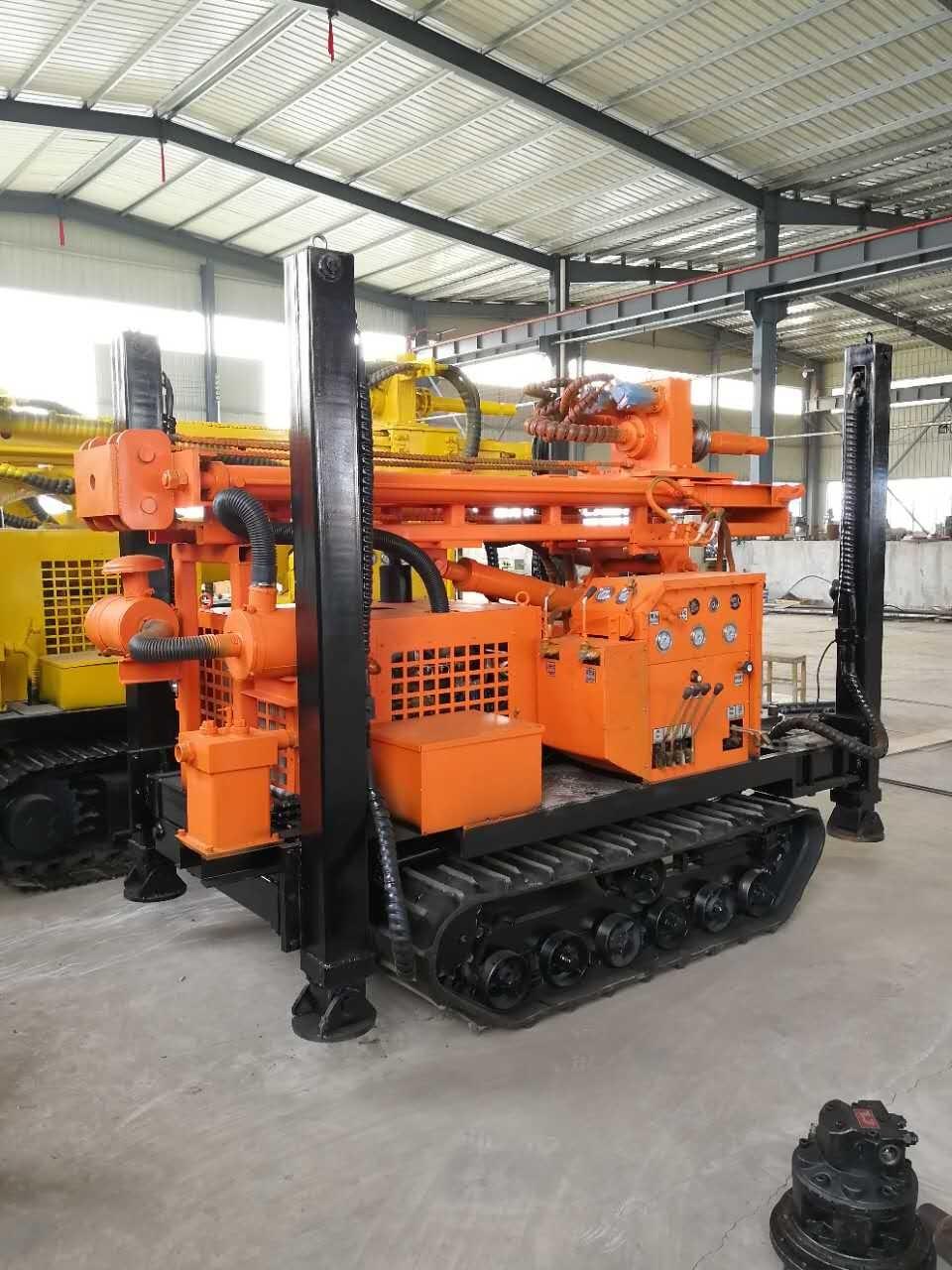

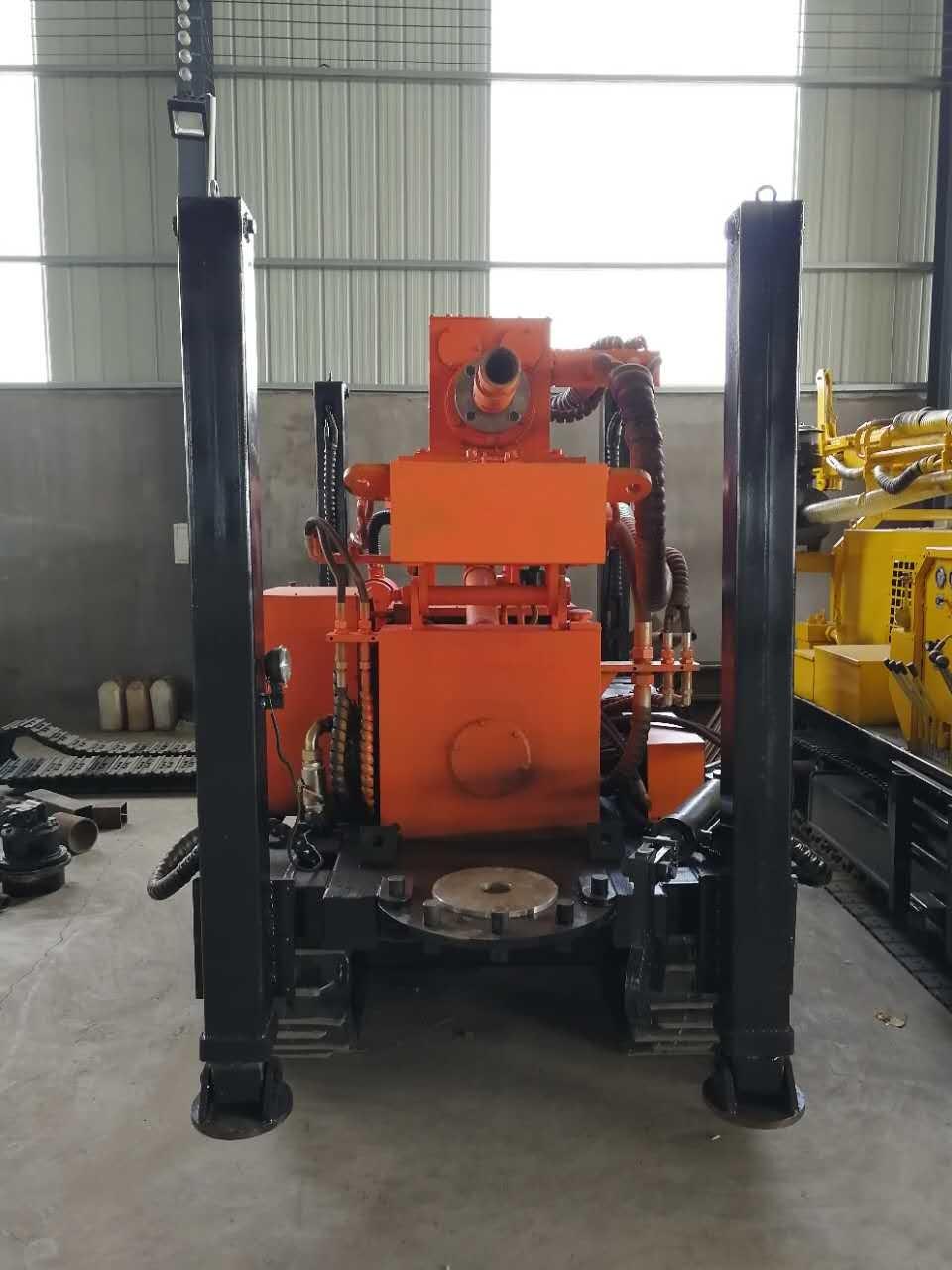

HQZ series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
This machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.


Model	HQZ150L	HQZ180L
(T )Overall weight	3.5	4.2
(mm )Dimension	3400*1500*2400	3800*1700*2350
(mm )Drilling diameter	130-245	130-294
(m)Drilling depth	150	180
(mm )One-time advance length of the drill(mm)	3000	3000
(km/h )Traveling speed	2.5	2.5
(max )Climbing ability	25	30
(mm)Minimum Ground Clearance	250	250
(mpa ) Working Air Pressure	1.45 - 2.5	1.7-2.5
I Pl3Zrain)Air consumption	15 - 27	15-27
(kw)Main machine power	42/ Yunnei	60/ Yunnei
(rpm) Rotary Speed	38 - 80	48 - 70
(Nm )Rotary torque	4000-5000	4200-5600
