• Model NO.：SLY1100
• Drill Hole Depth：1100 Meters
• Bit Type：DTH Drill Bit, Roller Bit
• Drilling Way：Rotary
• Type：Crawler
• Air Pressure：10.5-40 Bar
• Air Consumption：16-50 M3,Min
• Engine Power：160 Kw
• Weight：18600 Kg
• for Rock：6-20 F
• Transport Package：Standard Shipping Packing
• Specification：9300MM*2100MM*3800MM
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：300 Sets, Year

Basic Info.

Model NO. SLY1100 Drill Hole Depth 1100 Meters Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Crawler Air Pressure 10.5-40 Bar Air Consumption 16-50 M3/Min Engine Power 160 Kw Weight 18600 Kg for Rock 6-20 F Transport Package Standard Shipping Packing Specification 9300MM*2100MM*3800MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Our Advantages

We are factory with 22 years history, our machine exported more than 60 countries.
We got ISO, CE certificate.

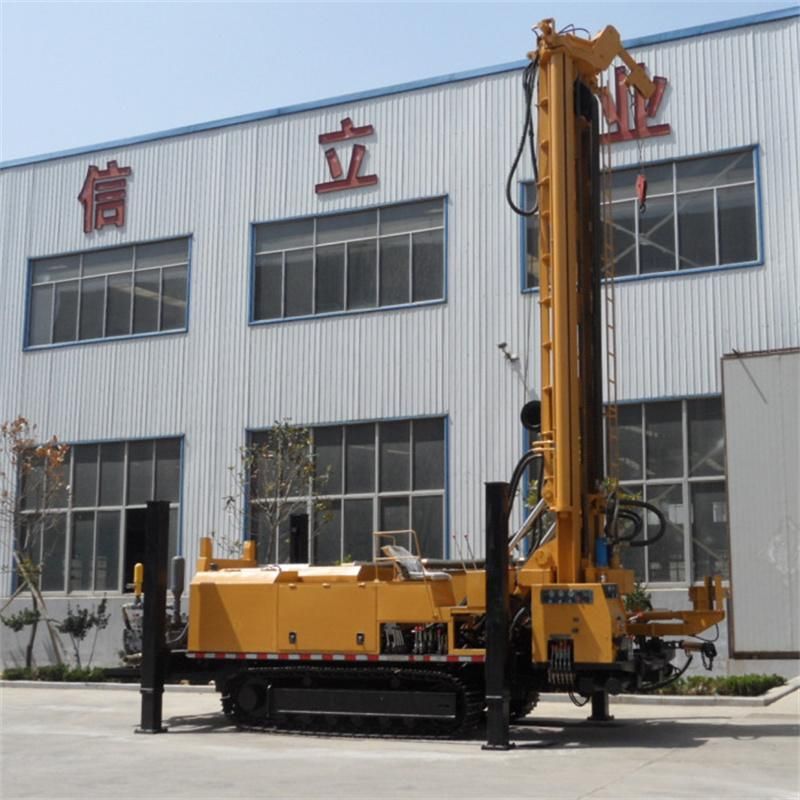

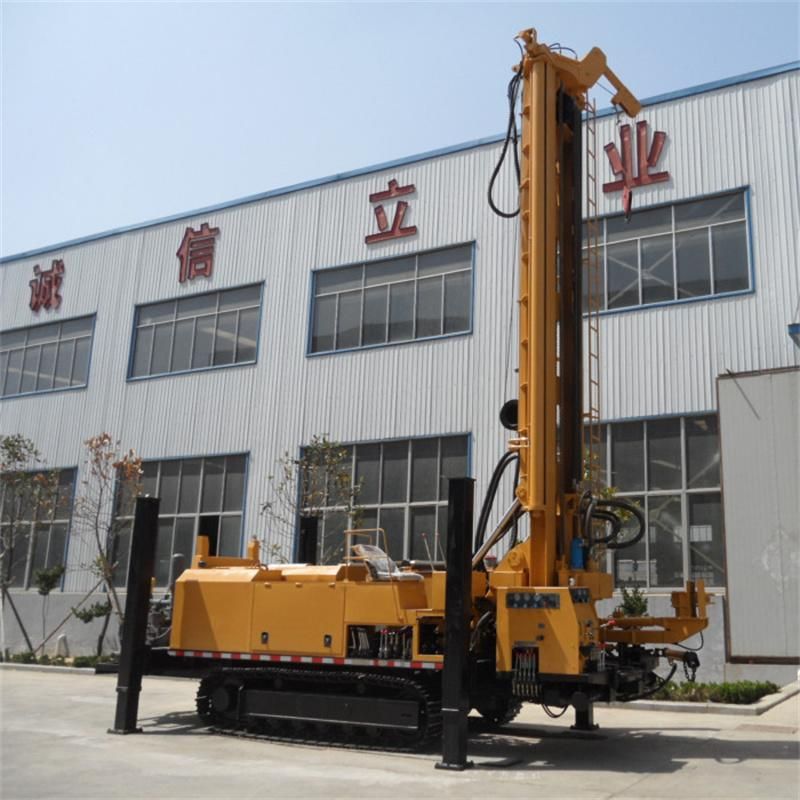

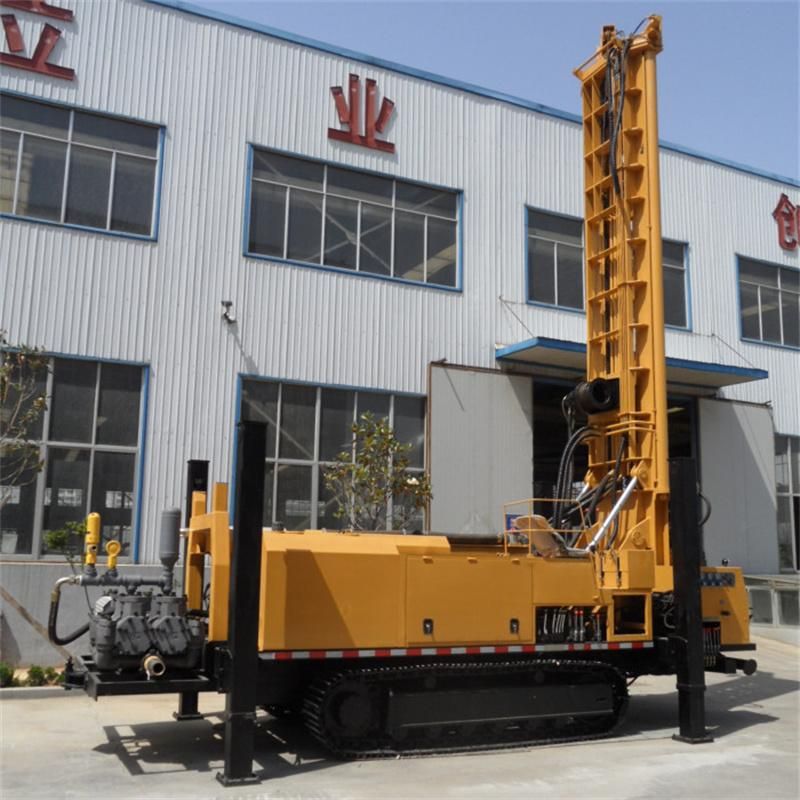

Product IntroductionSLY1100 Water Well Drilling Rig

SLY1100 crawler water well drilling rig is a new type,high efficiency and energy-saving multifunctional drilling machine, mainly used for drilling water wells, monitoring wells, geothermal air conditioning holes, anchoring, foundation and bridge pile holes drilling; the rig can adopt DTH hammer, mud pump,reverse circulation,sleeve following-up and other boring technologies, can effectively solve the problems during drilling in various terrain.

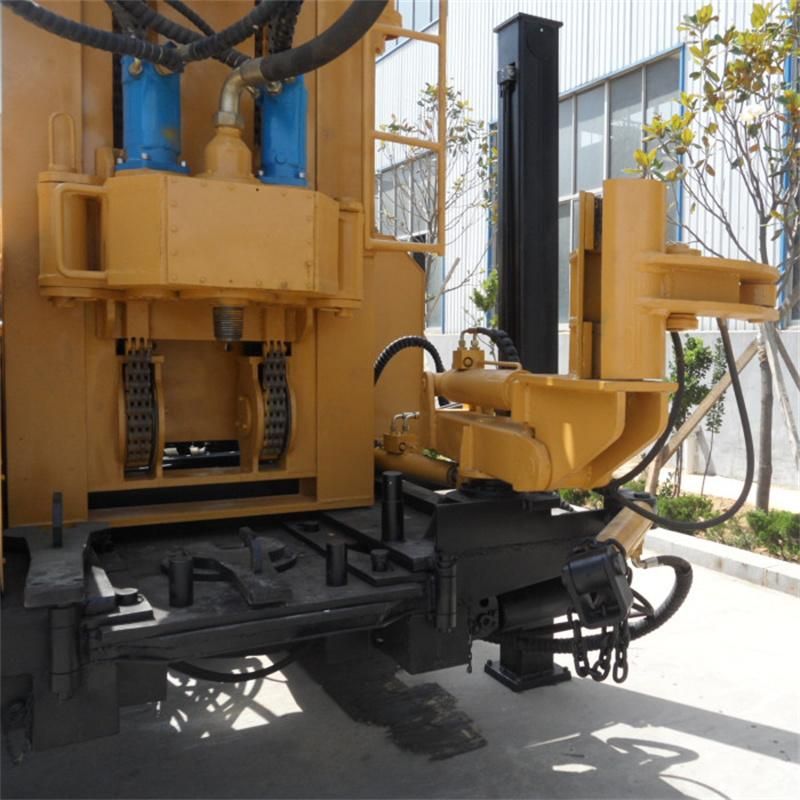

The SLY1100 drilling machine is equipped with imported large torque hydraulic rotary power head, which can be selected according to different construction requirements, greatly saving the cost of  purchasing equipment and effectively improving construction efficiency.
As for loose layer, can use roller bit drilling, mud draining, reverse circulation construction,etc, and machine hydraulic support legs have large stroke so no need extra crane for loading and unloading.


Bore diameter(mm)	115-800
Bore depth(m)	1100
Walk speed(km/h)	0-2.5
For rock(F)	6--20
Air pressure(Mpa)	1.05-4.0
Air consumption(m³/min)	16-50
Once promotion(mm)	6000
Skid max angle(°)	90
Maximum height from the ground(mm)	320
Rotation Speed(r/min)	0-100
Rotation torque(NM)	18000
Lifting power(T)	50
Climb ability(°)	25
Dimension(L*W*H)(mm)	9300*2100*3800
Weight(T)	18.6

Product Display


Company Profile




FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' OT or FR Container for 1 set.
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
